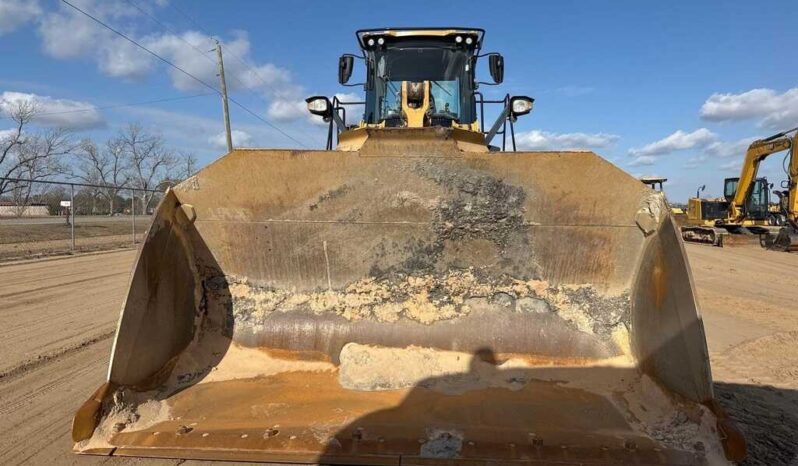

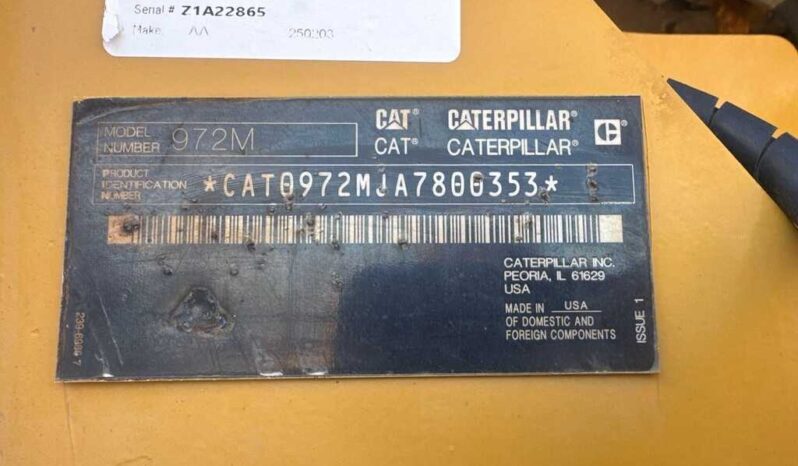

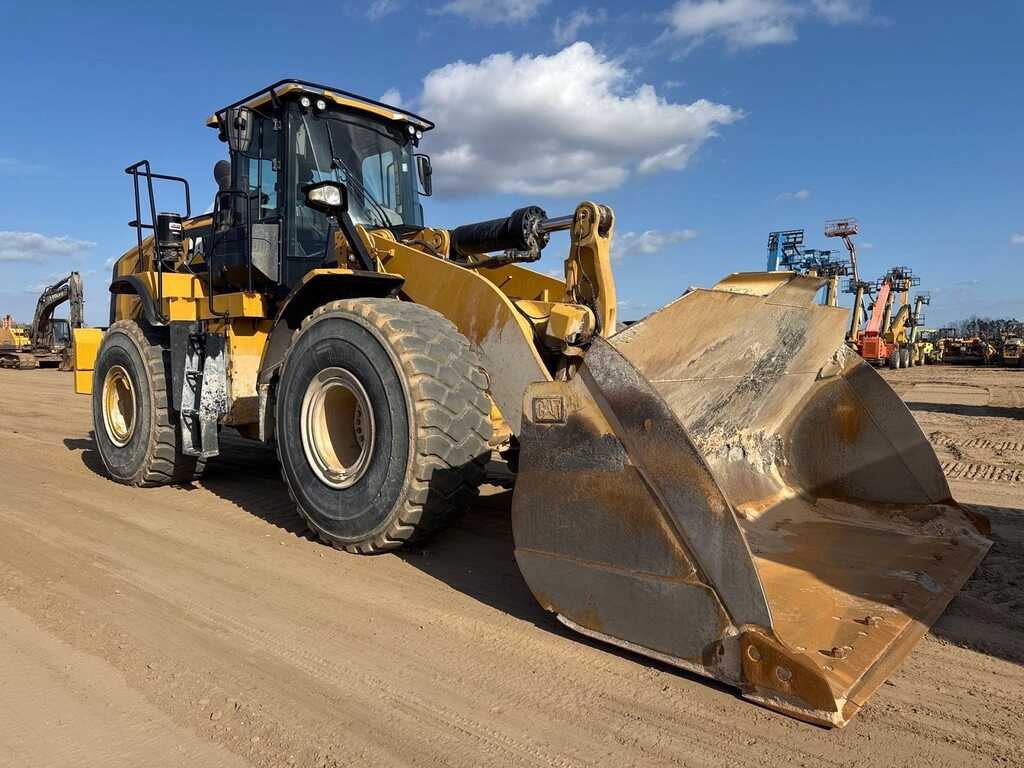

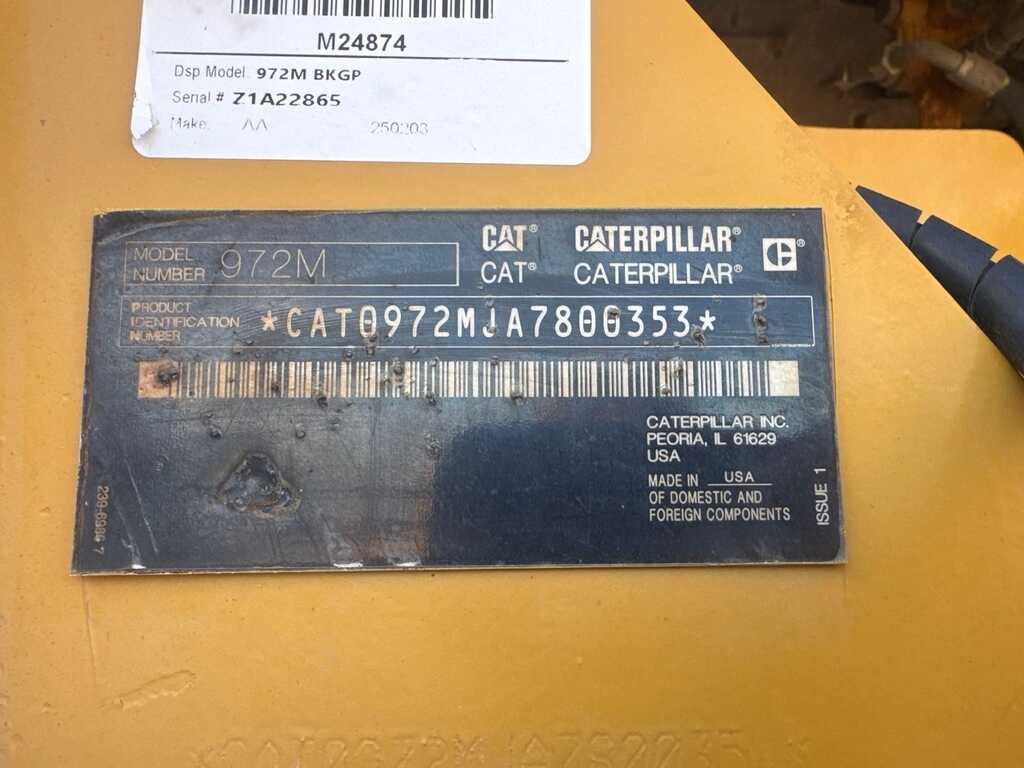

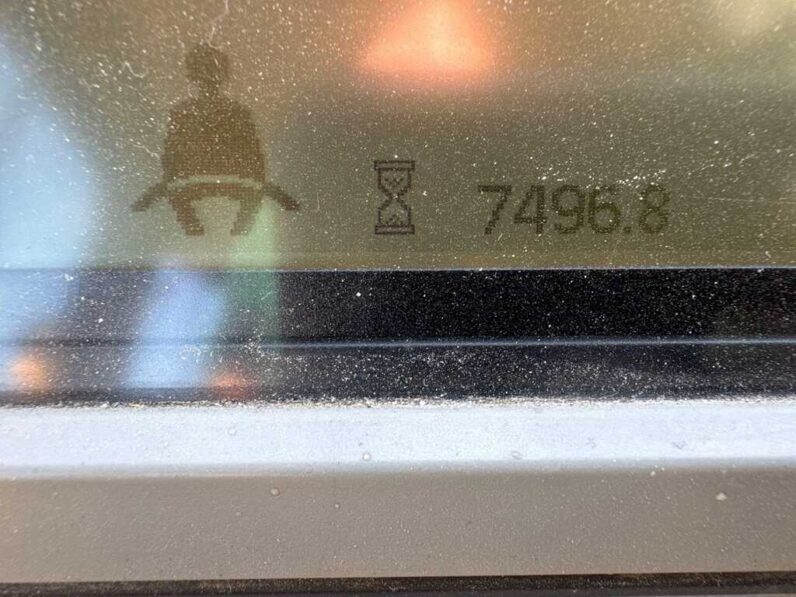

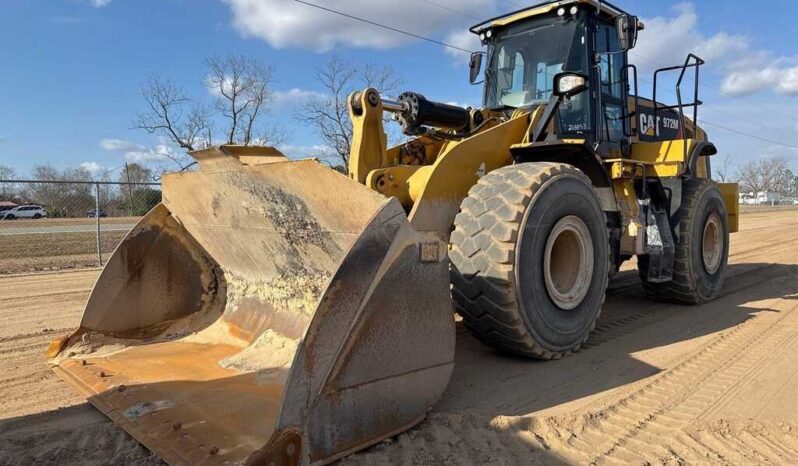

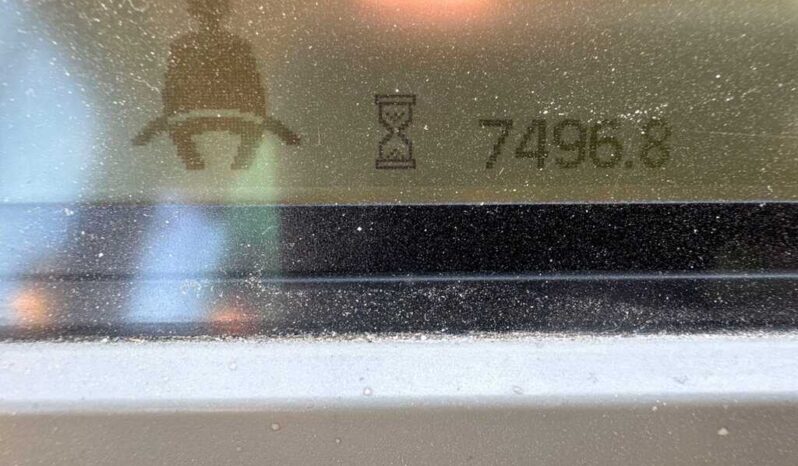

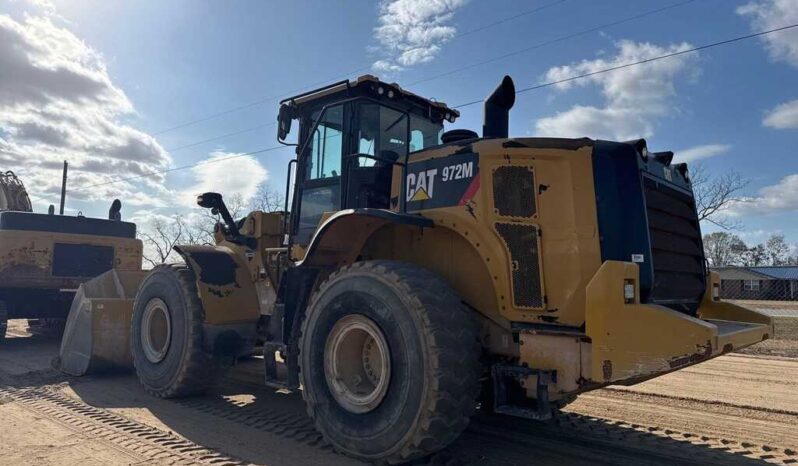

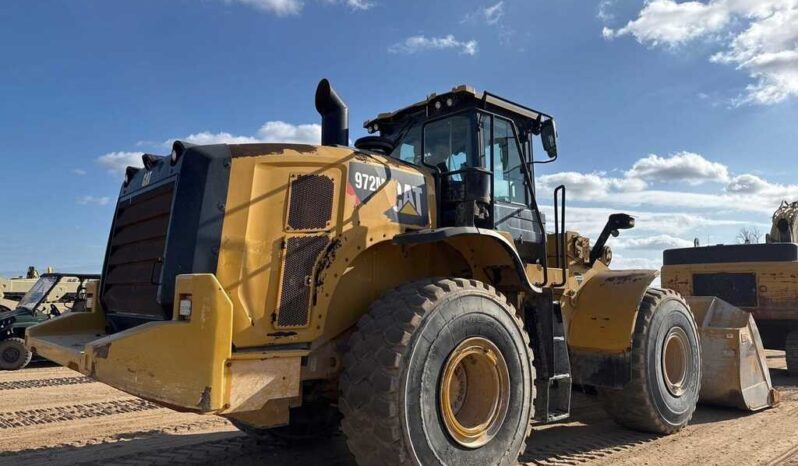

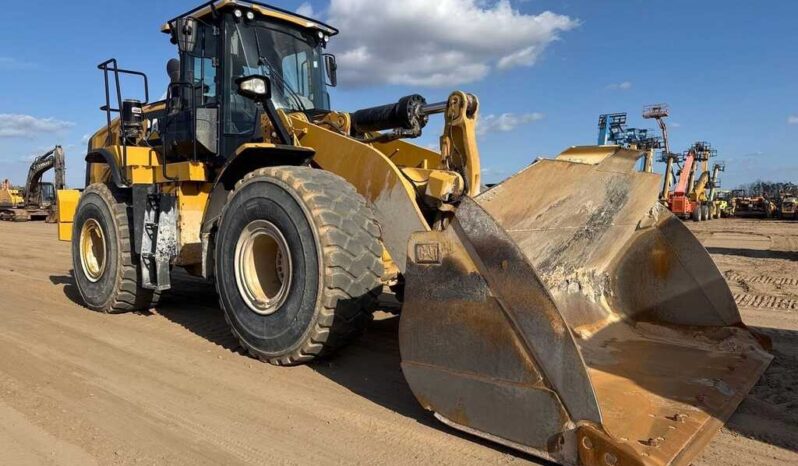

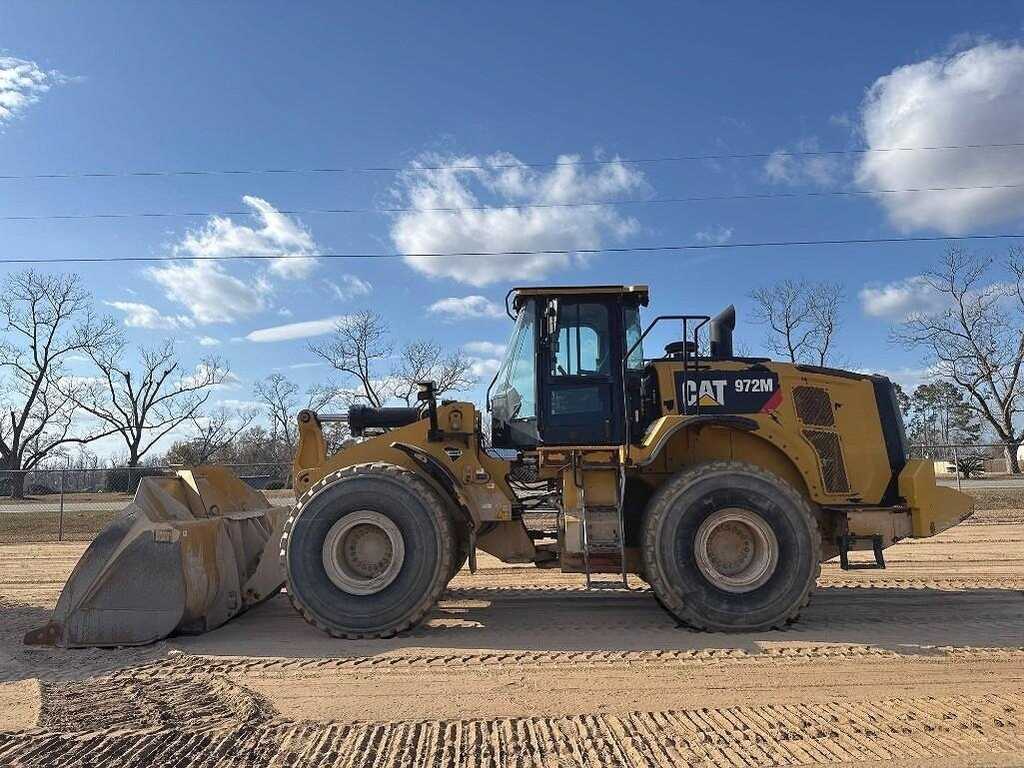

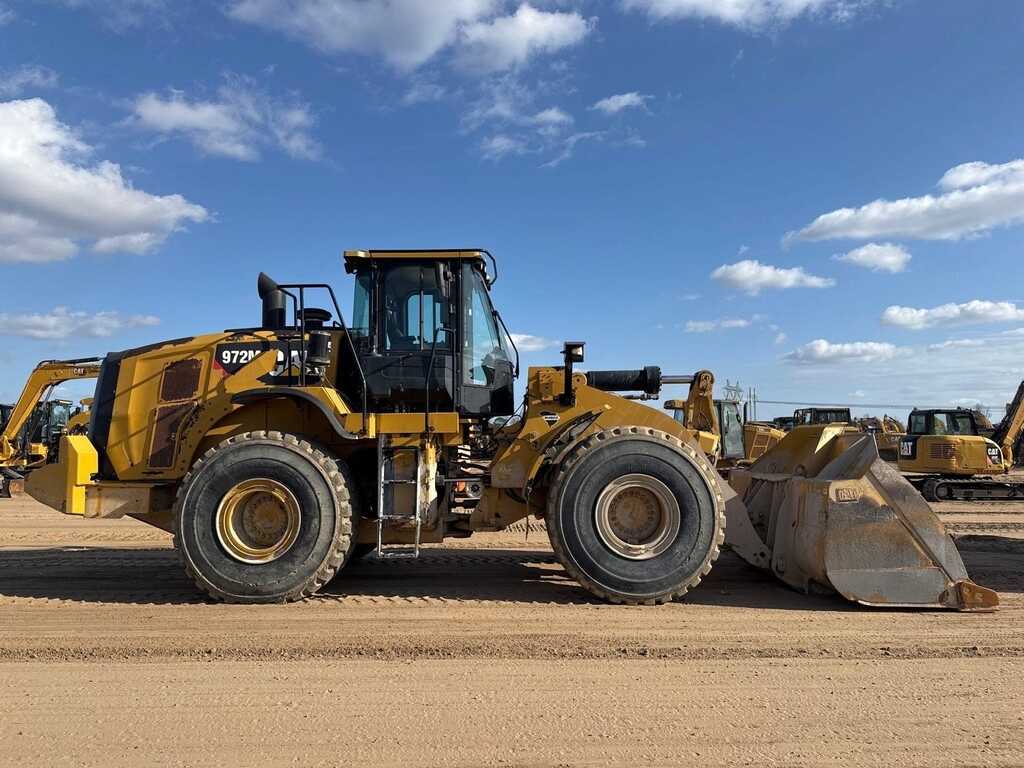

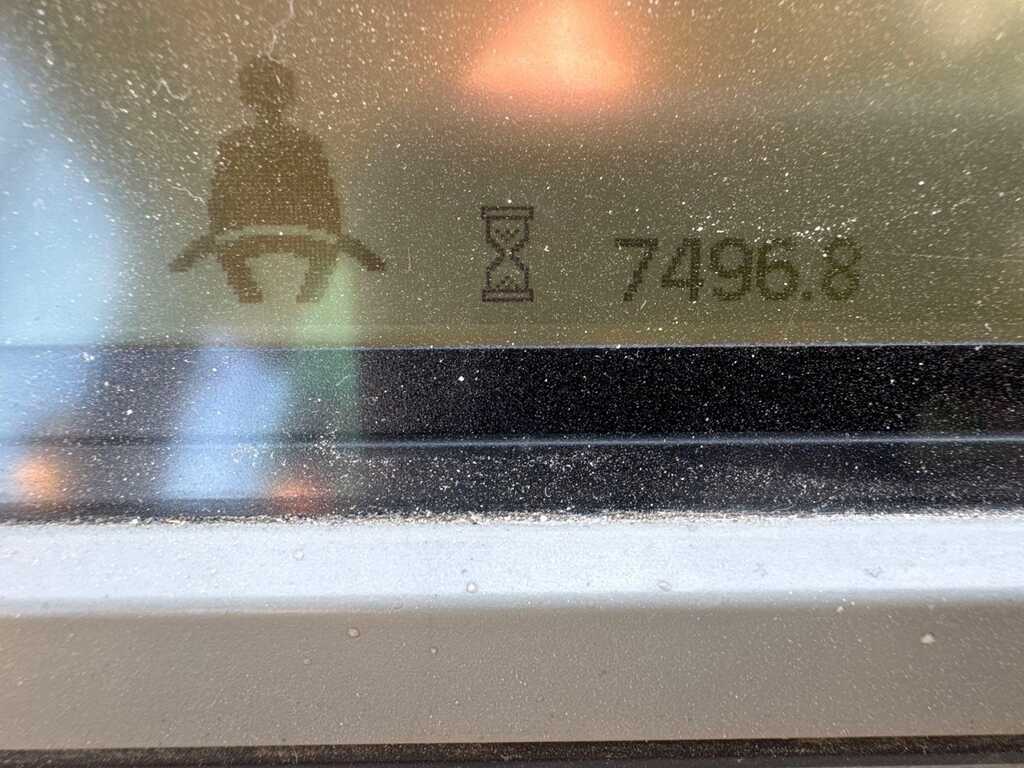

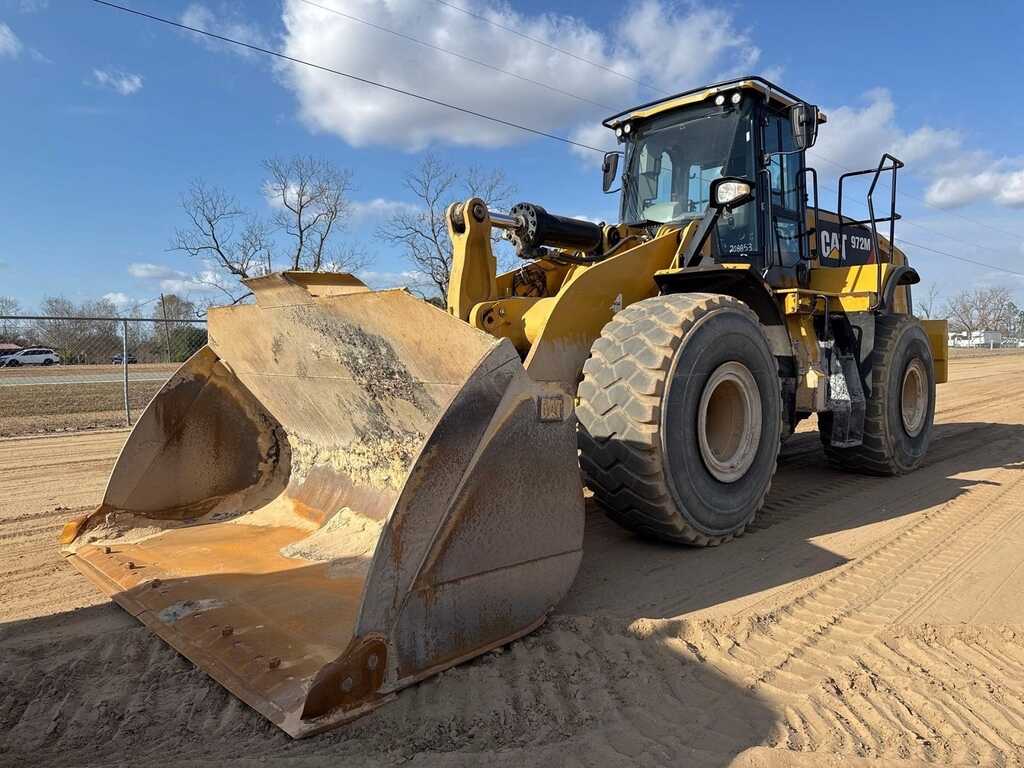

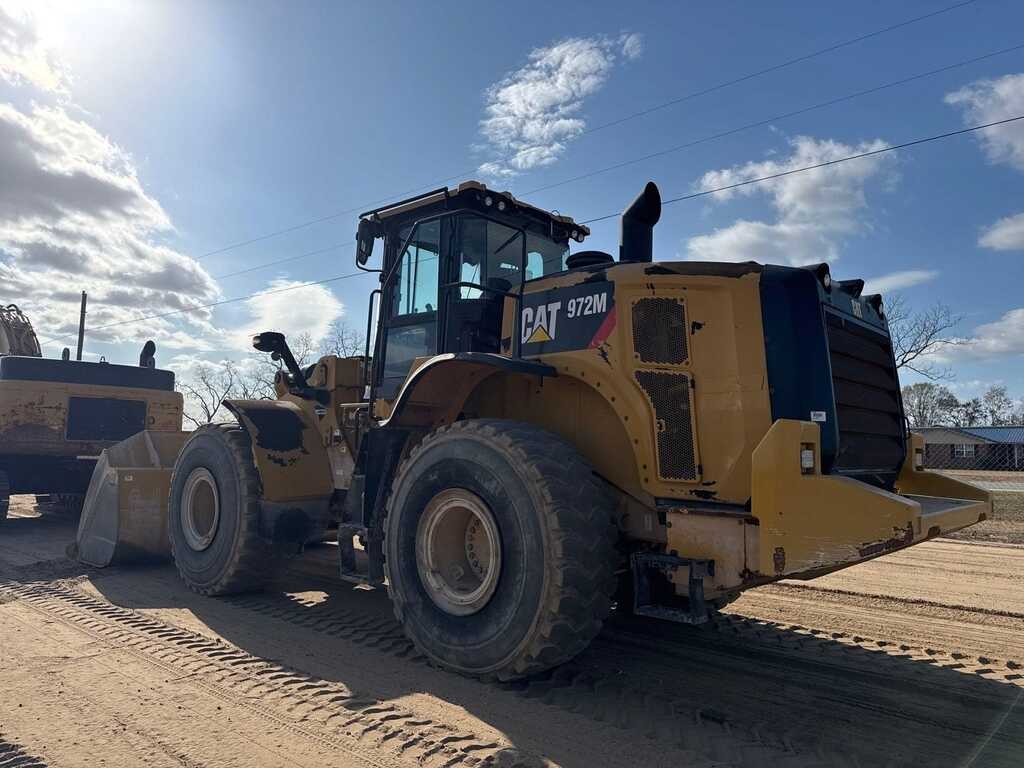

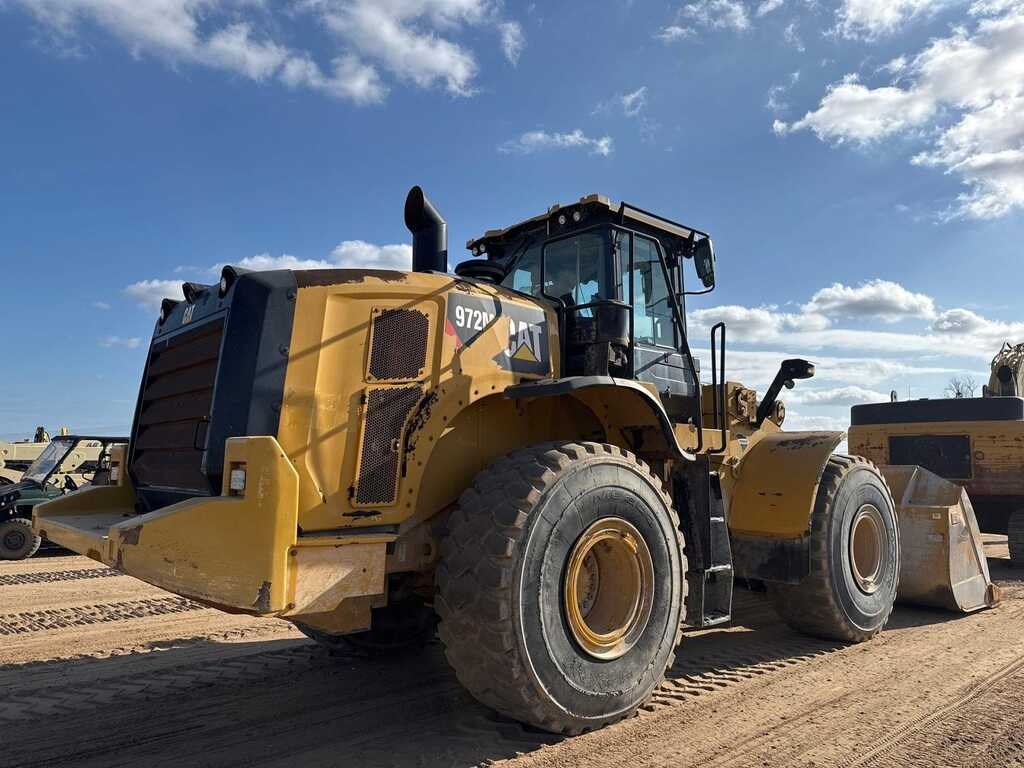

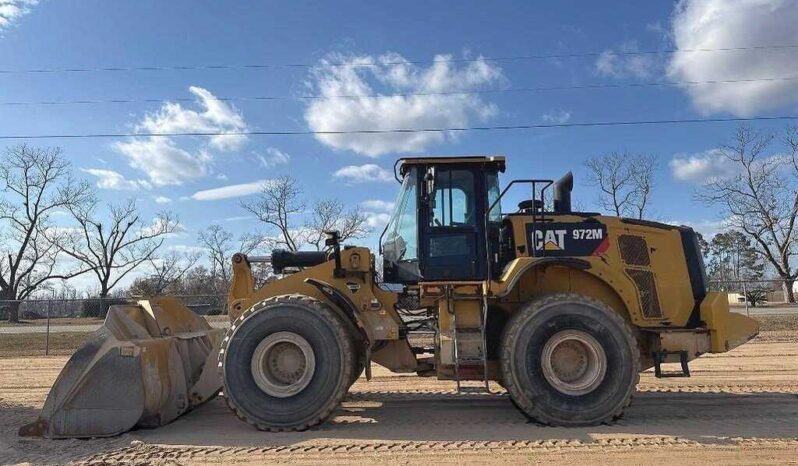

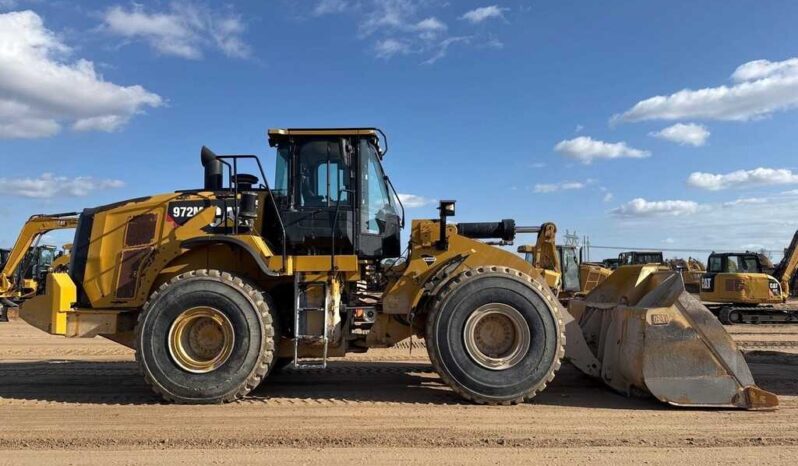

(HRS SHOW-7496), EROPS, 4WD, 126″ BUCKET, 26.5R25 TIRES, S/N-CAT0972MJA7800353
Key Overview
Bucket Capacity: 6.0 – 7.5 yd³ (4.6 – 5.7 m³)
Engine: Cat C13 ACERT™
Net Power: 429 HP (320 kW)
Operating Weight: Approximately 97,800 lb (44,360 kg)
Emissions Standard: Final Tier 4 (FT4) / EU Stage IV compliant
Powertrain
Engine Model: Caterpillar C13 ACERT™
Engine Type: Turbocharged, aftercooled diesel engine with Cat ACERT technology
Emissions System: Maintenance-free Cat Clean Emissions Module (CEM)
Net Power (ISO 14396): 429 HP (320 kW) @ 1,800 rpm
Gross Power (SAE J1995): 433 HP (323 kW)
Displacement: 12.5 L (763 in³)
Transmission: Cat Automatic with Adaptive Control System
Transmission Type: Electronically controlled powershift planetary
Gears: 4 Forward / 4 Reverse
Transmission Features: Autoshift, kickdown, and manual hold functions
Capacities & Weights

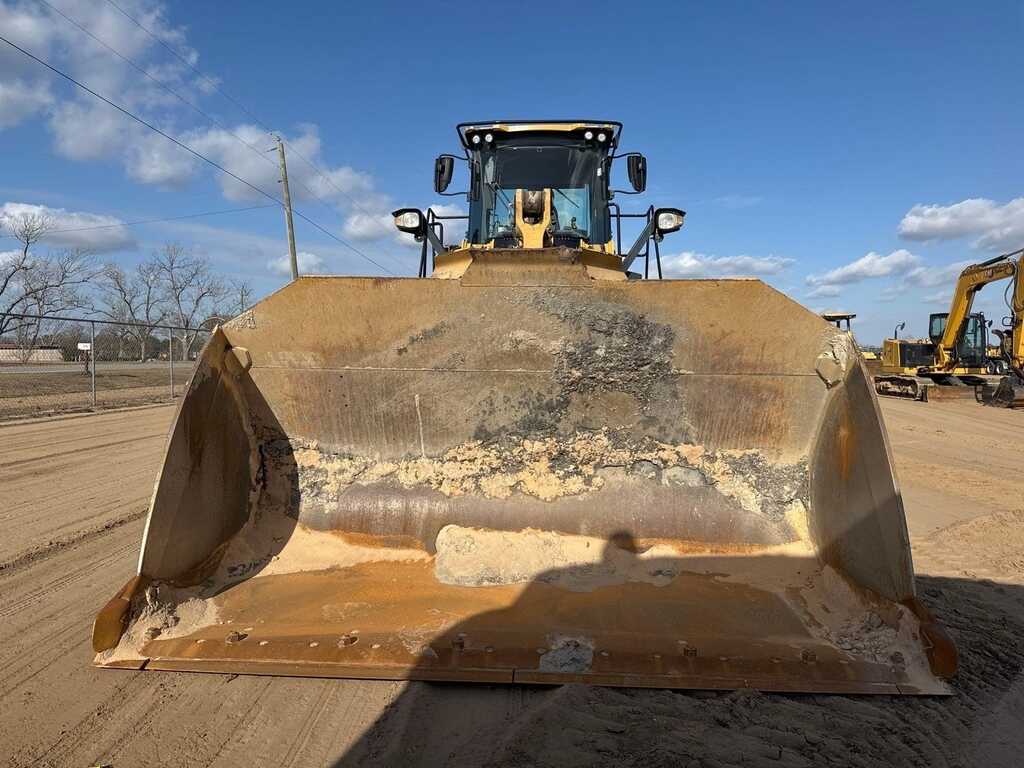

Standard Bucket Capacity: 6.0 yd³ (4.6 m³) General Purpose
Available Bucket Range: 6.0 – 7.5 yd³ (4.6 – 5.7 m³)
Operating Weight (Approx., with GP bucket): 97,800 lb (44,360 kg)
Full-Turn Static Tipping Load: 57,820 lb (26,227 kg) at 45° articulation
Breakout Force: 92,450 lb (411 kN)
Horsepower-to-Weight Ratio: 4.4 HP per ton
Fuel Tank Capacity: 200 gal (757 L)
Hydraulic System Capacity: 78 gal (295 L)
DEF Tank Capacity: 28 gal (106 L)
Performance & Dimensions
Maximum Forward Speed: 24.1 mph (38.8 km/h)
Maximum Reverse Speed: 27.1 mph (43.6 km/h)
Turning Radius (Outside Tires): 27.3 ft (8.33 m)

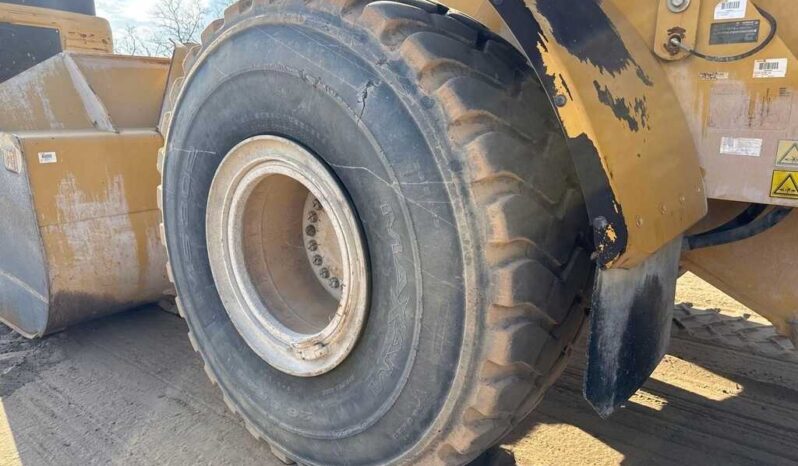

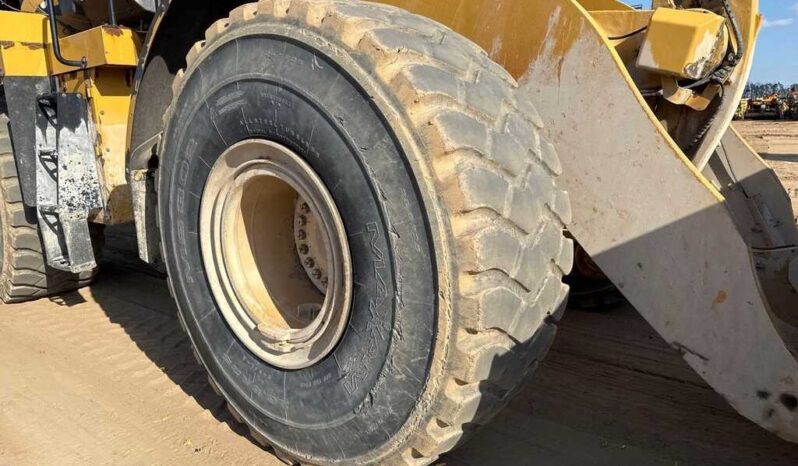

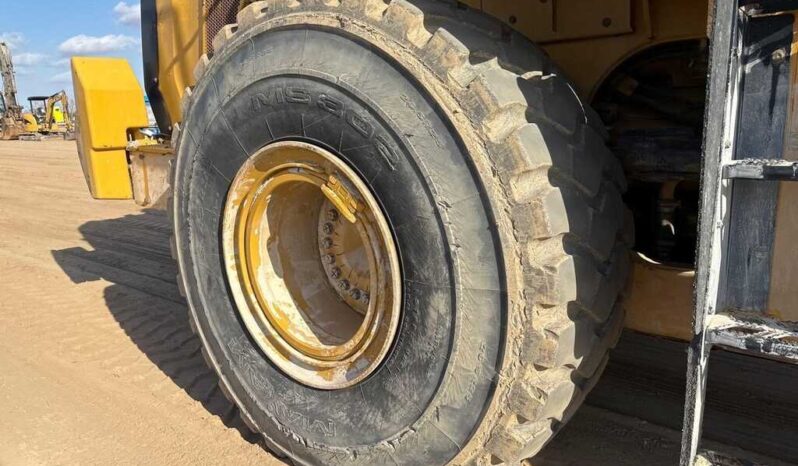

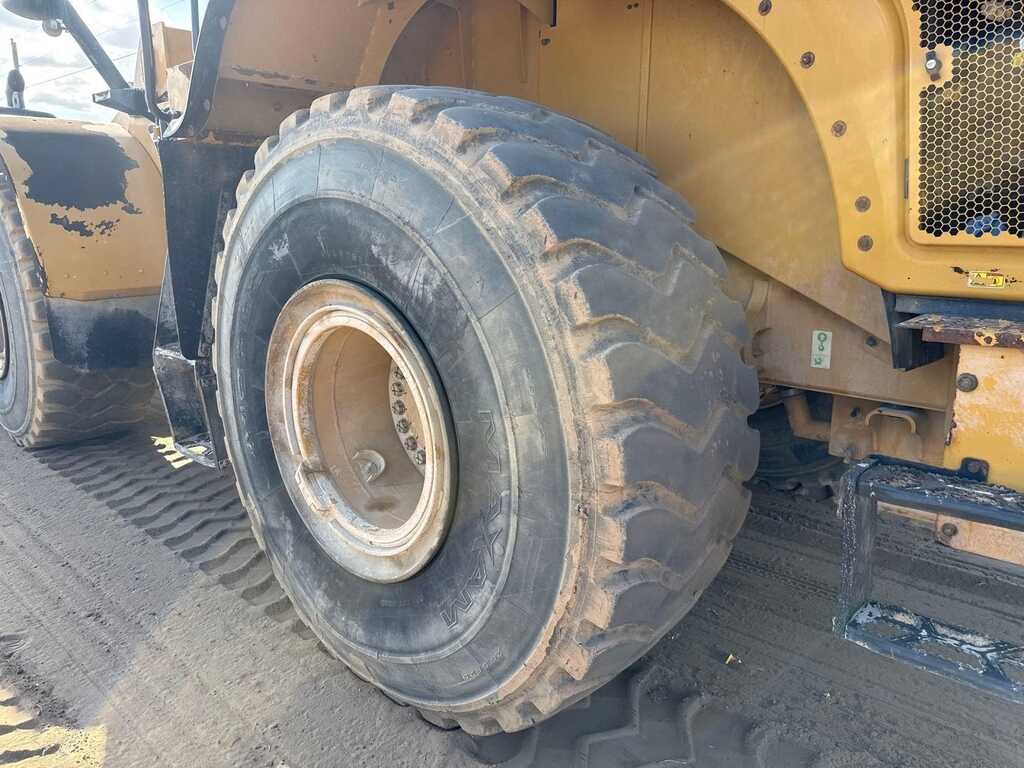

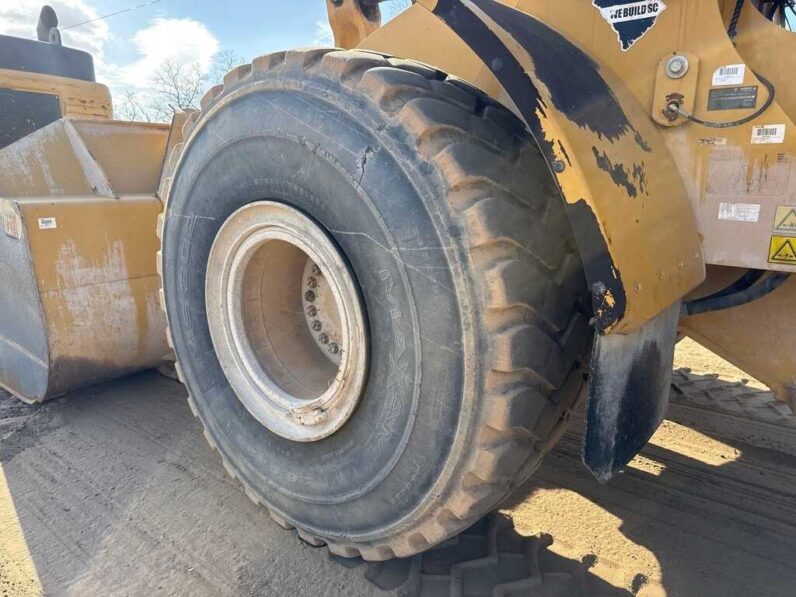

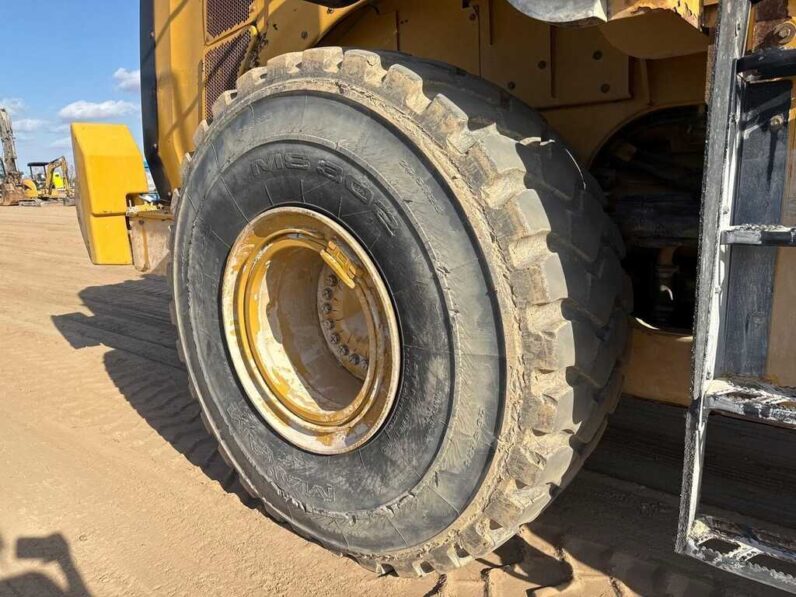

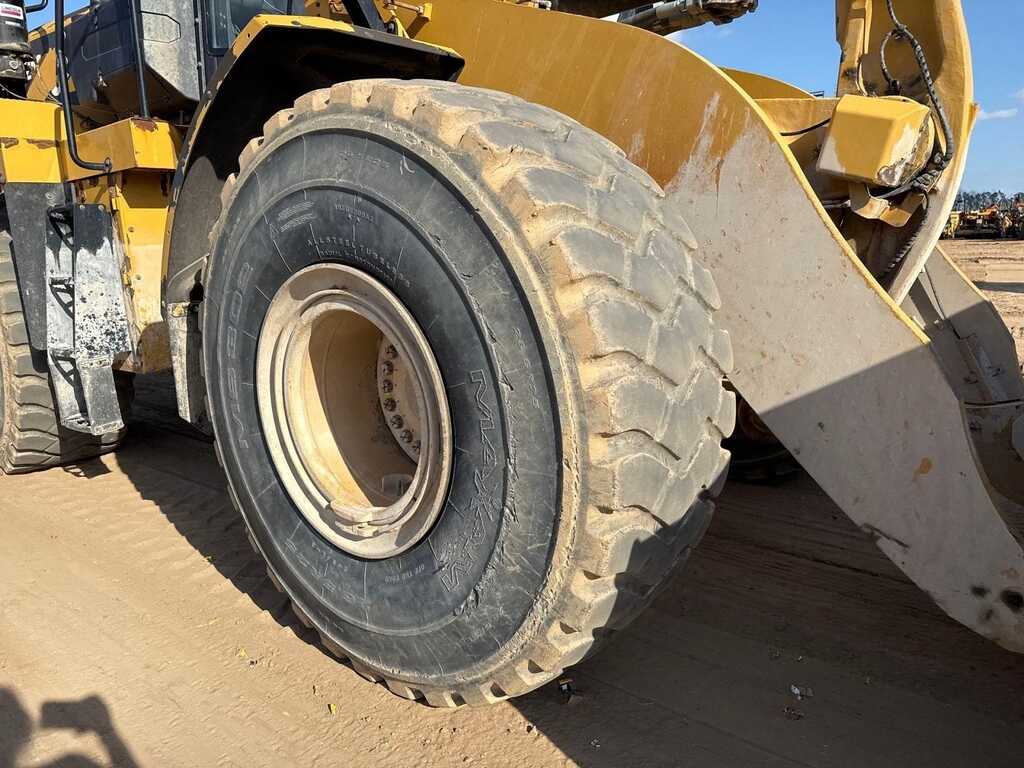

Tire Options: 29.5R29 (Rock / Quarry) or 26.5R25 (General Duty)
Hydraulic System & Braking
Hydraulic System Type: Load-sensing, pressure-compensated (PCLS)
Implement Pump Flow: 128 gal/min (485 L/min)

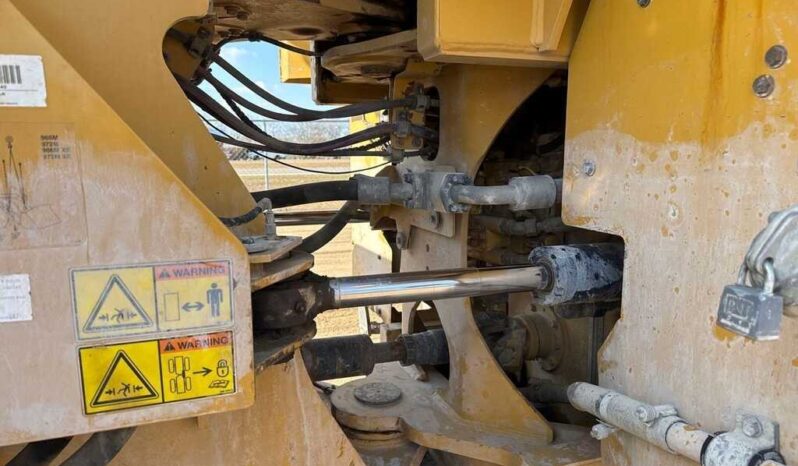

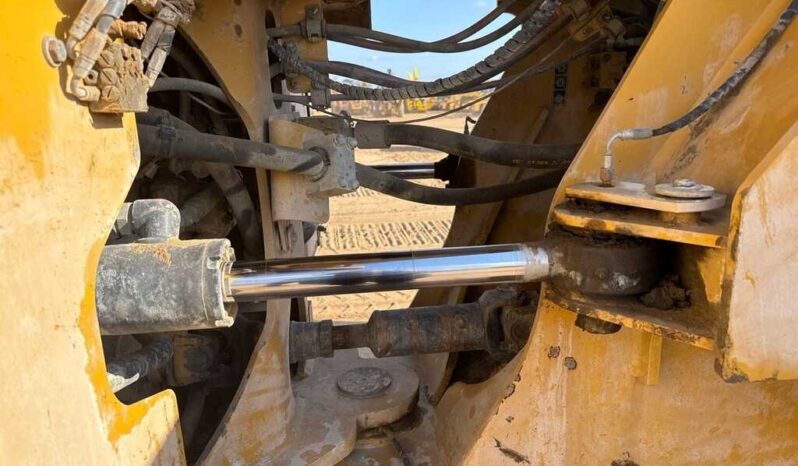

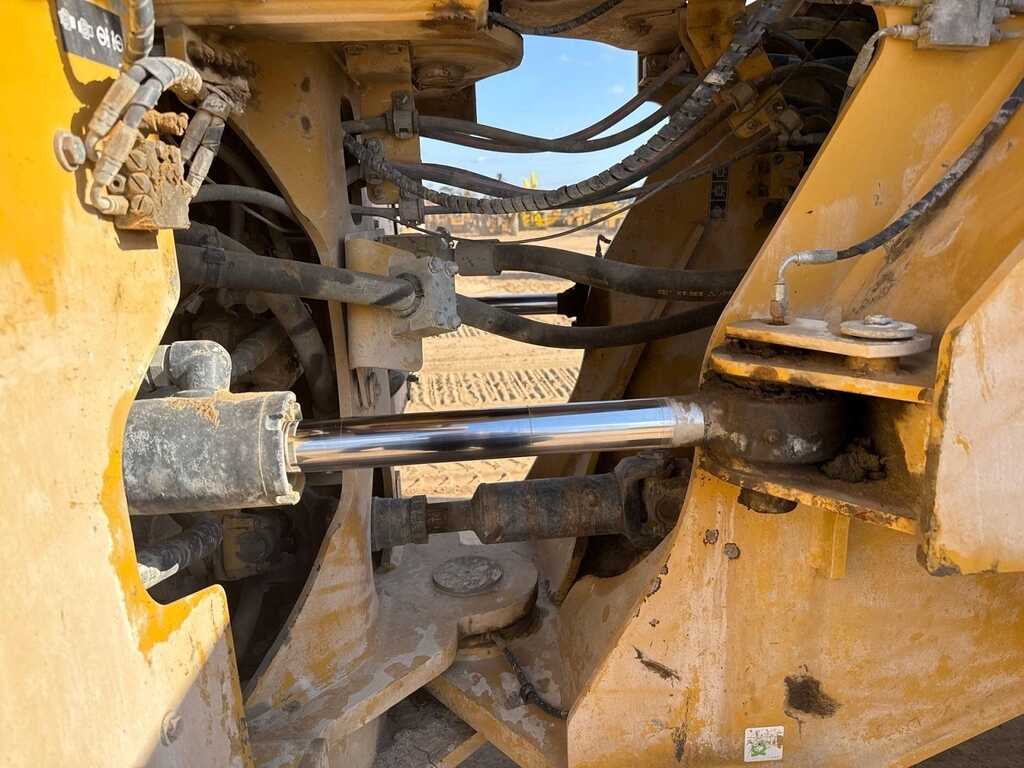

Steering: Full hydrostatic power steering
Service Brakes: Oil-cooled, multiple disc brakes on all four wheels
Parking / Emergency Brake: Spring-applied, hydraulically released
Operator Environment & Technology (M-Series)

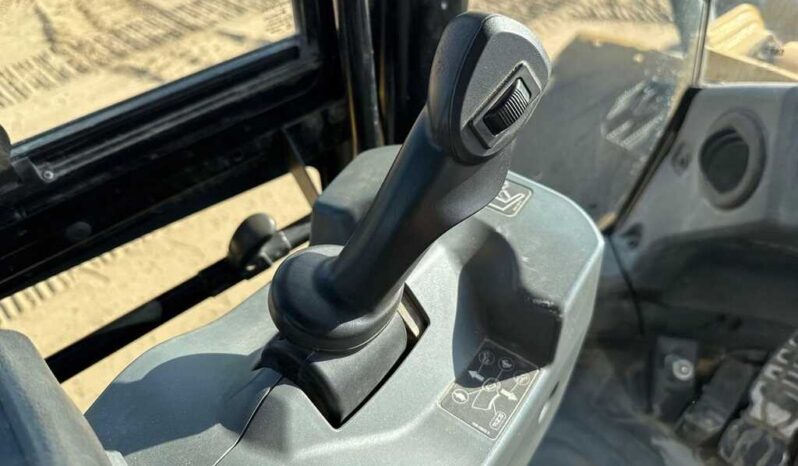

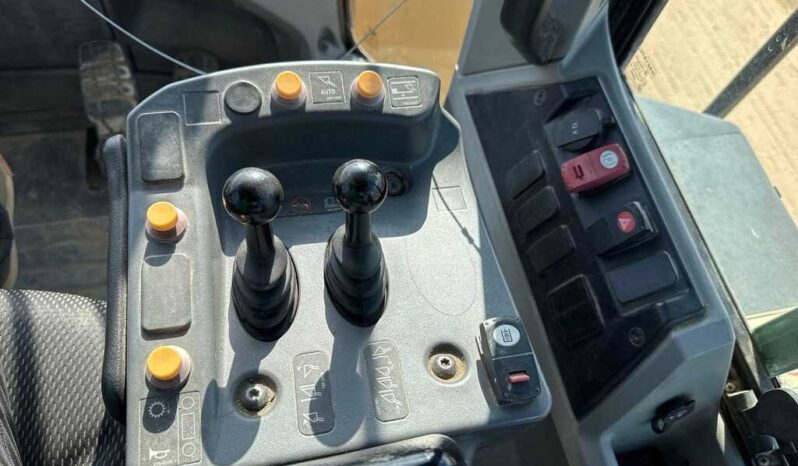

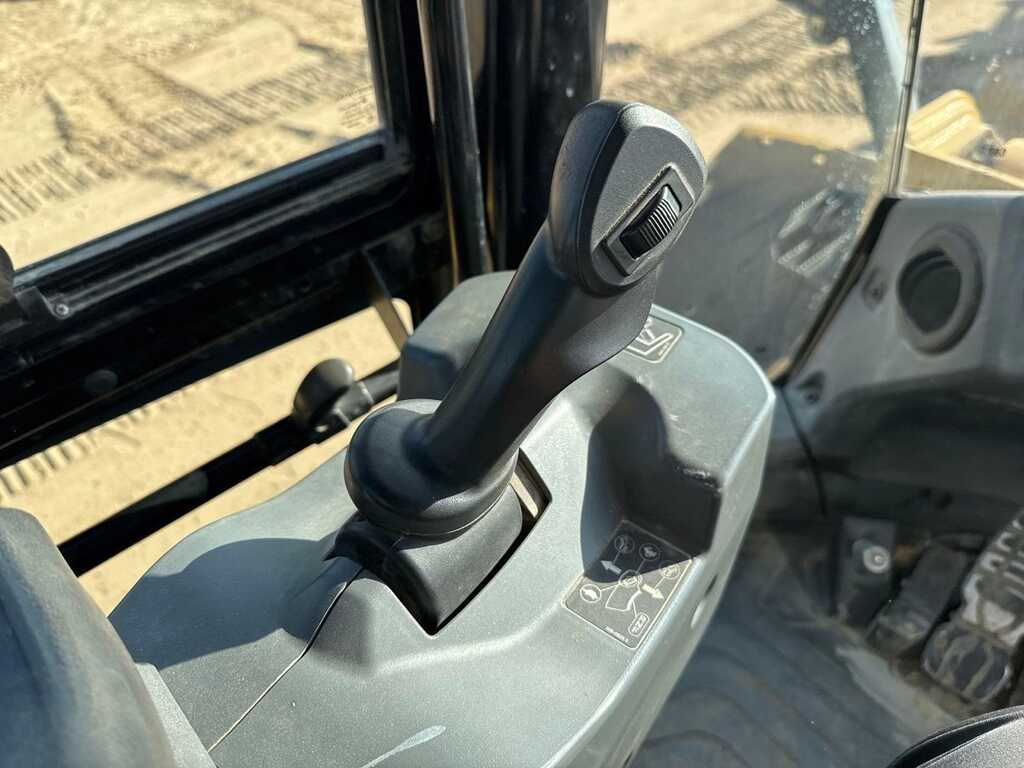

Command Control Steering (Optional): Low-effort joystick steering system

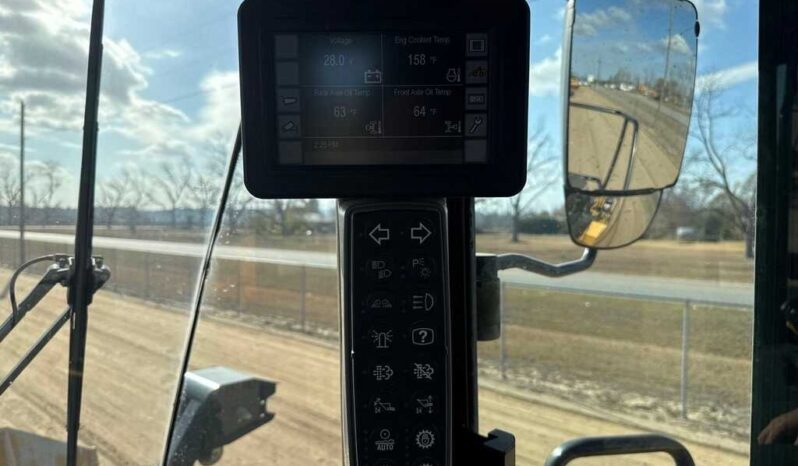

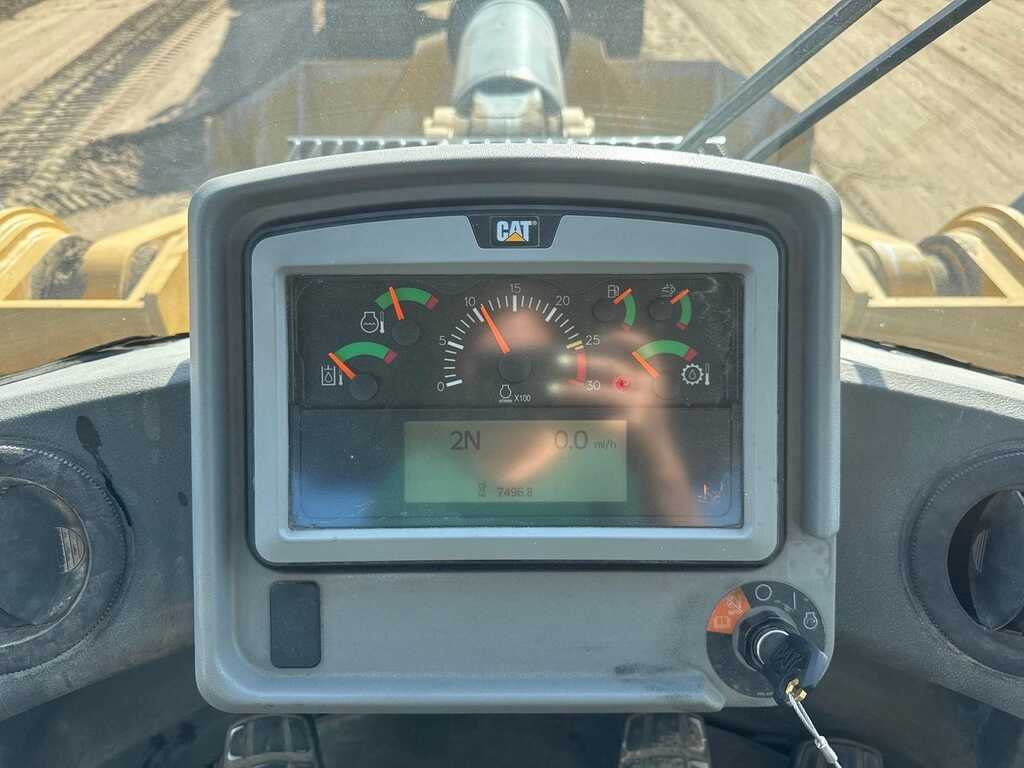

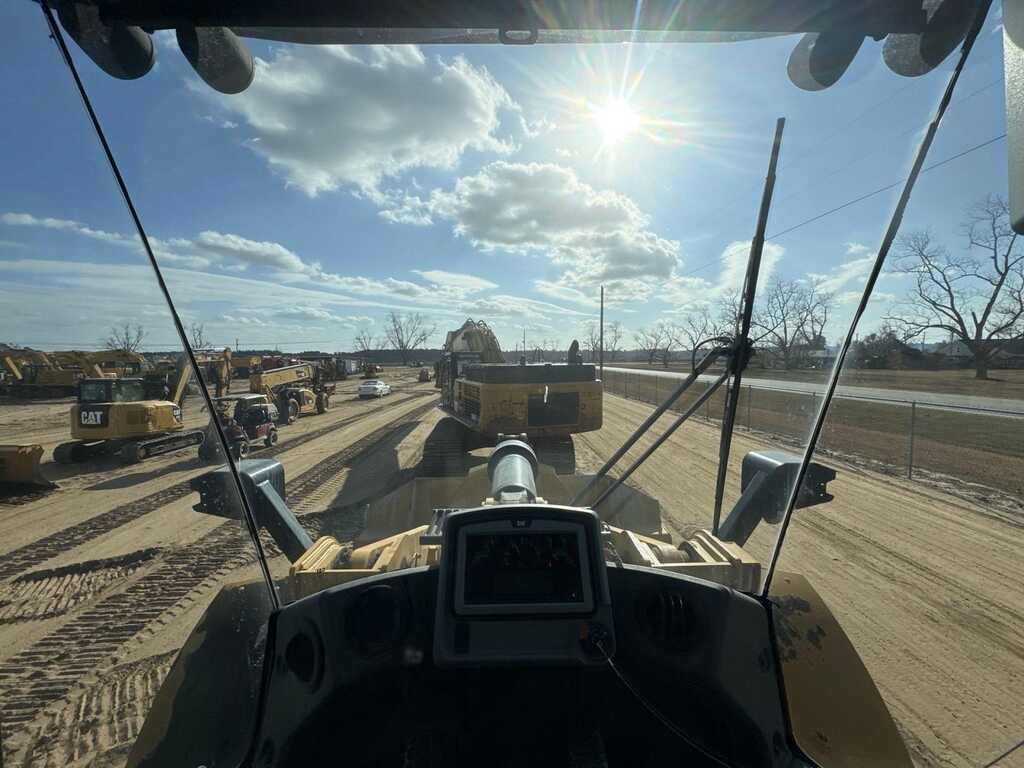

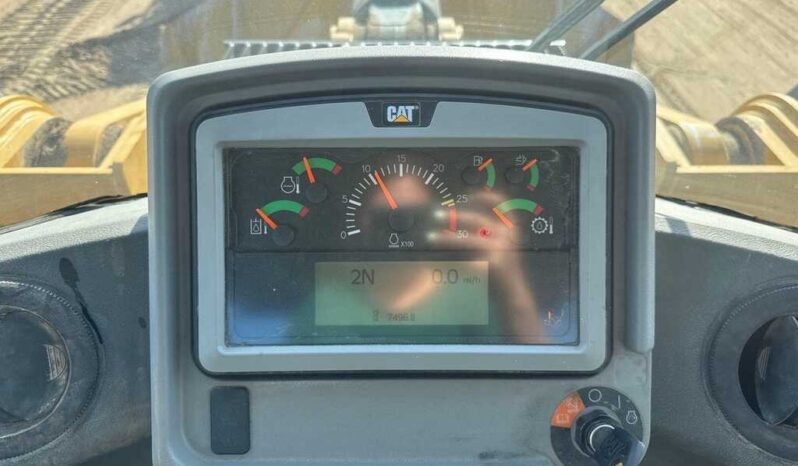

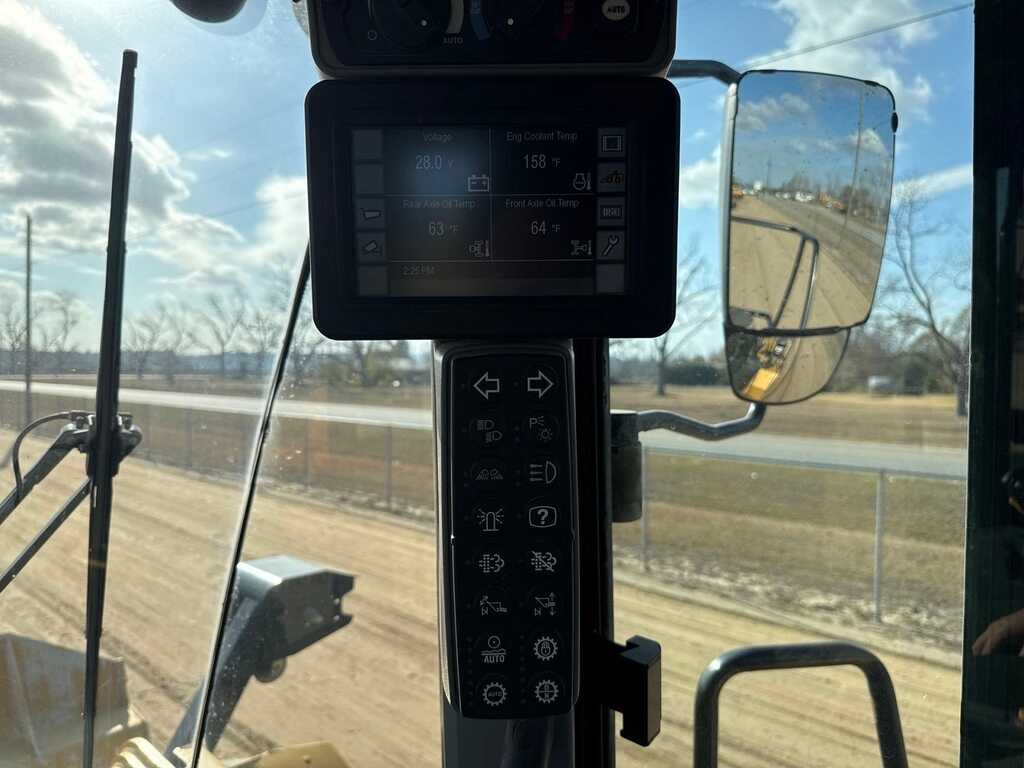

Display: Large color touchscreen monitor (8″ or 12″)
Monitoring System: Cat Product Link™ Elite with VisionLink® interface

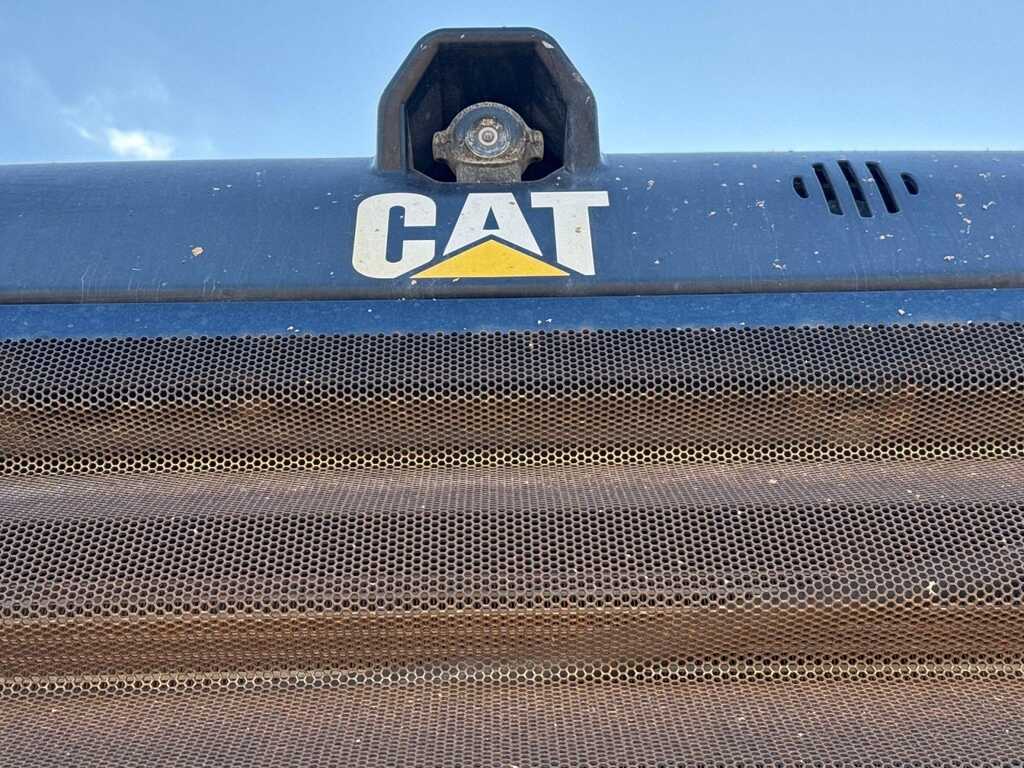

Rearview Camera: Standard, integrated into display
Cab: Pressurized, sound-suppressed cab rated at approximately 72 dB(A)

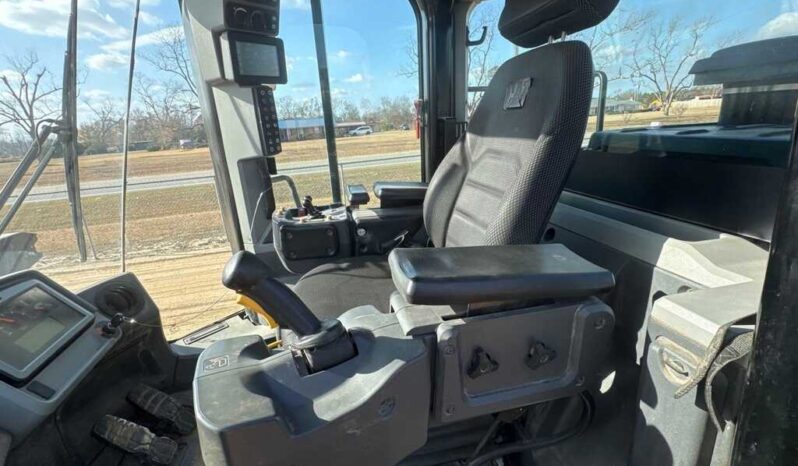

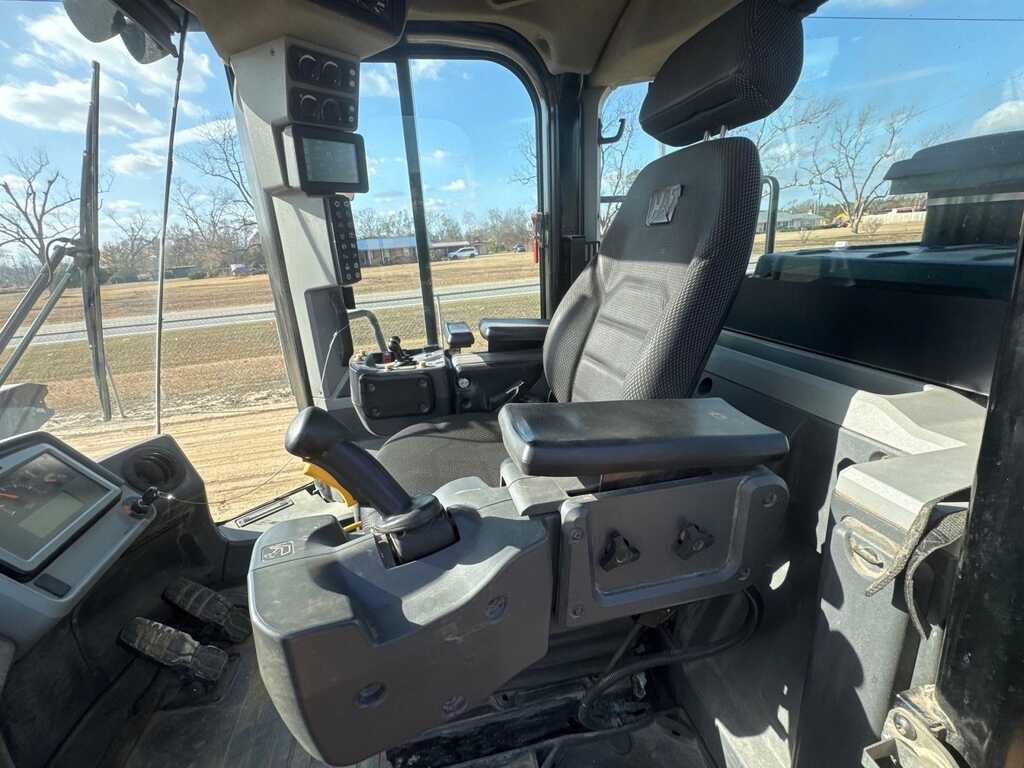

Seat: Air-suspension operator seat

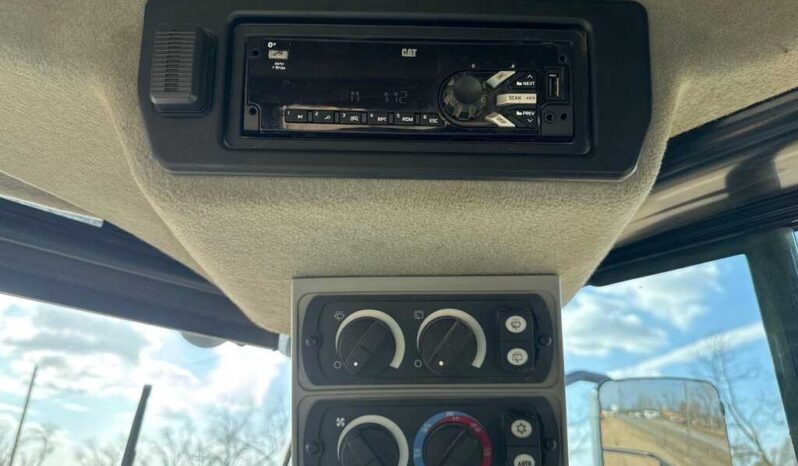

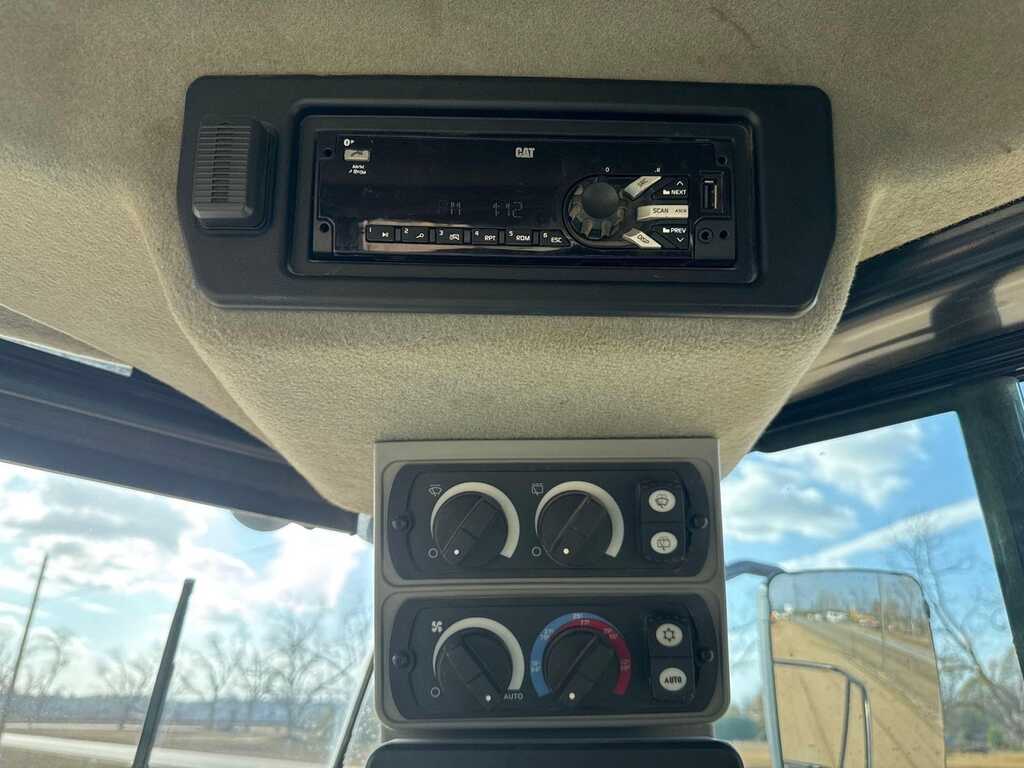

Climate Control: Automatic heating and air conditioning
Advanced Productivity & Features
Payload Control System: On-the-go weighing for accurate truck loading
Traction Control System: Automatic engagement to reduce wheel slip
Stable Blade Function: Locks lift arms for grading and dozing stability

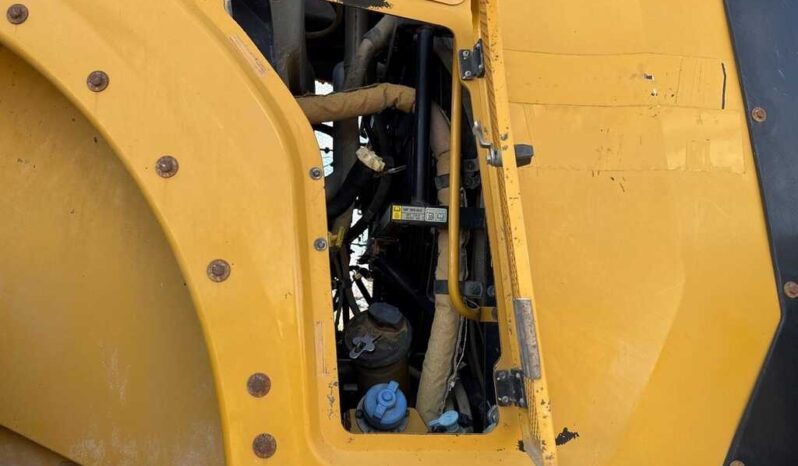

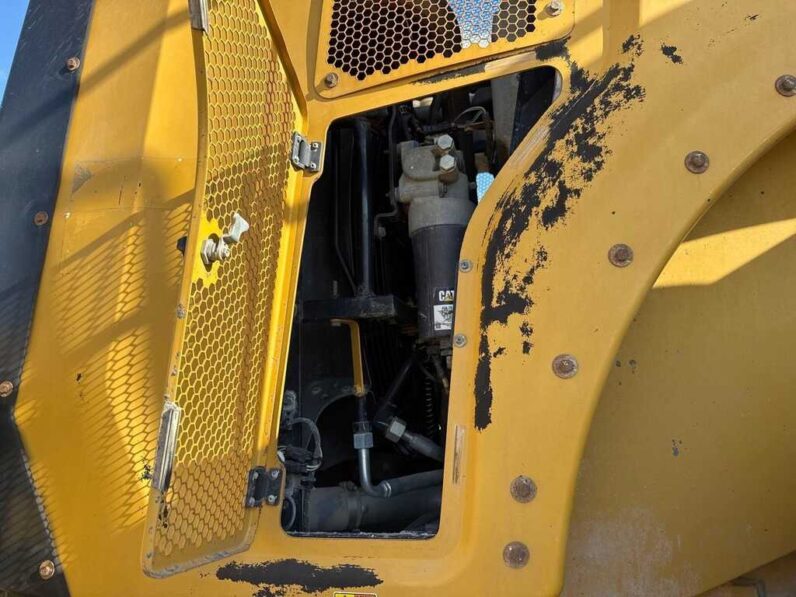

Serviceability: Ground-level service access and extended maintenance intervals
Emissions Maintenance: Fully automatic passive regeneration with no daily service required
