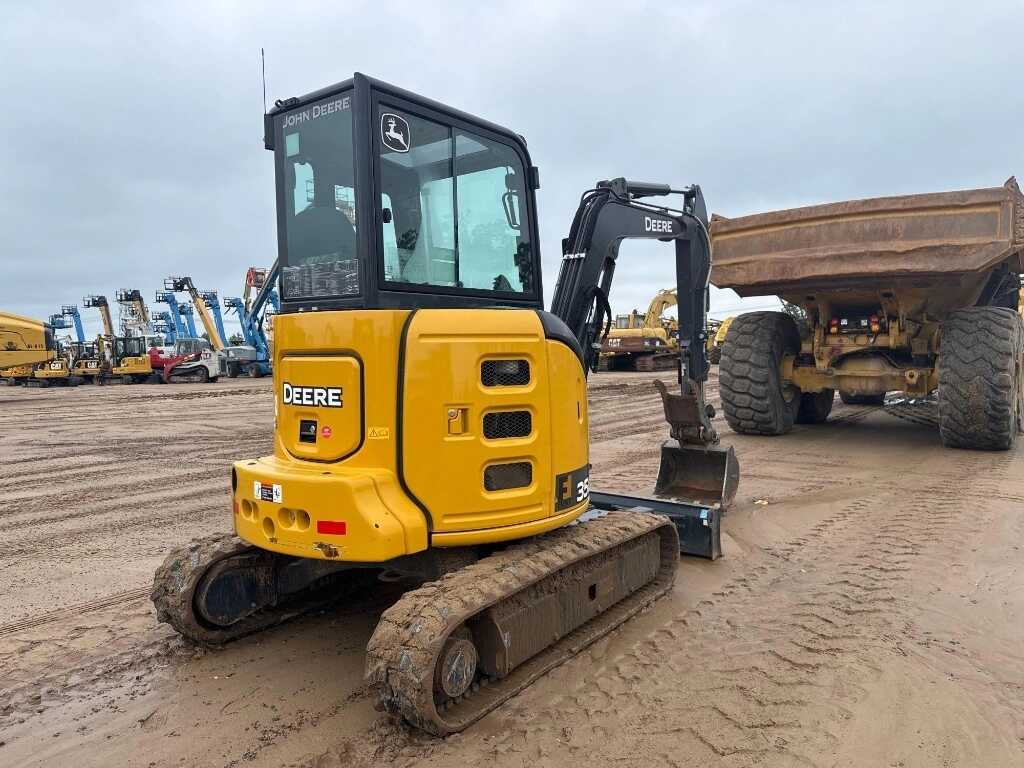

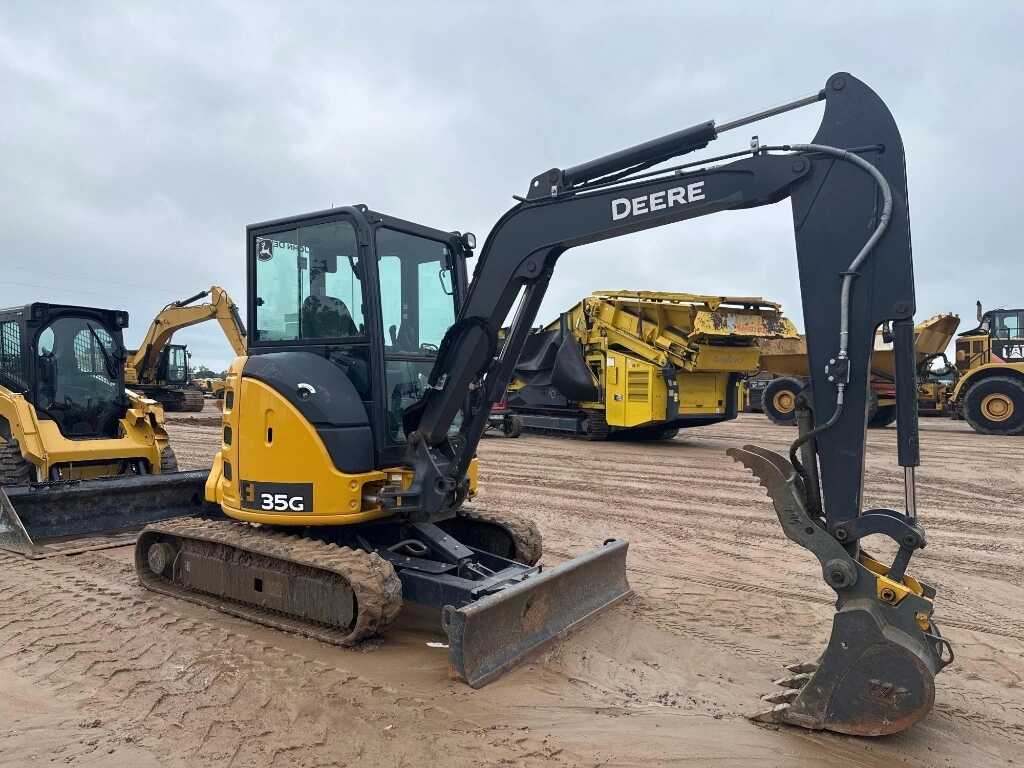

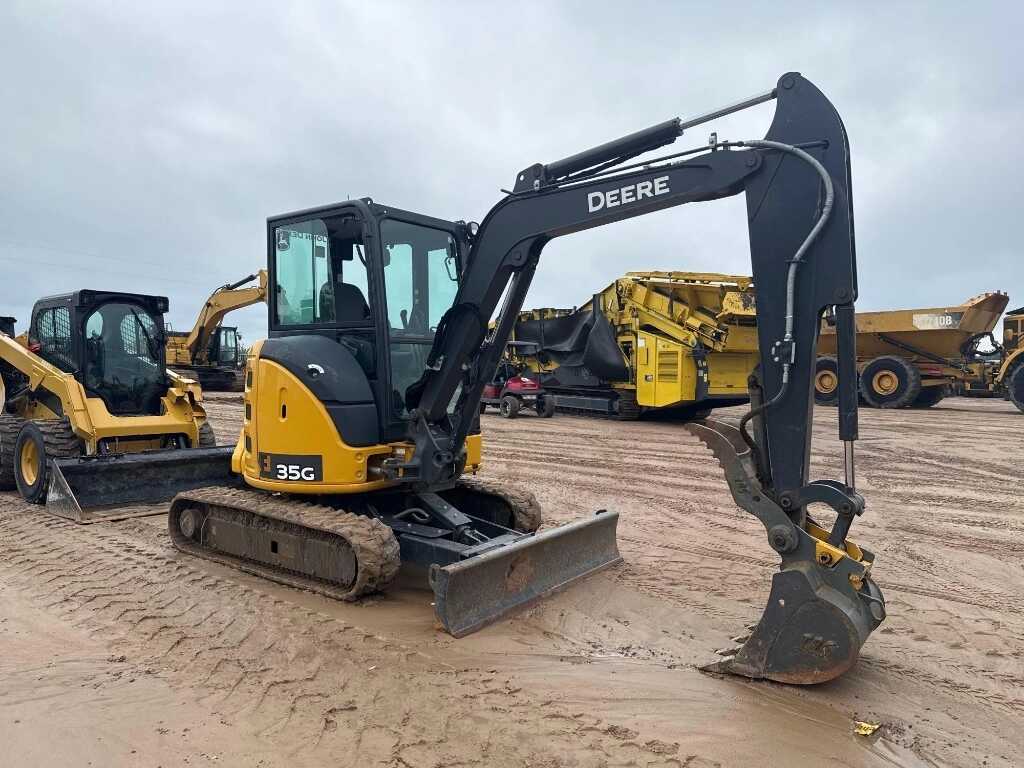

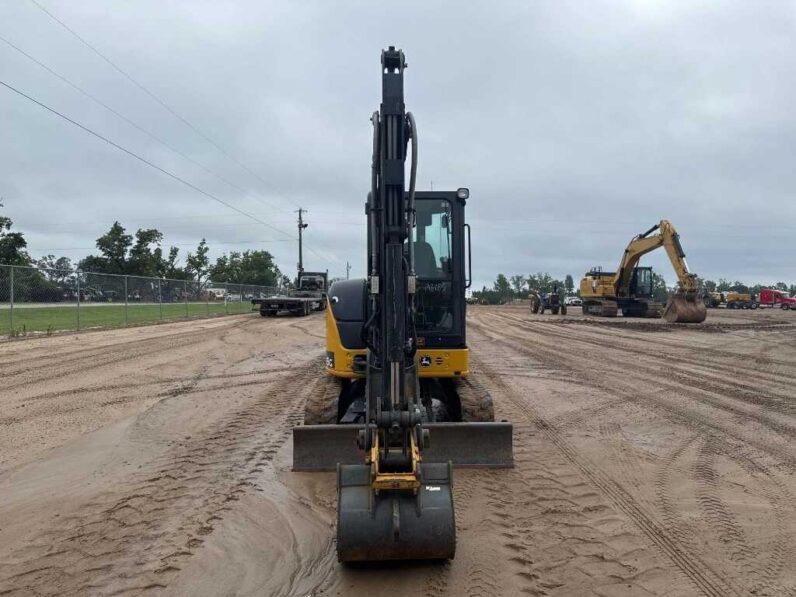

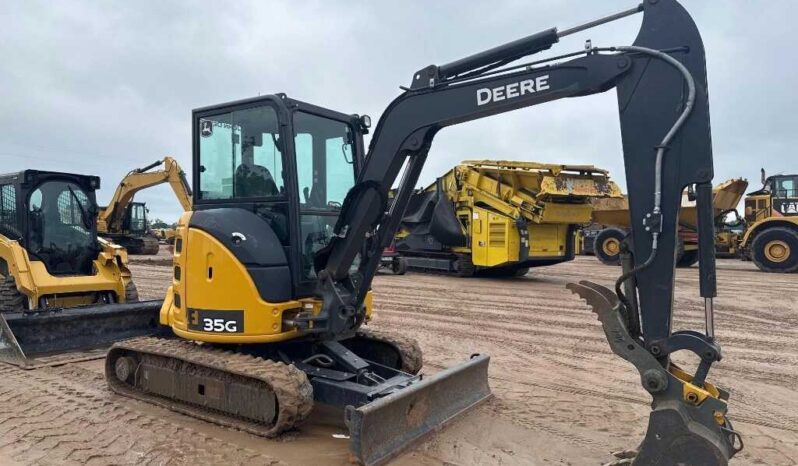

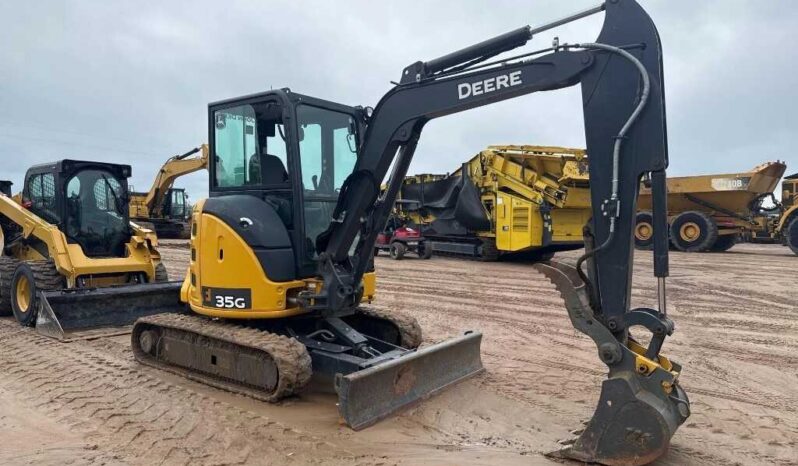

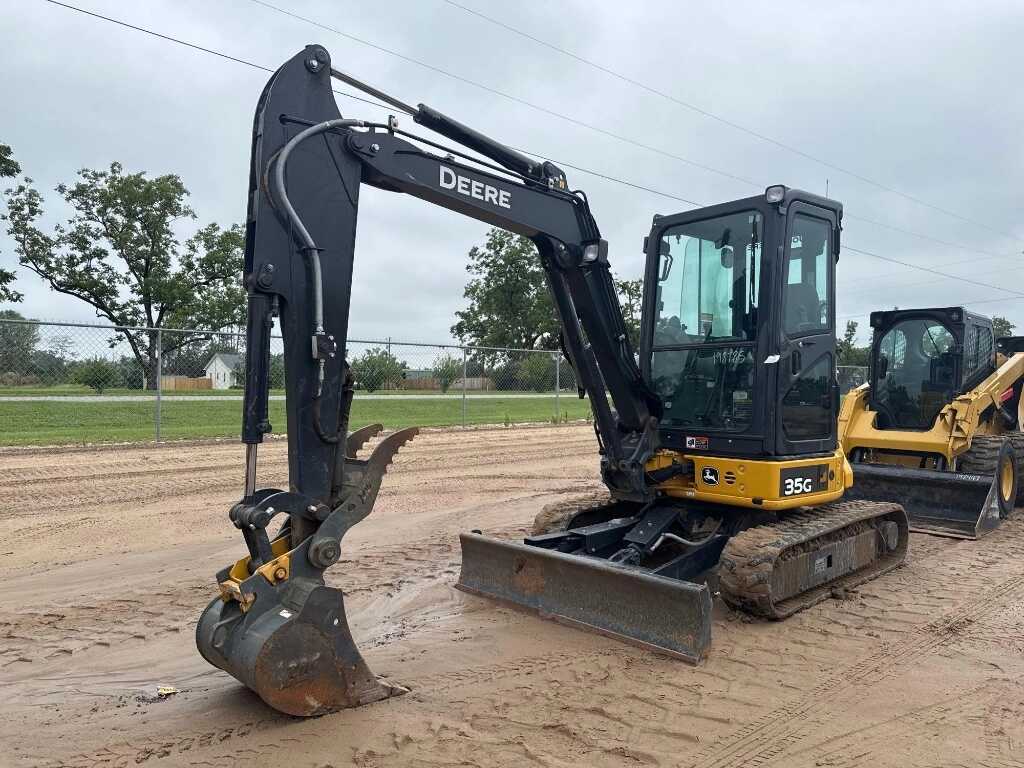

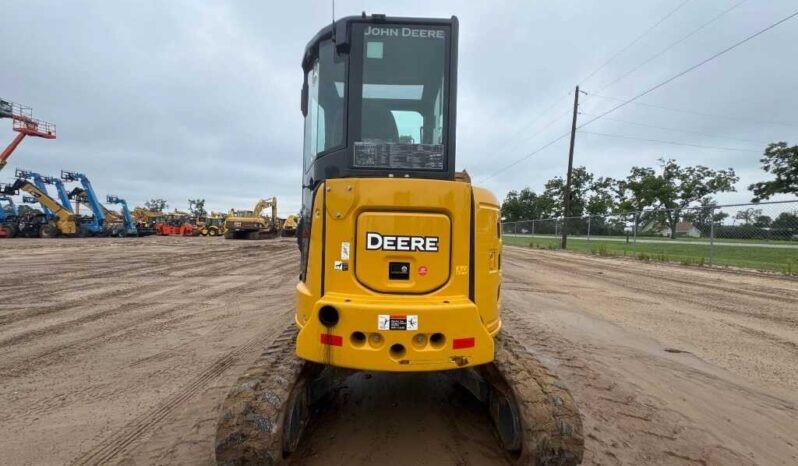

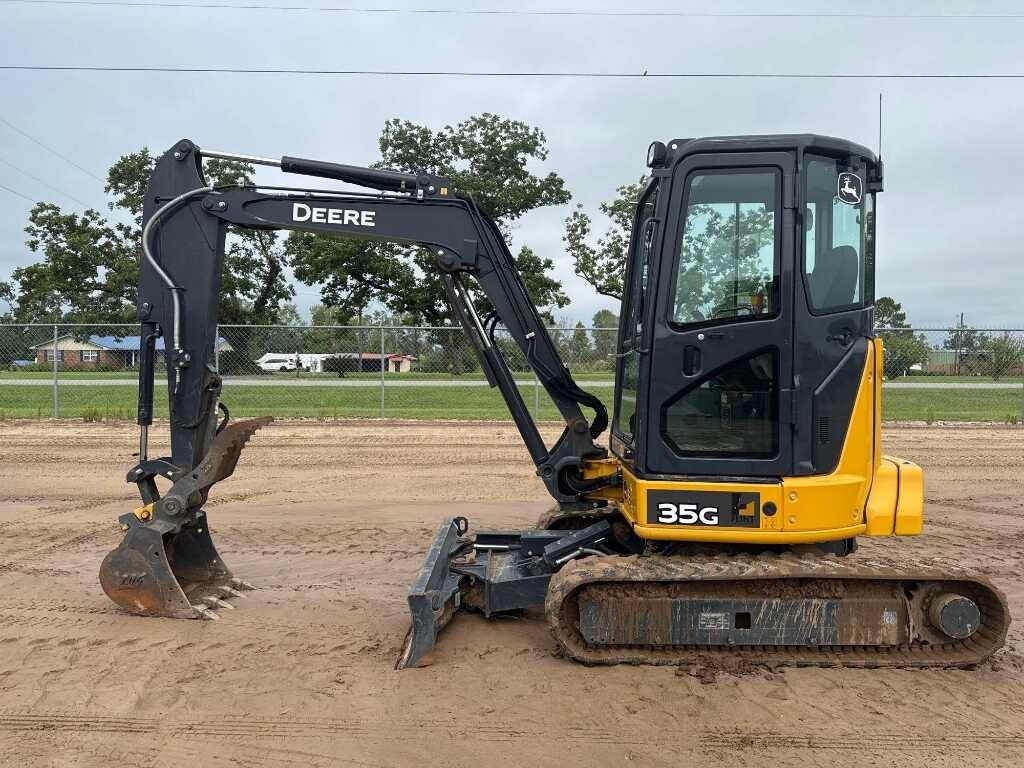

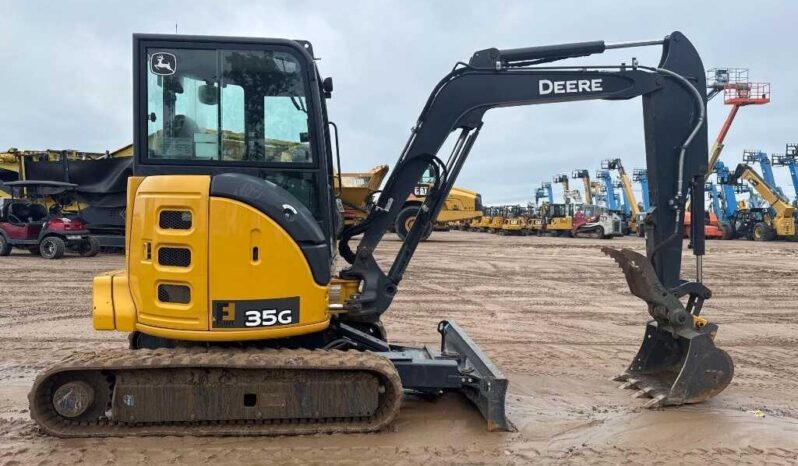

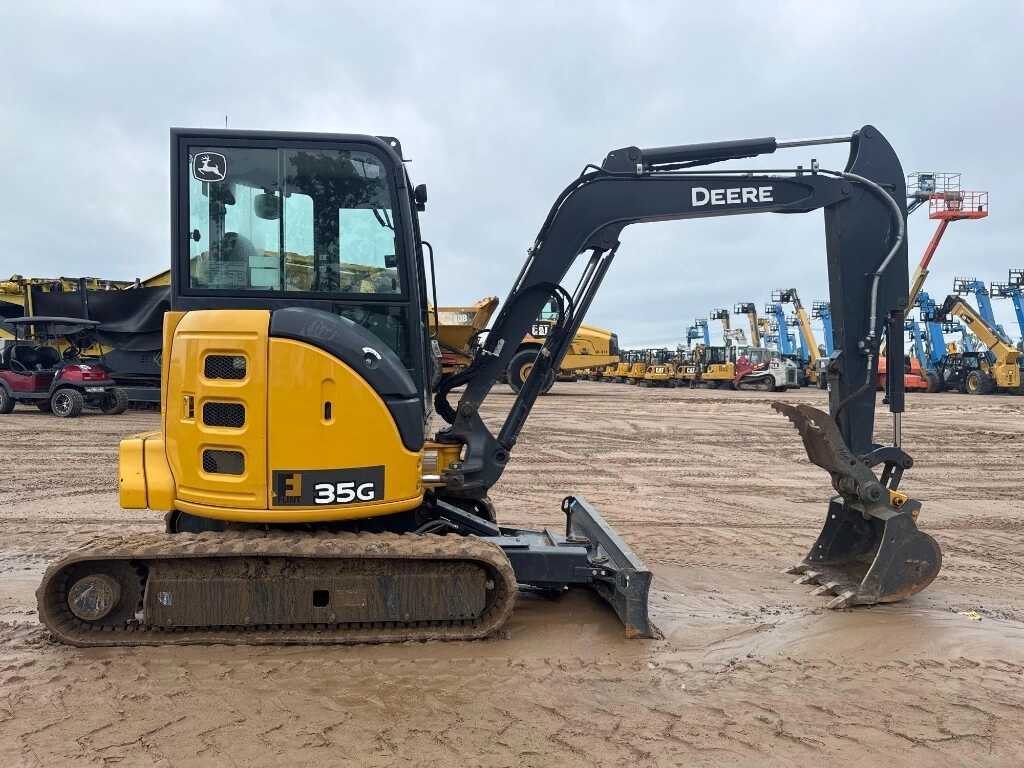

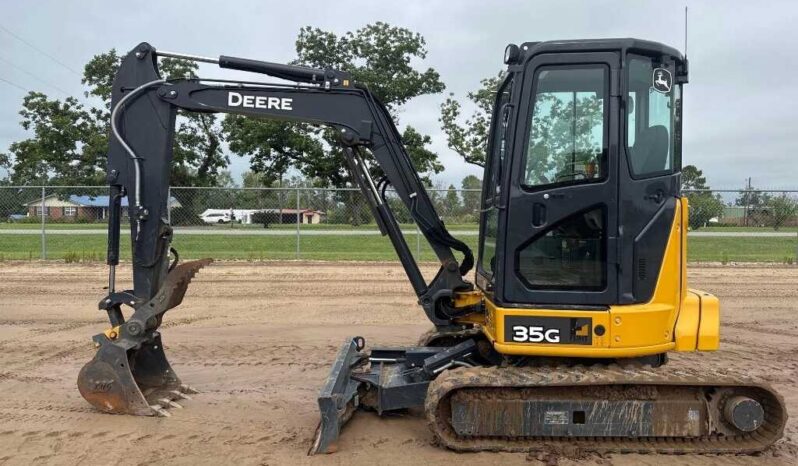

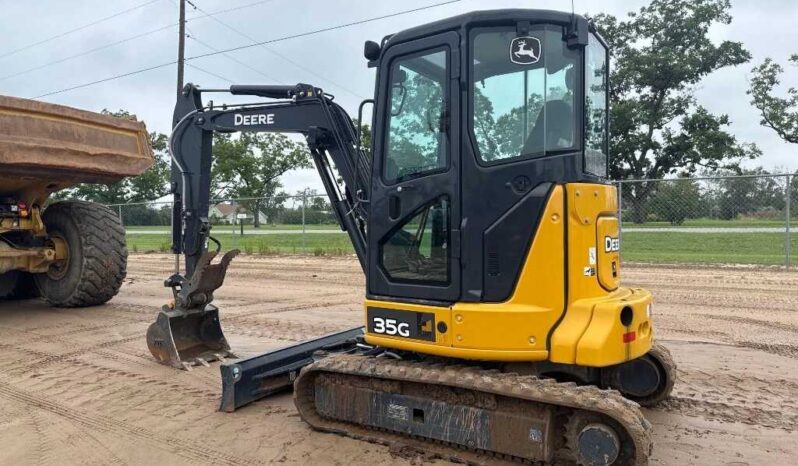

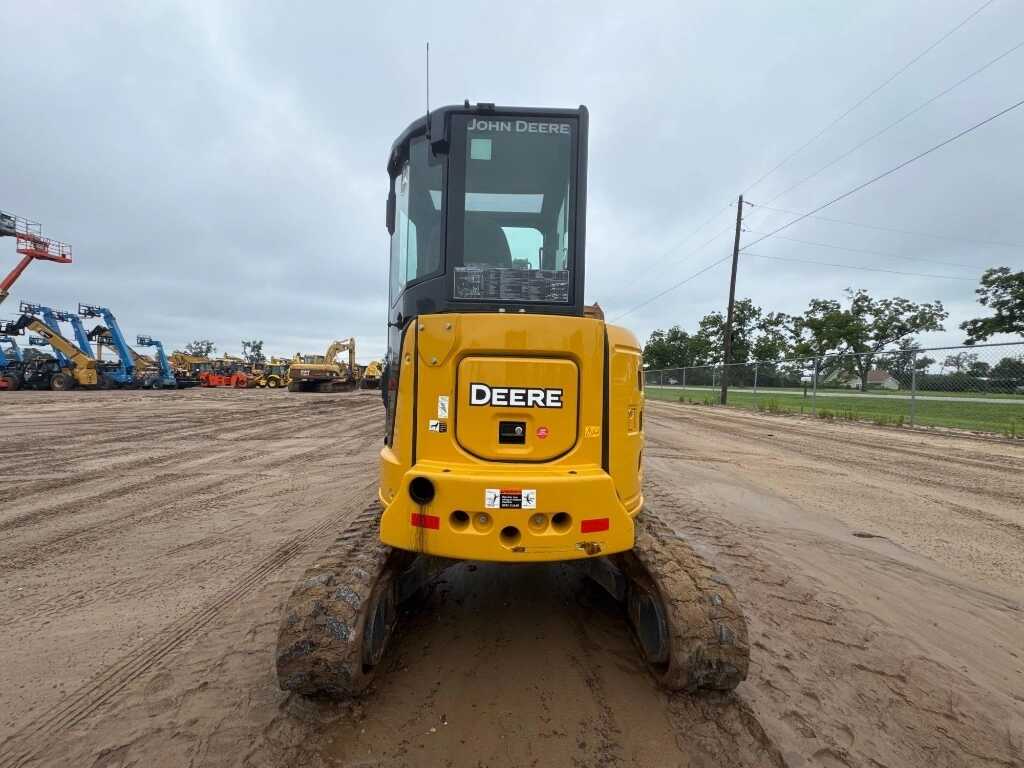

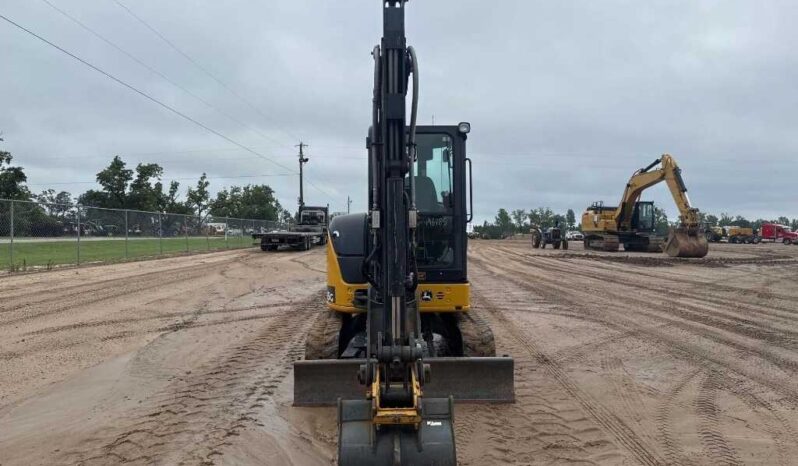

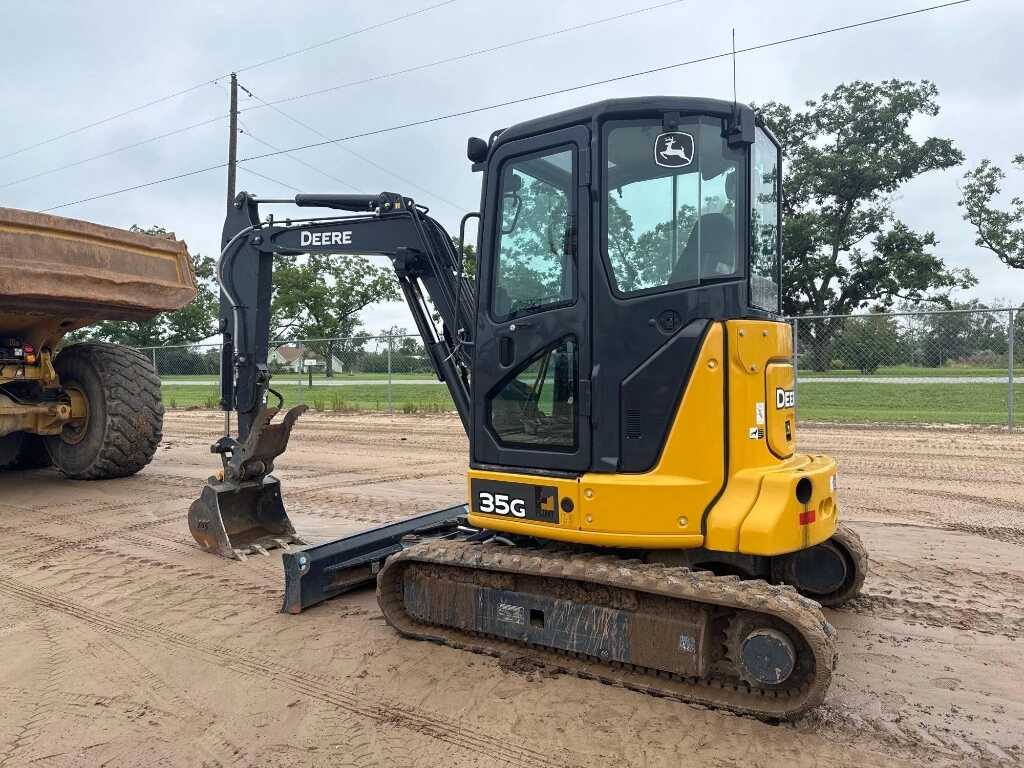

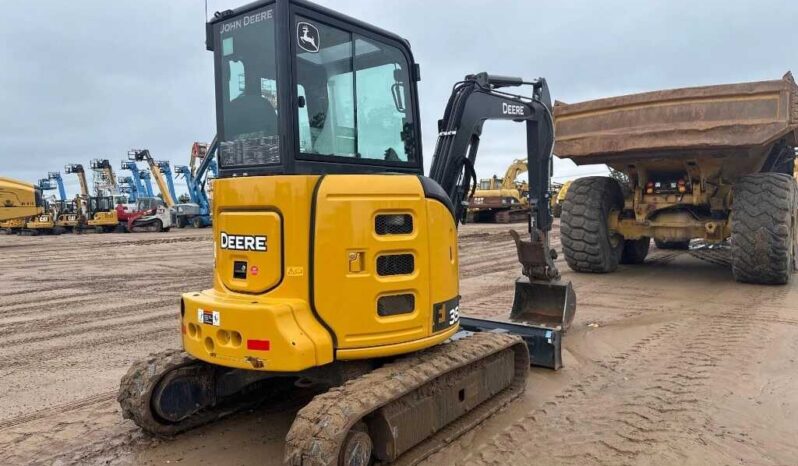

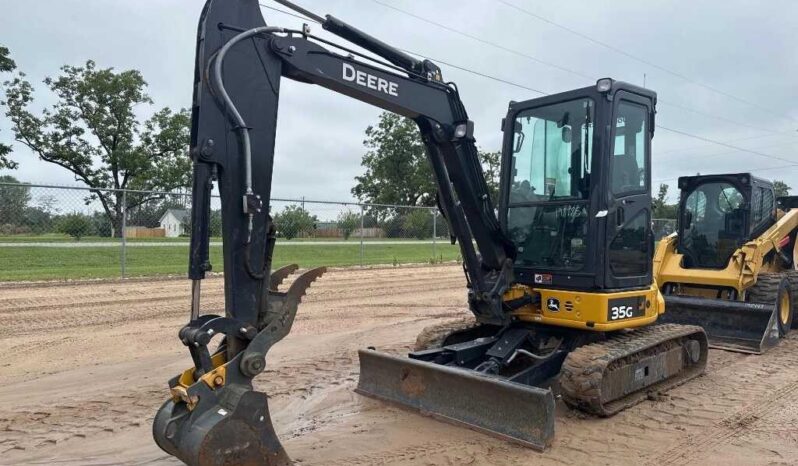

Machine was just completely cleaned, serviced, greased & looked over. Photos just taken! Delivery Available!
– Enclosed HEAT/AC/RADIO
– Hydraulic Quick Coupler

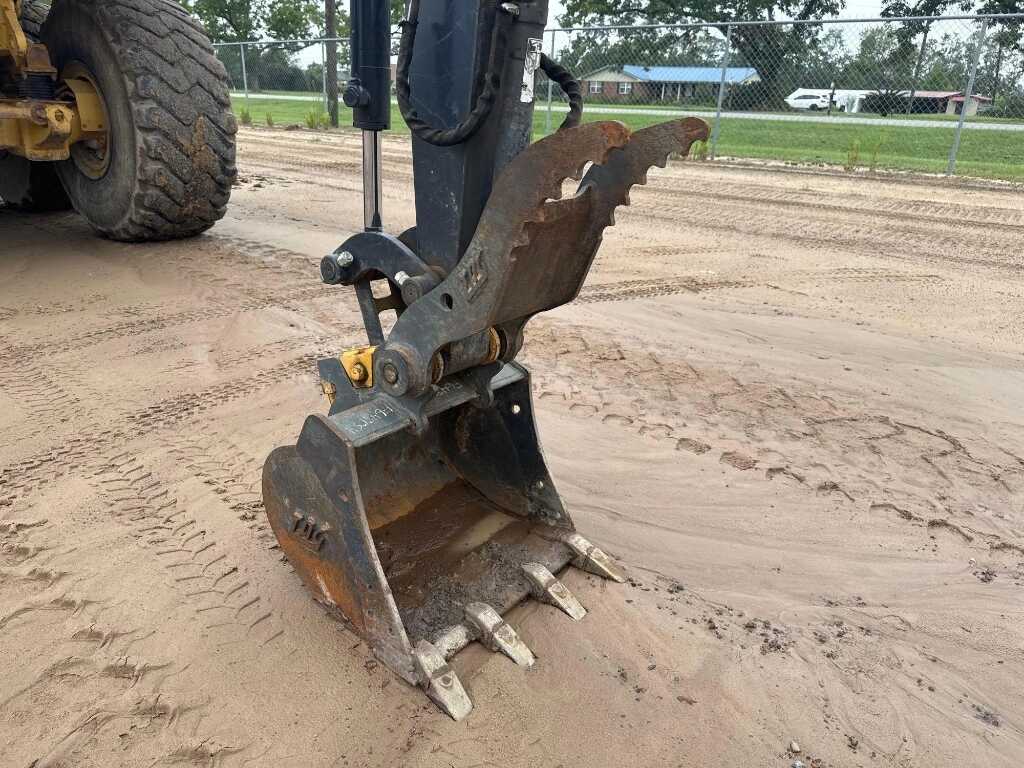

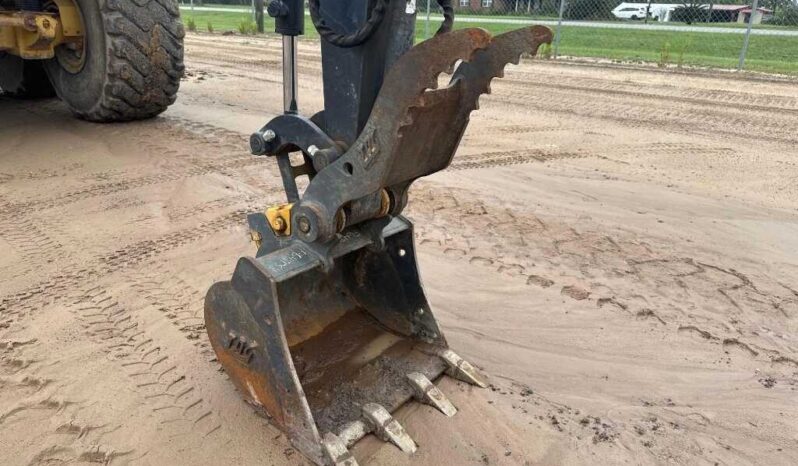

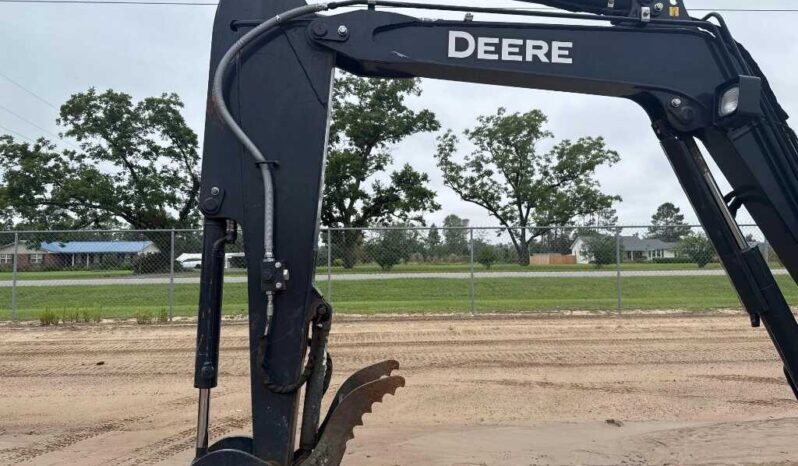

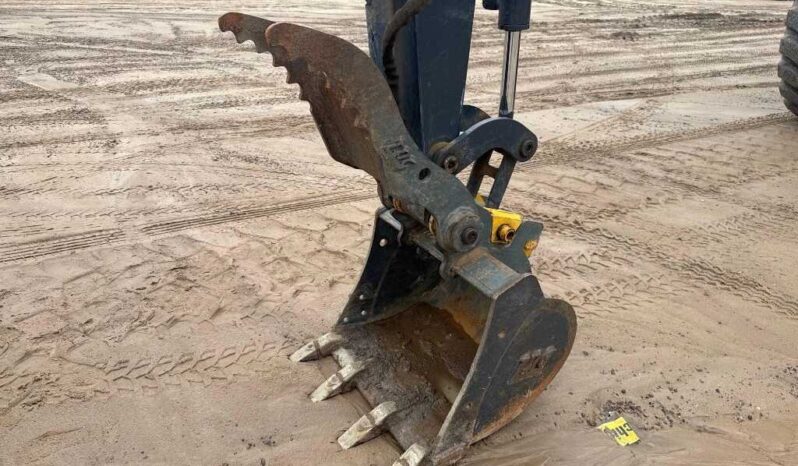

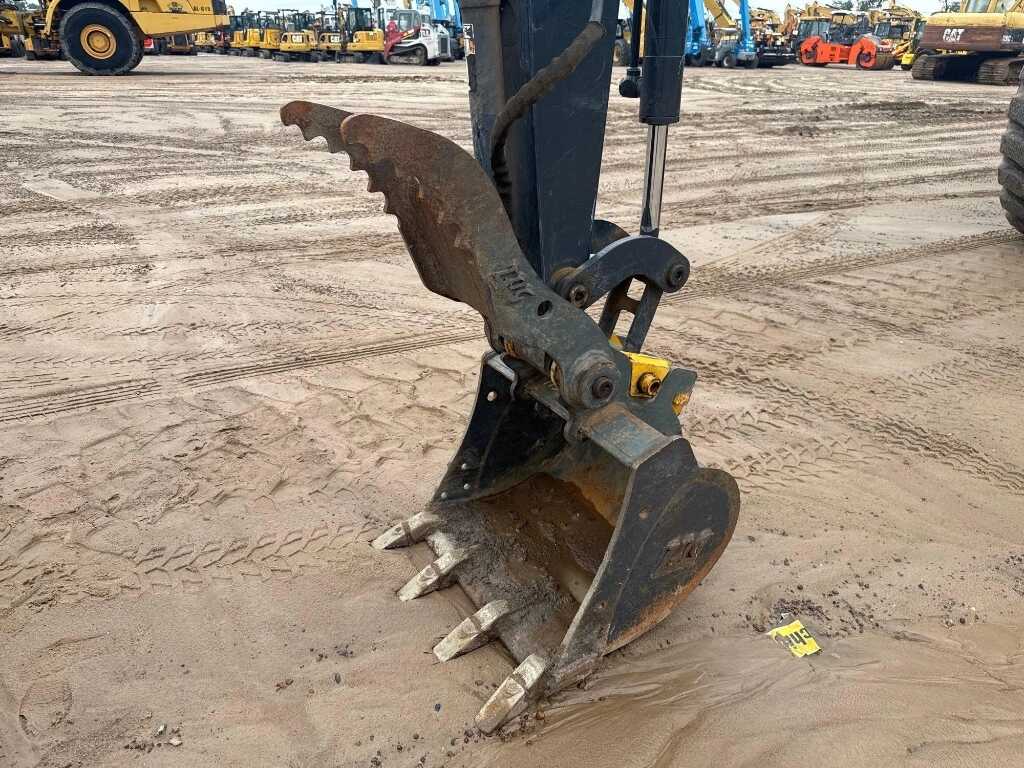

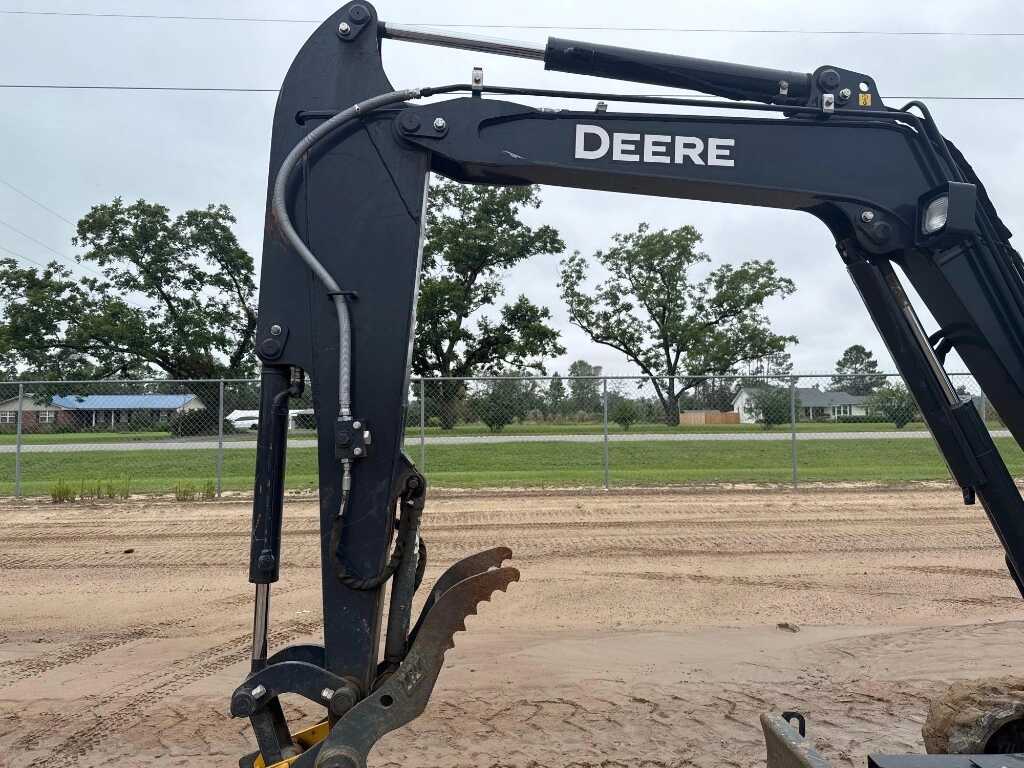

– Hydraulic Thumb

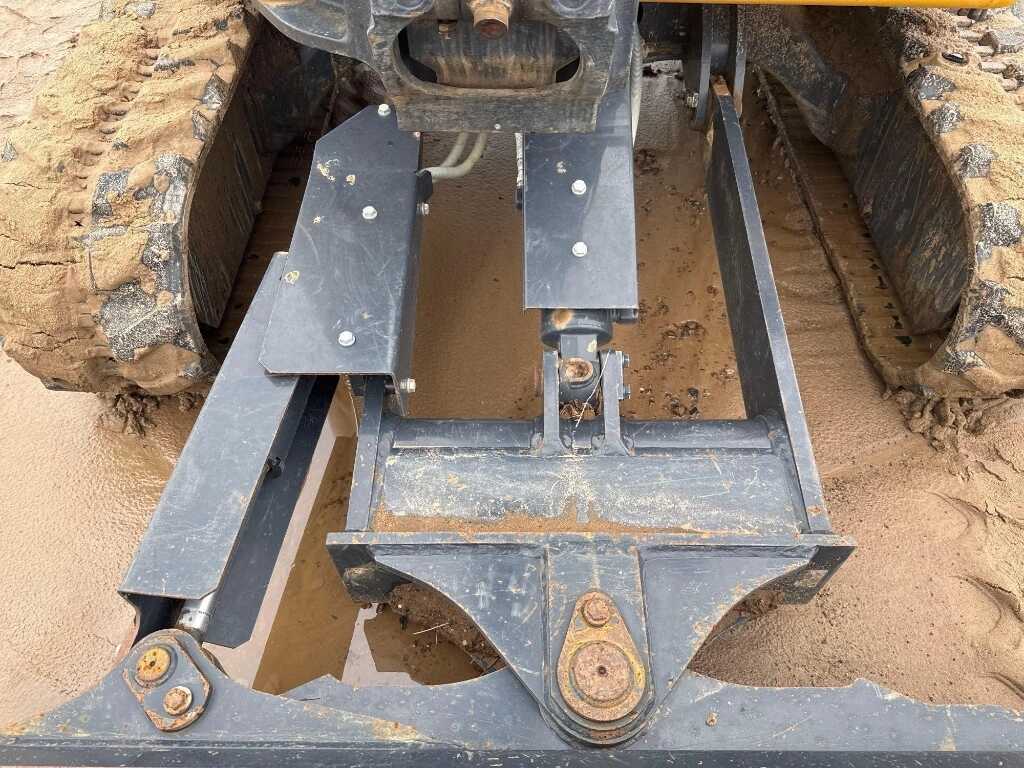

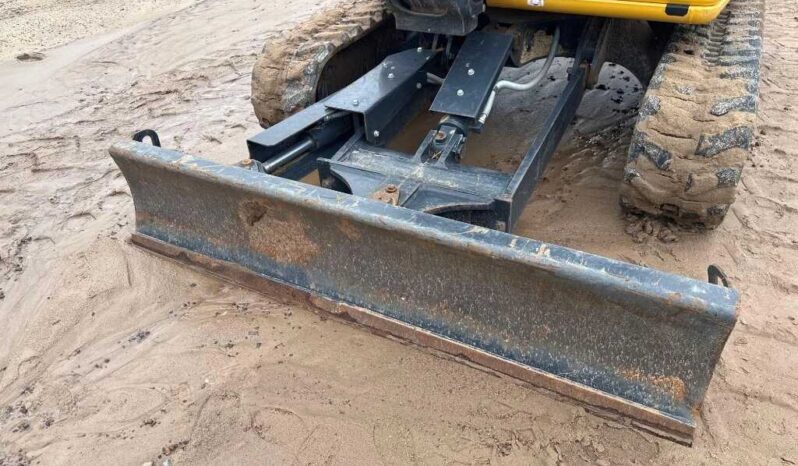

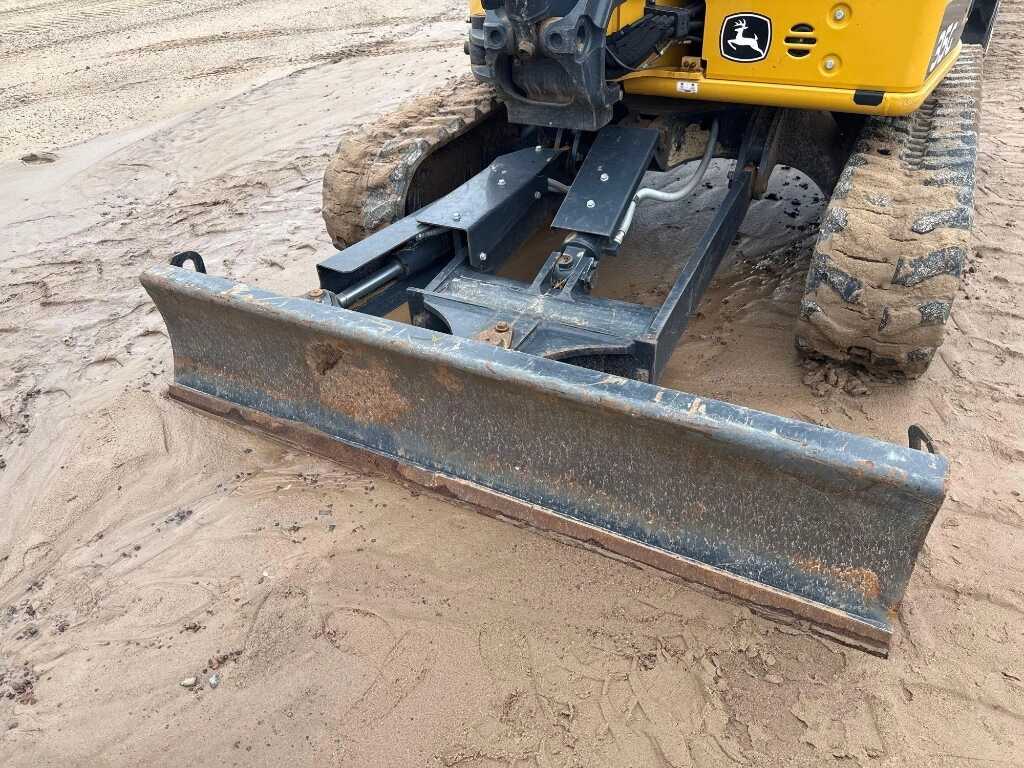

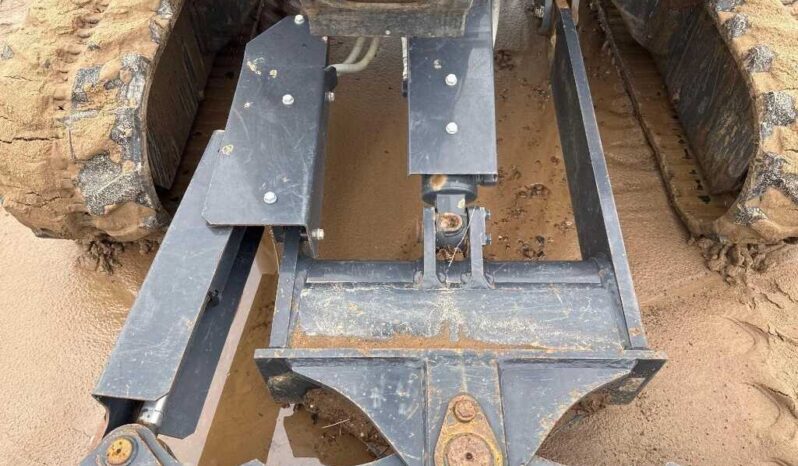

– Hydraulic angle blade

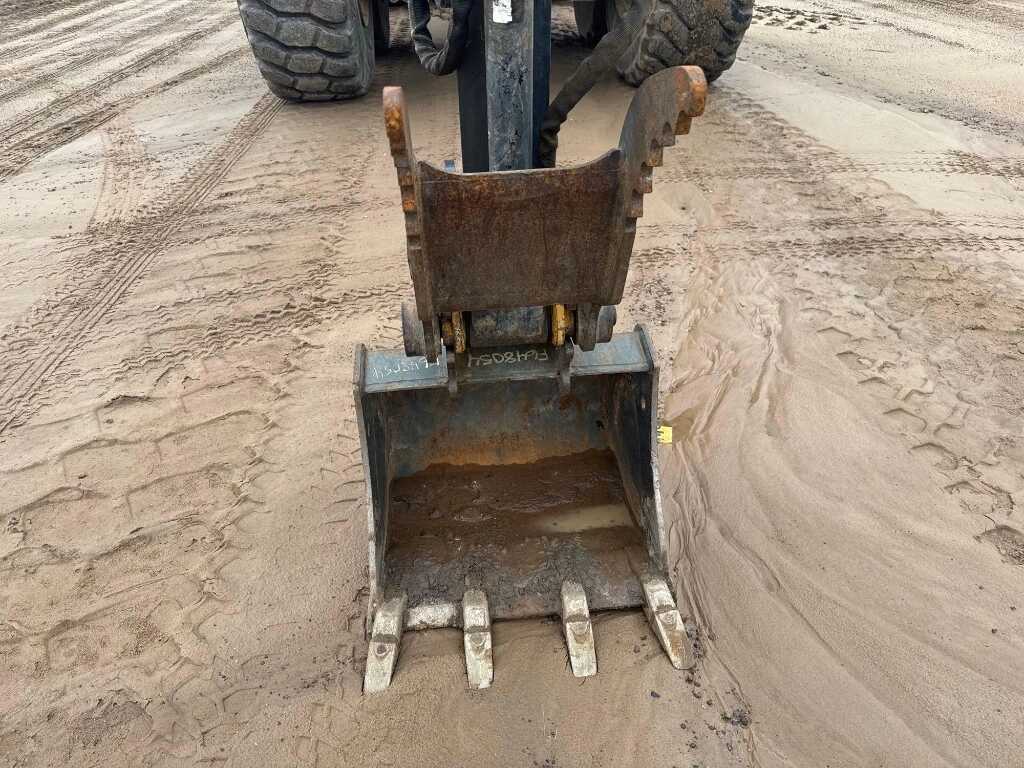

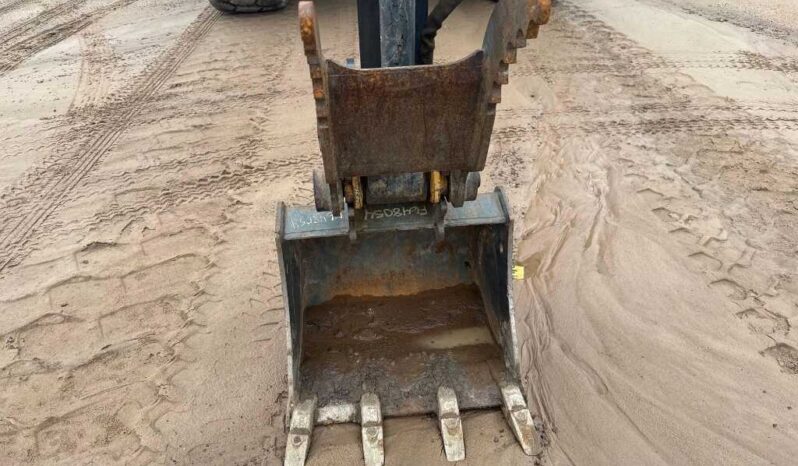

– 12”, 18” & 24” Buckets
– 2 Speed
– 8,200 Lbs
– 24hp
Machine is READY TO WORK
General Specifications
Operating Weight: Approximately 8,040 lbs (3,647 kg) with cab, standard bucket, and no additional counterweights
Horsepower (Net): 24.8 hp (18.5 kW) John Deere diesel engine
Maximum Travel Speed: 2.8 mph (4.5 km/h)
Fuel Tank Capacity: 10.6 gal (40 L)
Digging Performance
Maximum Digging Depth: 11 ft 1 in (3.38 m)
Maximum Reach at Ground Level: 17 ft 3 in (5.26 m)
Maximum Loading Height: 12 ft 2 in (3.71 m)
Breakout Force (Bucket): 6,050 lbf (26.9 kN)
Breakout Force (Arm): 4,210 lbf (18.7 kN)
Bucket Digging Force: 7,290 lbf (32.4 kN)
Dimensions
Transport Width: 6 ft 1 in (1.85 m) with 300 mm (12 in) shoes
Overall Height (to top of cab): 8 ft 2 in (2.49 m)
Tail Swing Radius: 5 ft 11 in (1.80 m) minimal tail swing design
Ground Clearance: 1 ft 1 in (0.33 m)
Track Length: 8 ft 6 in (2.59 m)
Track Gauge: 4 ft 11 in (1.50 m)
Hydraulic System
Main Hydraulic Pump: Variable-flow axial piston pump
Total Hydraulic Flow: 15.1 gpm (57.2 L/min)
Maximum Pressure (Implement): 3,190 psi (220 bar)
Auxiliary Hydraulic Circuits: Standard one-way or optional two-way auxiliary hydraulics (high-flow not typically standard on this base model)

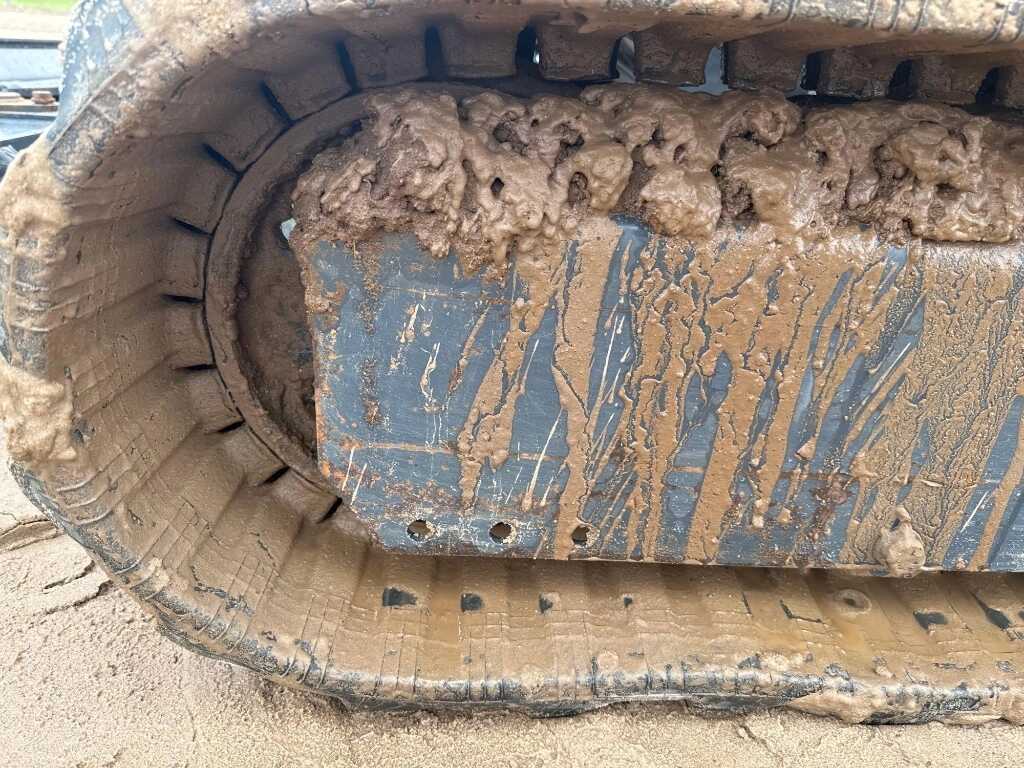

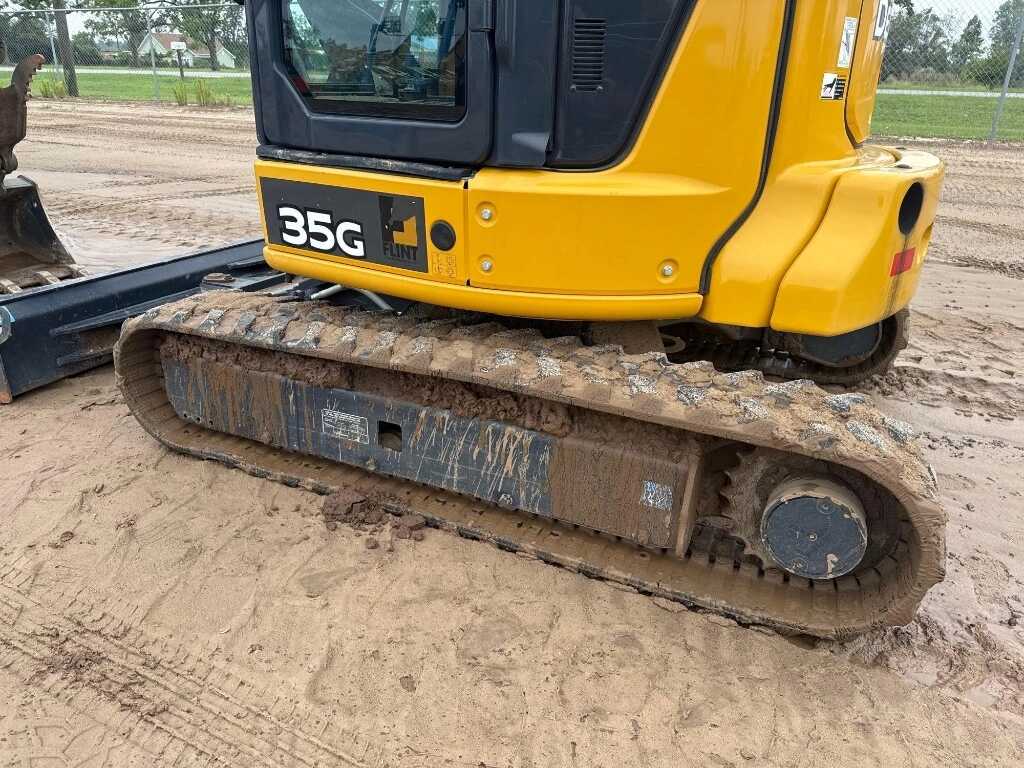

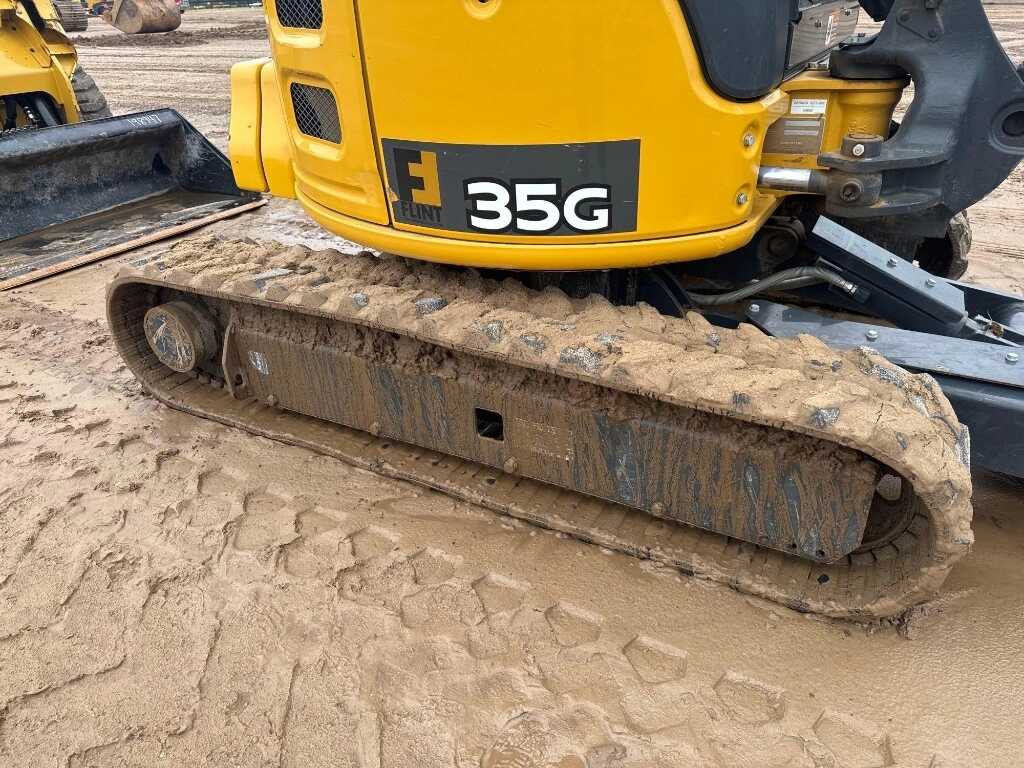

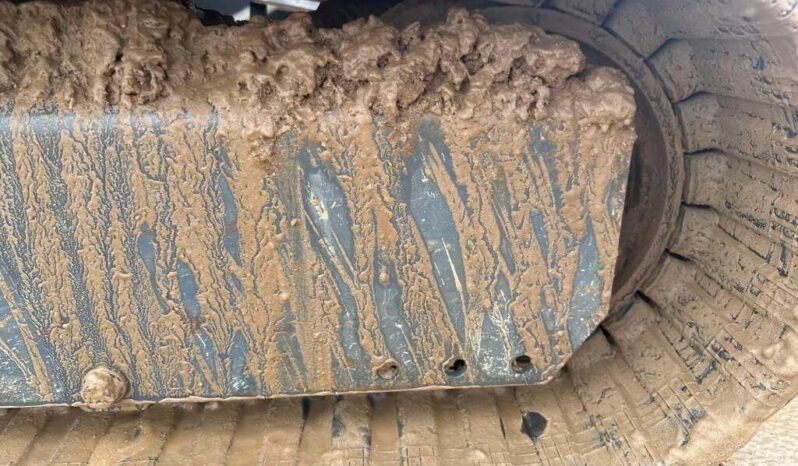

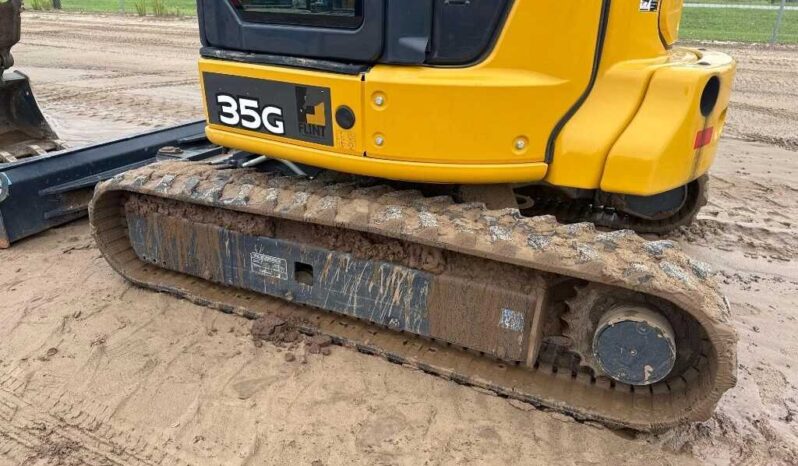

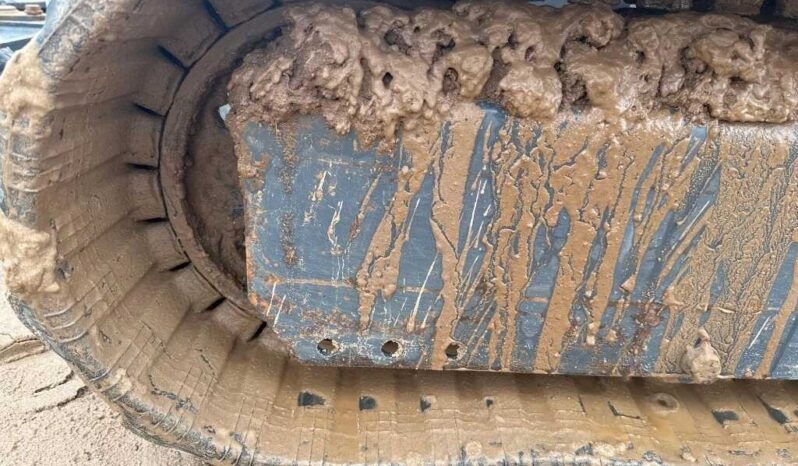

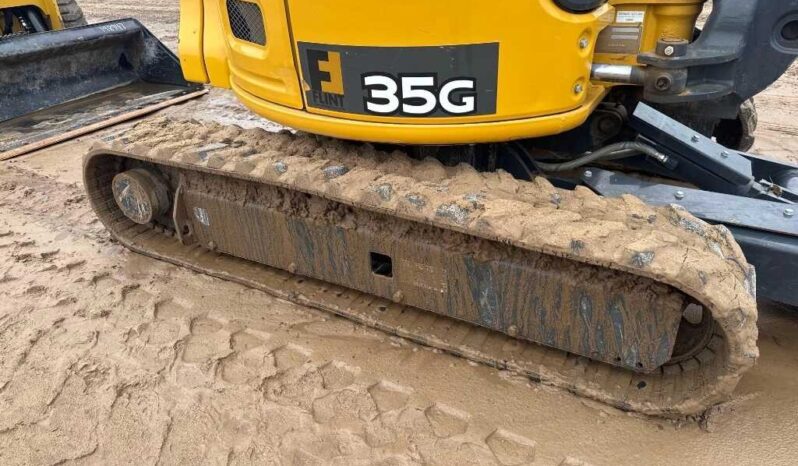

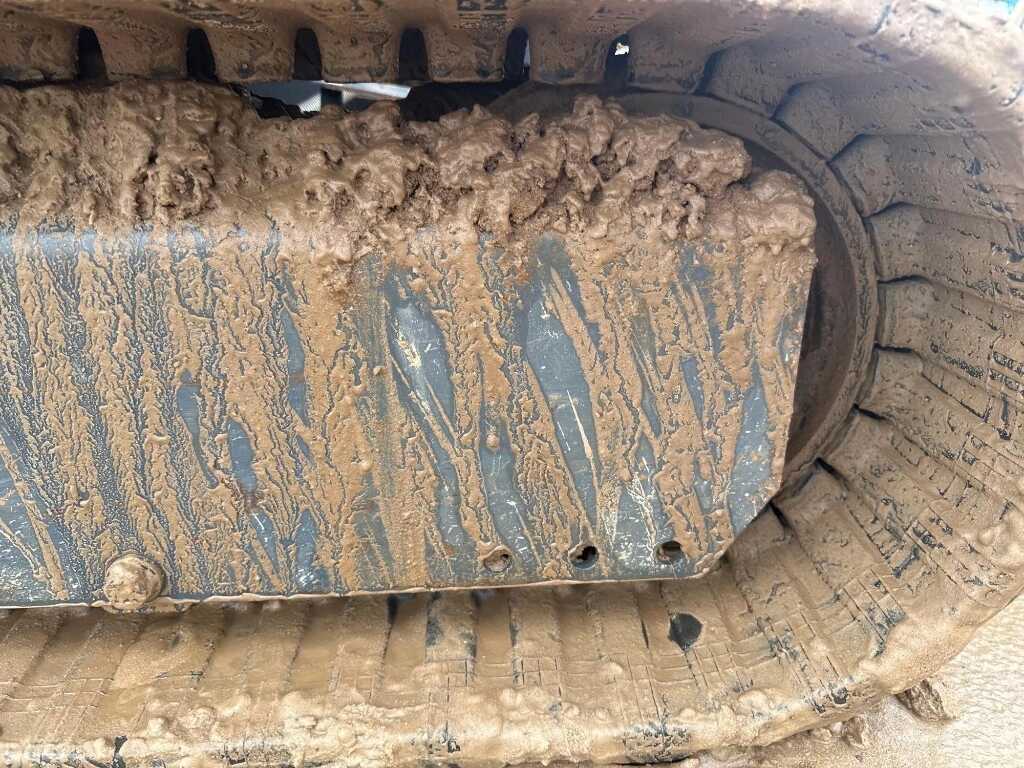

Undercarriage
Shoe Options: 300 mm (12 in) or 450 mm (18 in) triple-grouser shoes
Track Adjustment: Manual grease-adjusted idler

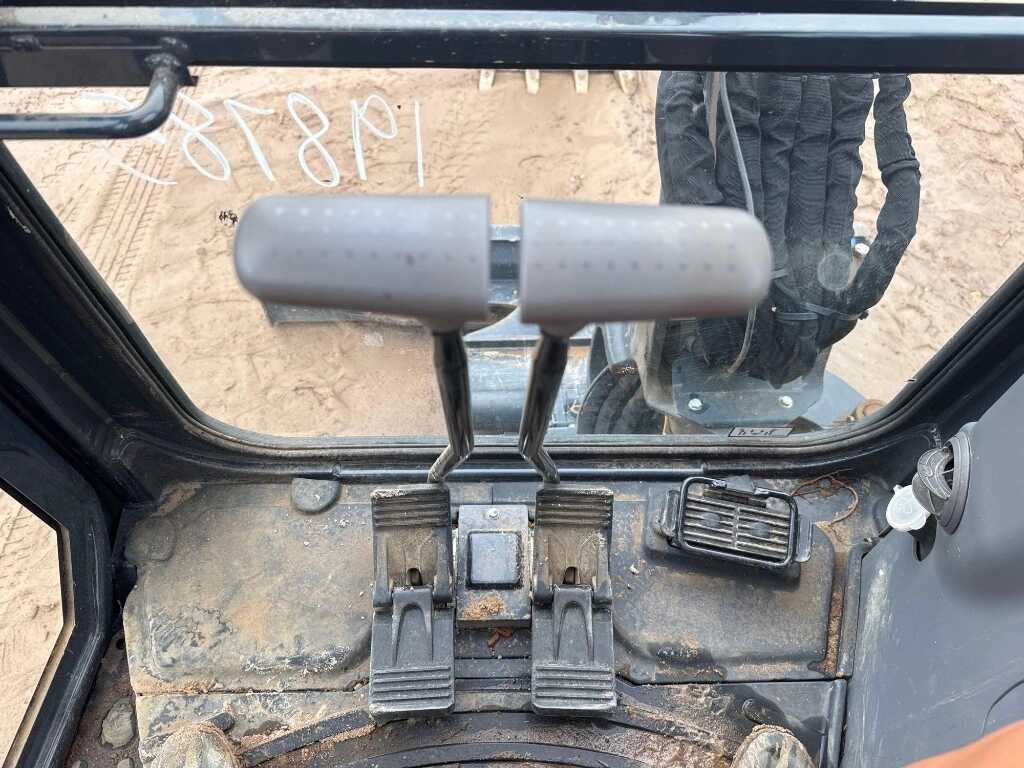

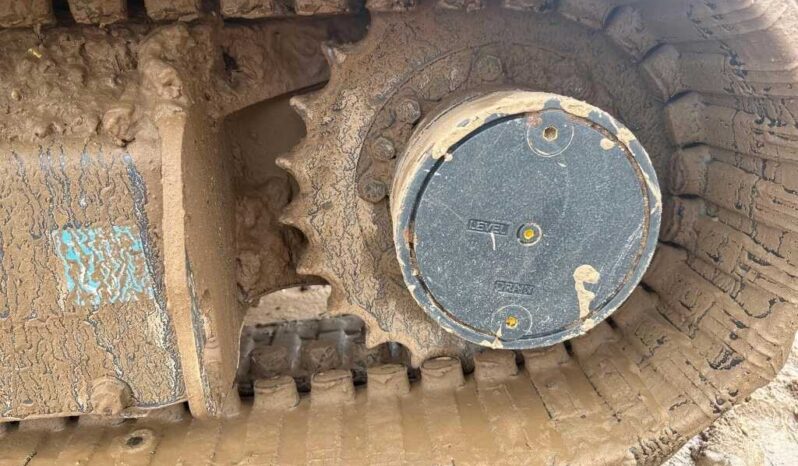

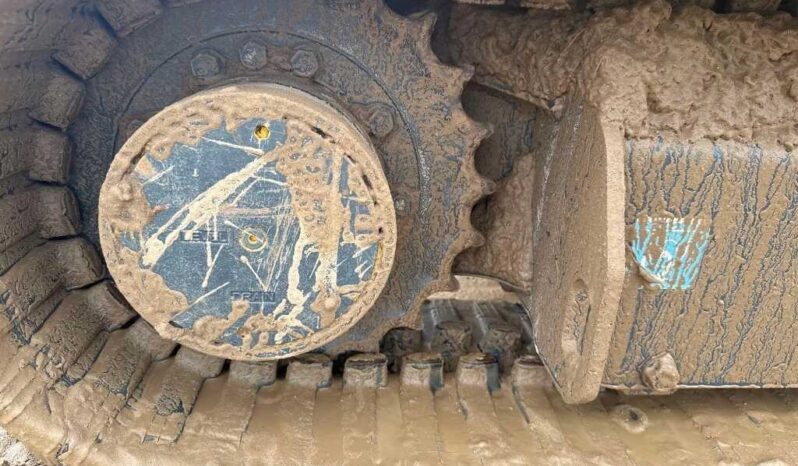

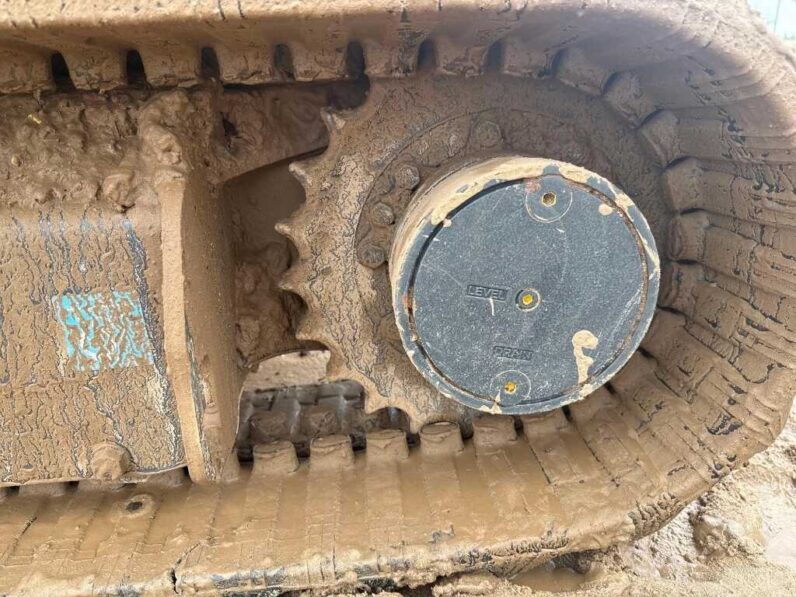

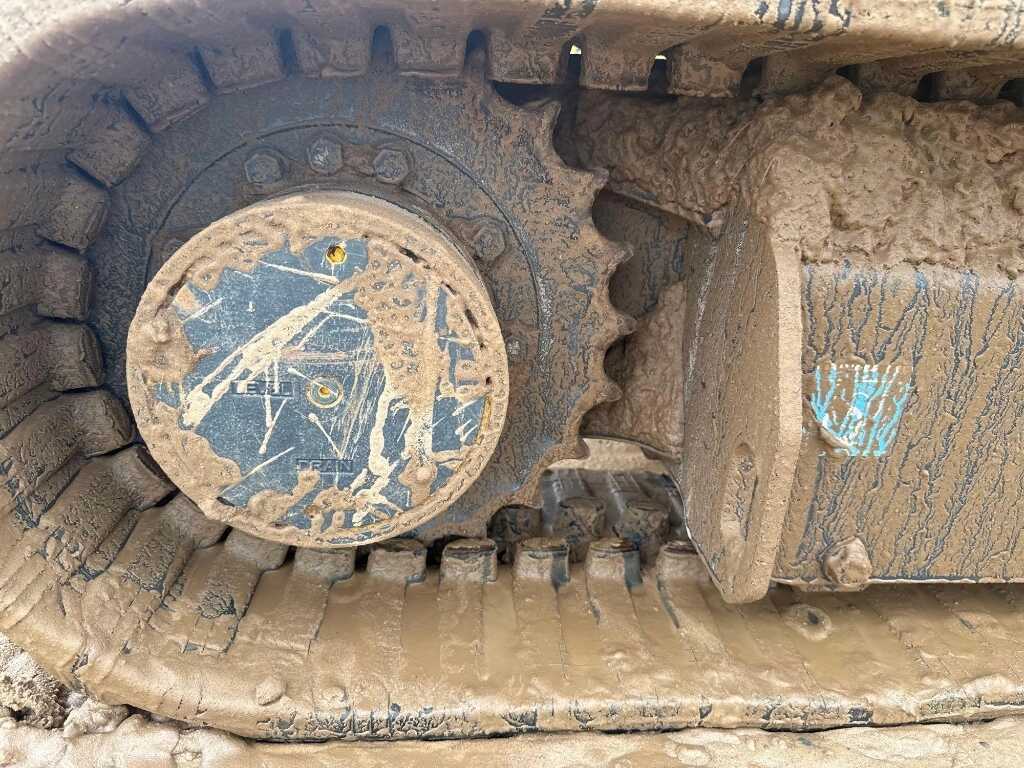

Drive Motors: Dual-speed travel motors for power and speed selection

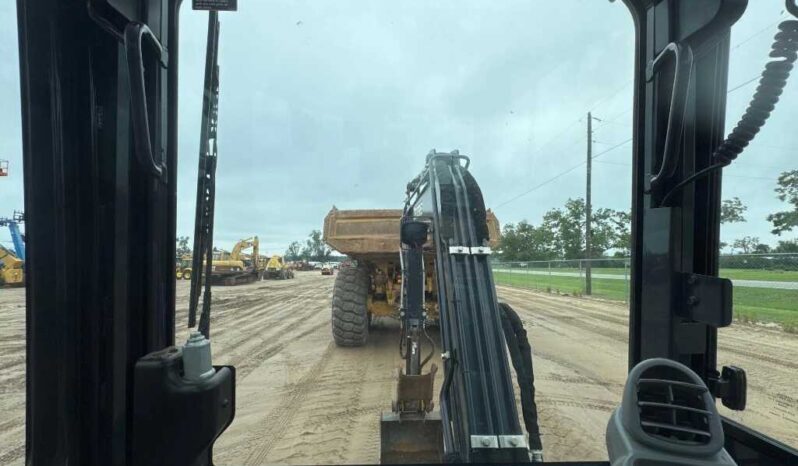

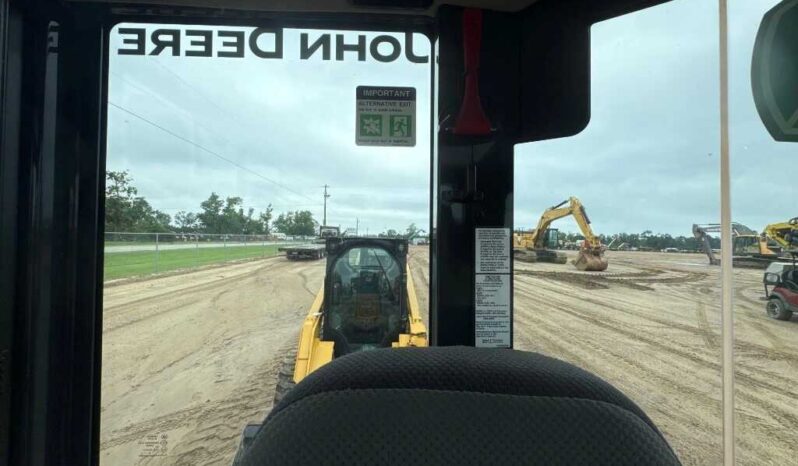

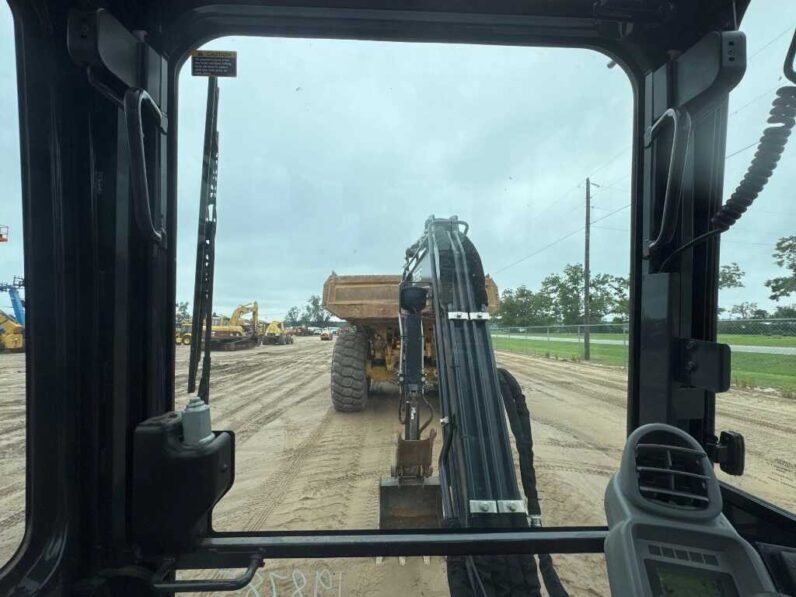

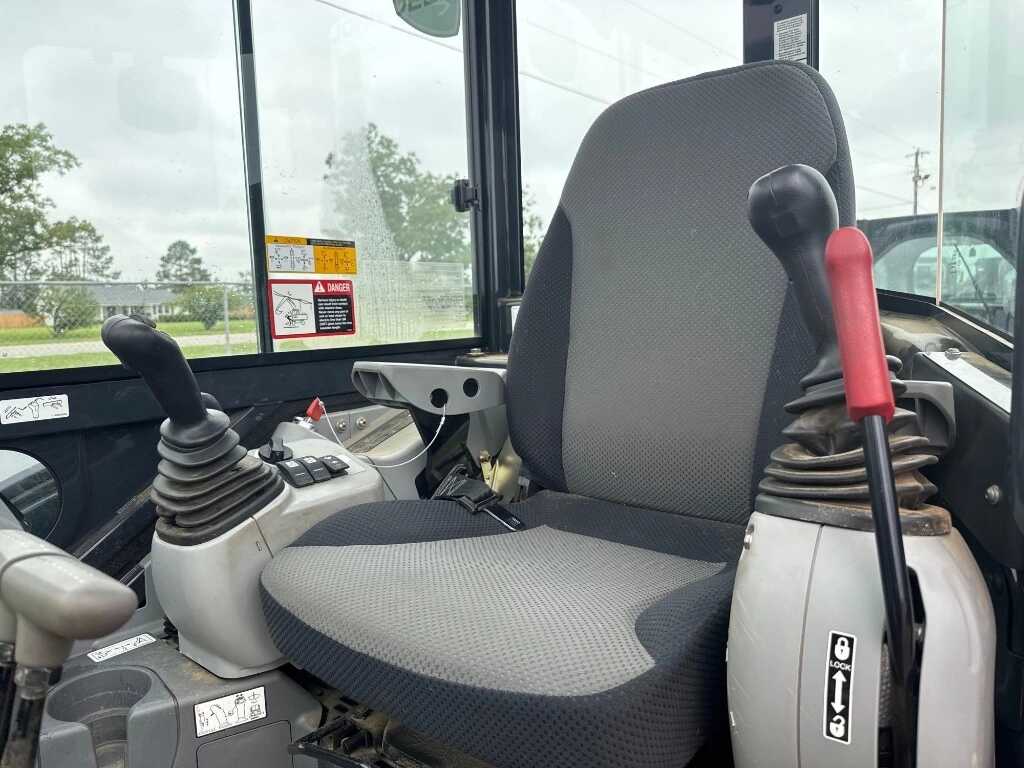

Cab & Controls

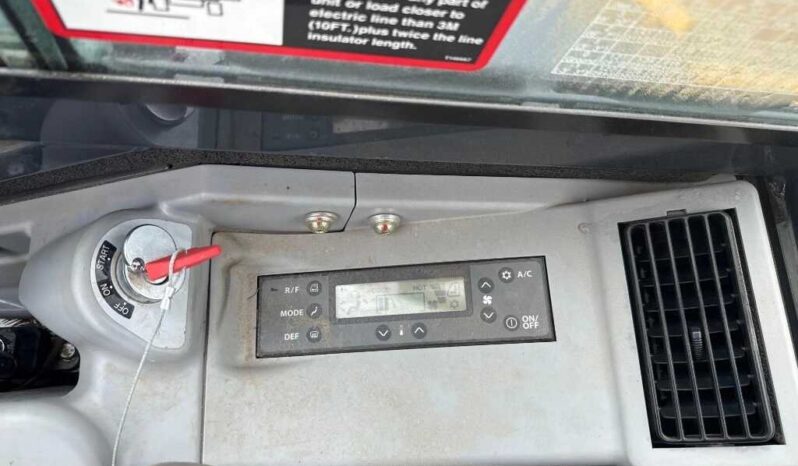

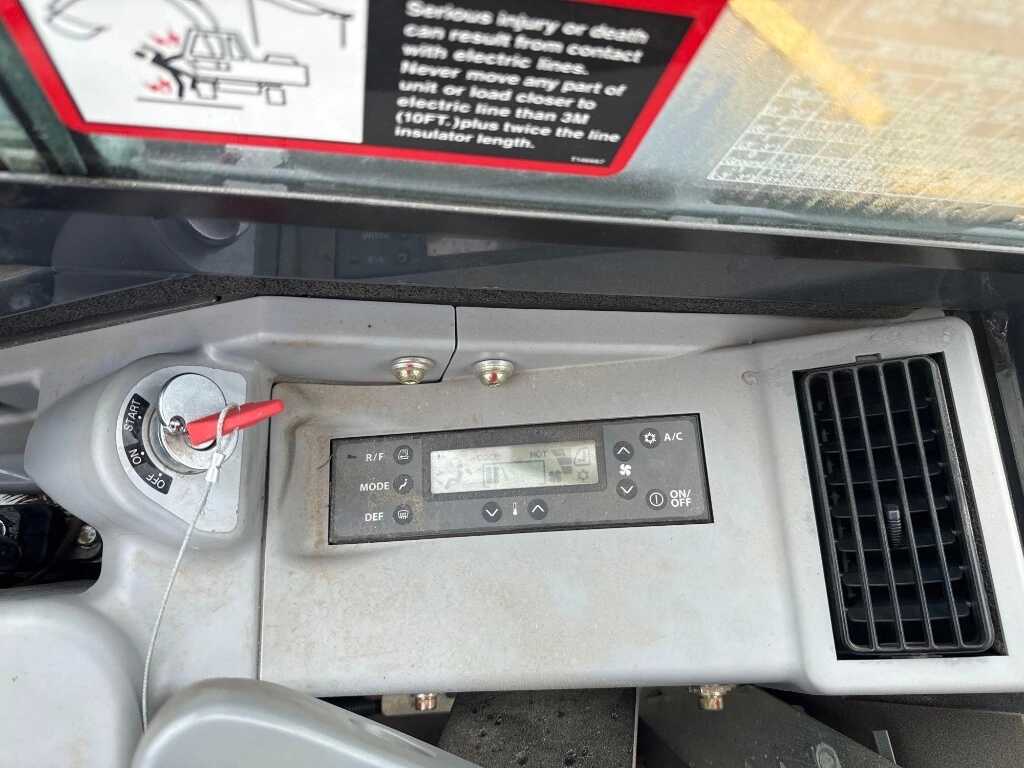

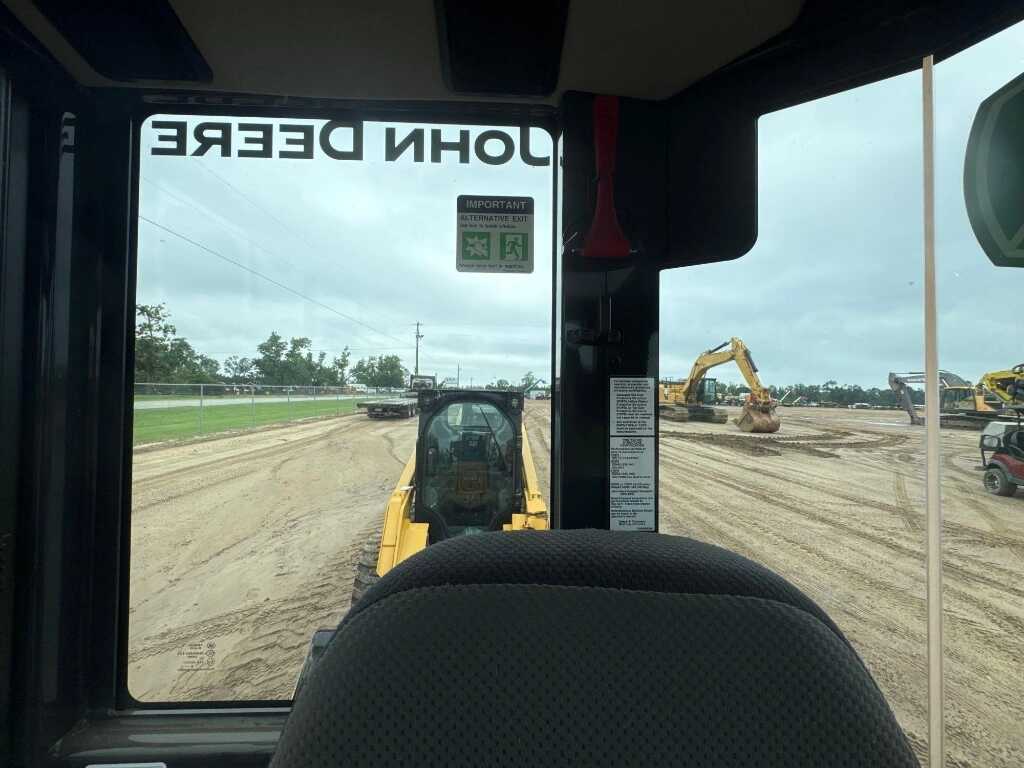

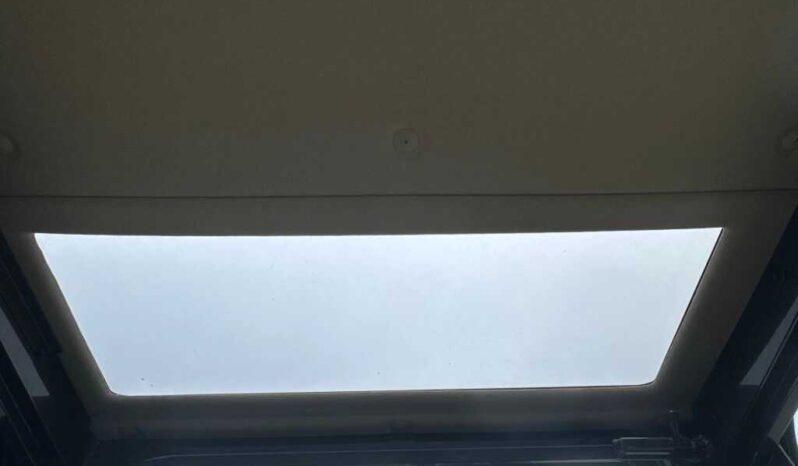

Cab: Standard pressurized cab with heating and air conditioning, ROPS/FOPS certified

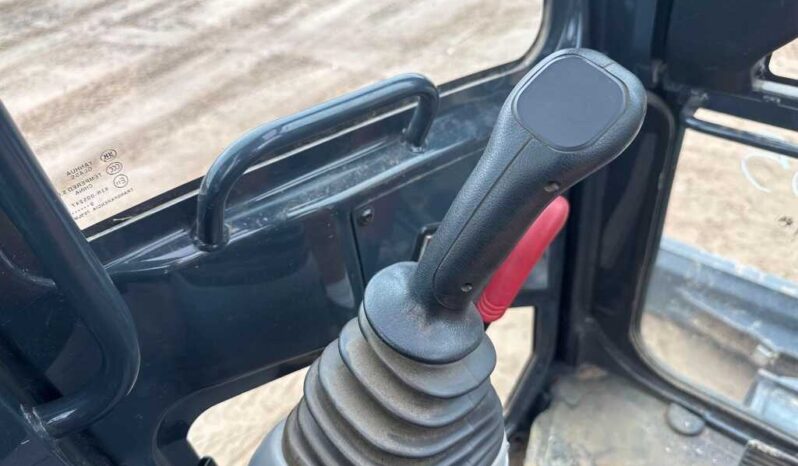

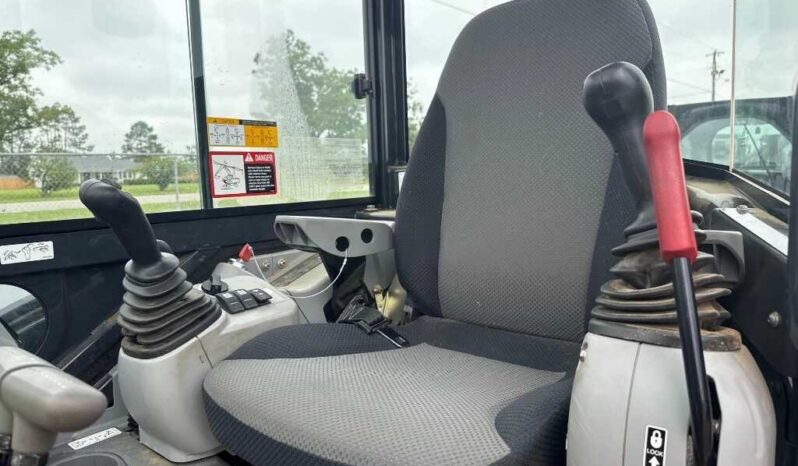

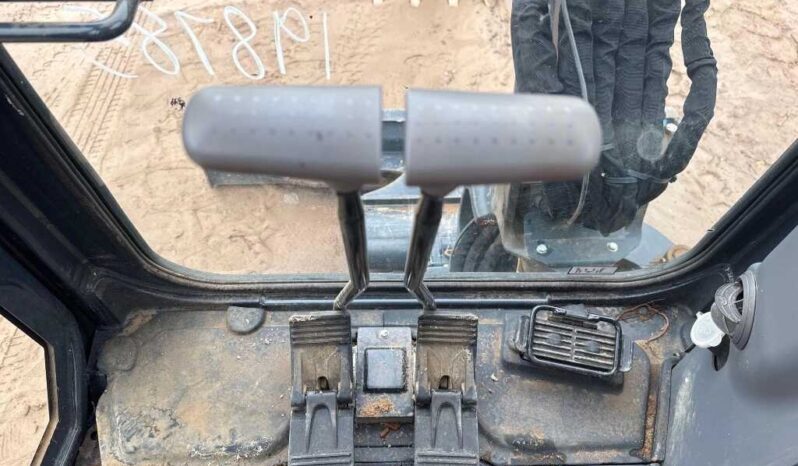

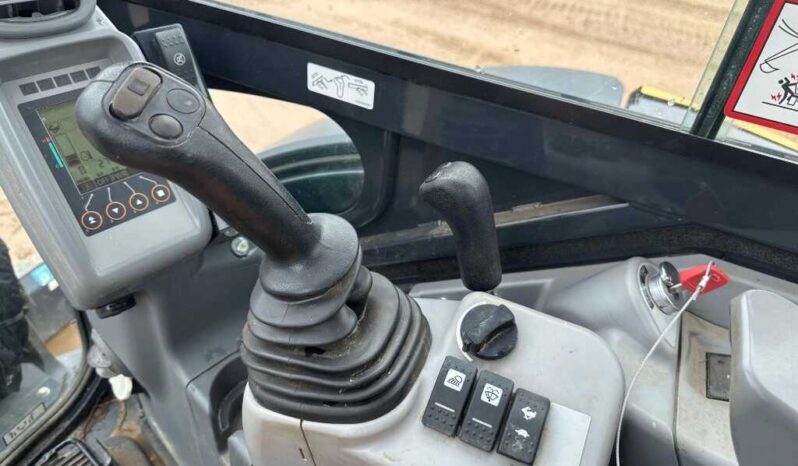

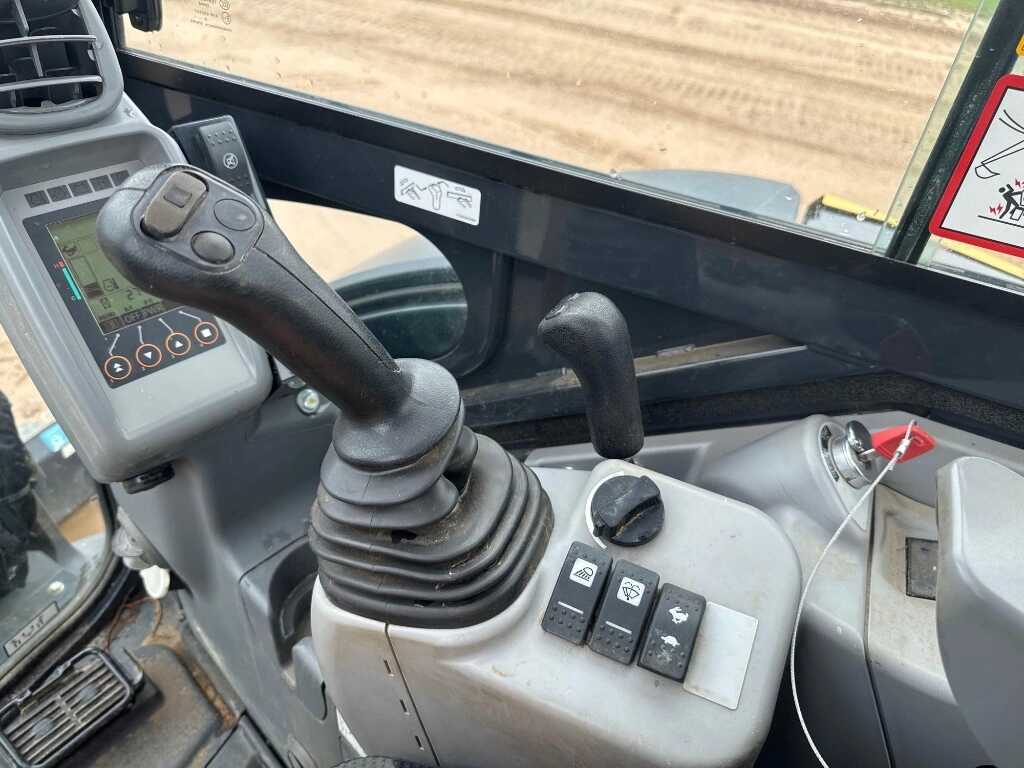

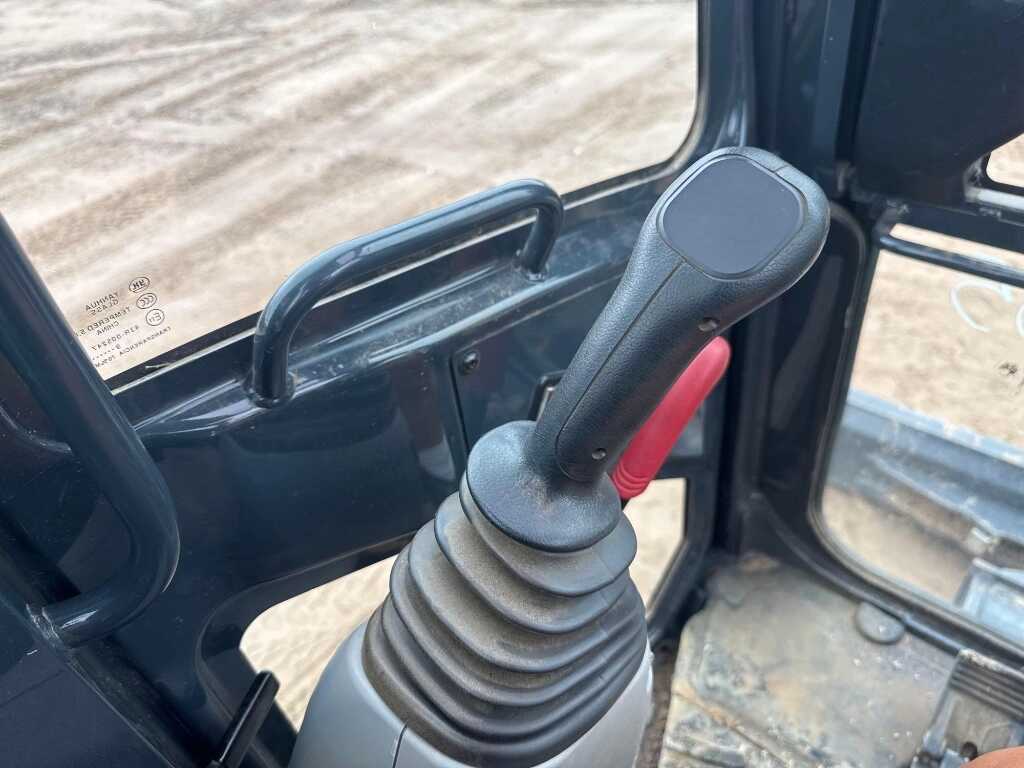

Controls: Two ISO-pattern joysticks with integrated travel levers, optional proportional auxiliary controls

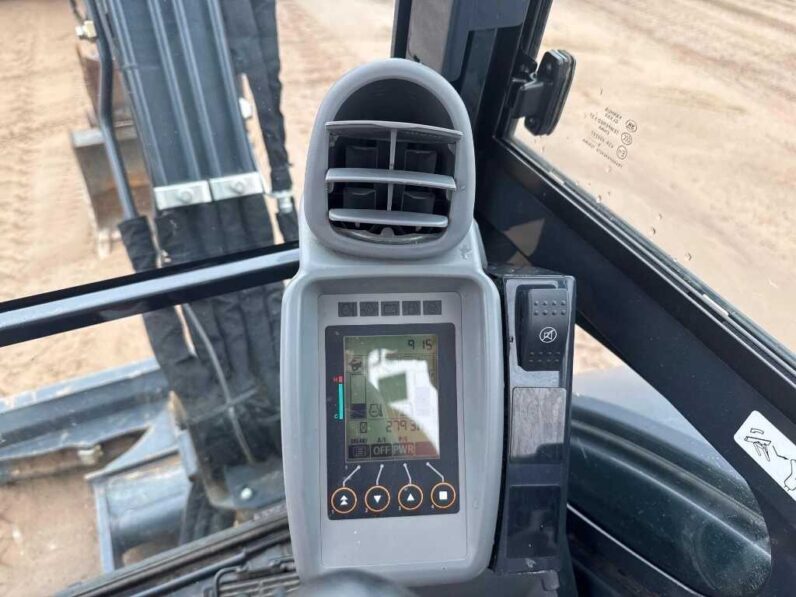

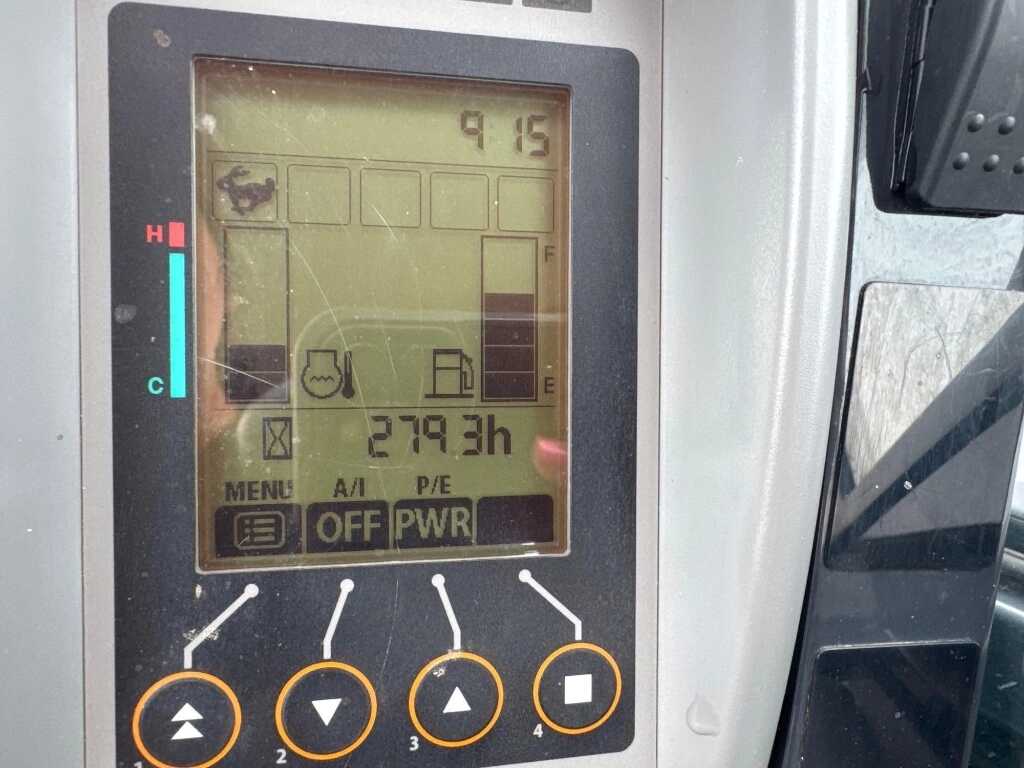

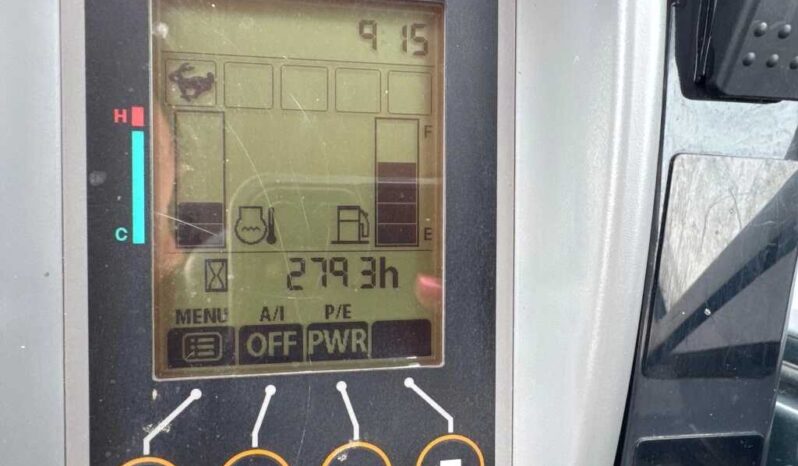

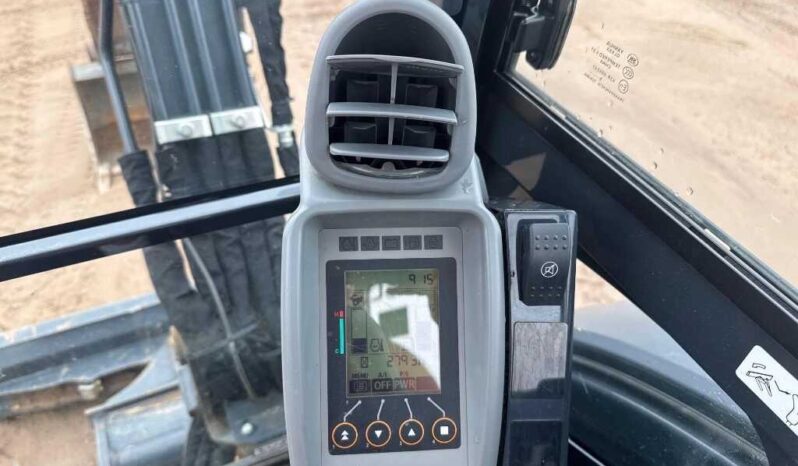

Display: Digital LCD monitor showing diagnostics, fuel level, operating hours, and maintenance alerts
Notable Features – 2020 Model Year
John Deere Intelligent Hydraulic System optimizes power and speed based on joystick input for efficient operation
Dual-Power Travel Mode allows selection between high-speed or high-torque travel
Auto Idle and Auto-Shutdown reduce fuel consumption and machine wear

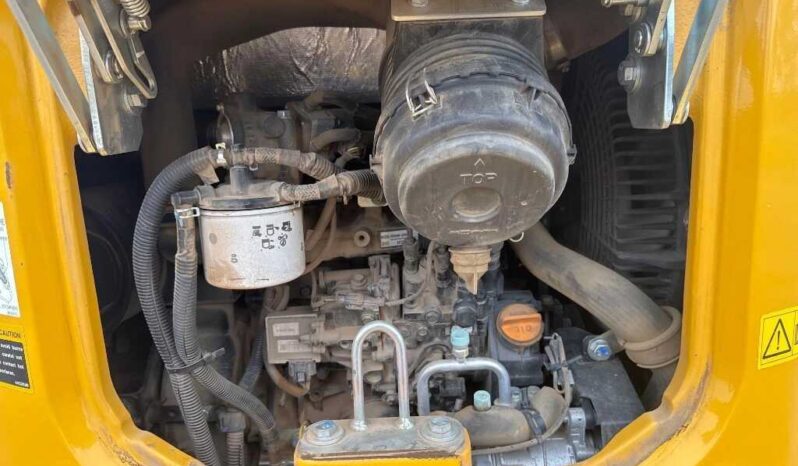

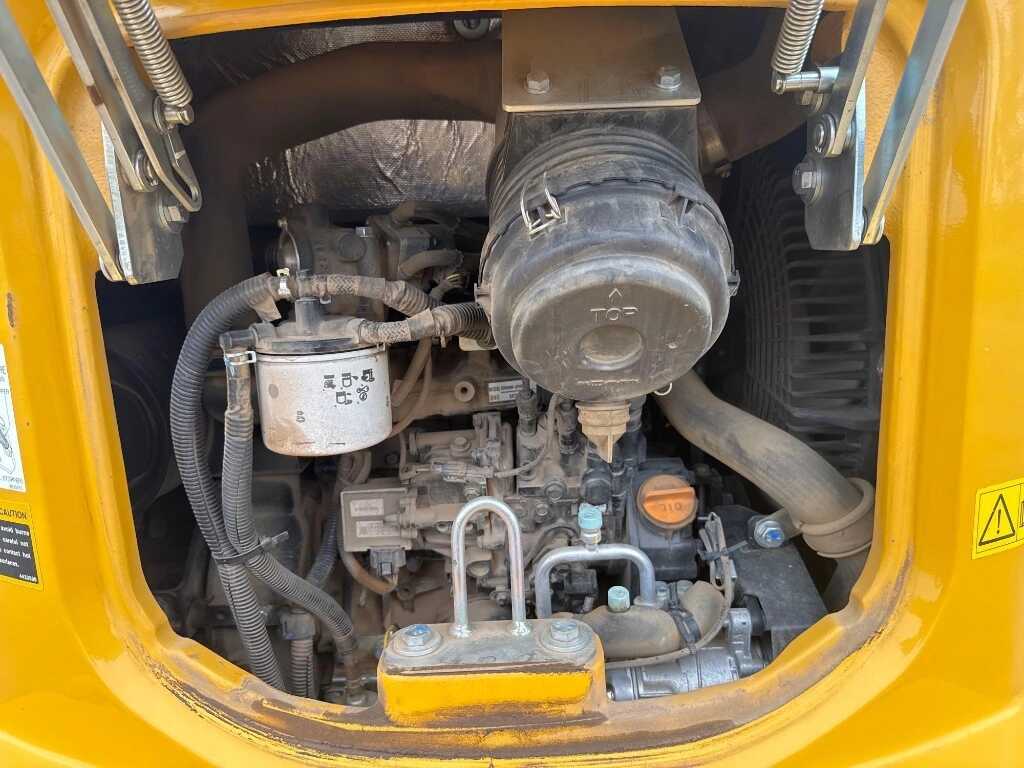

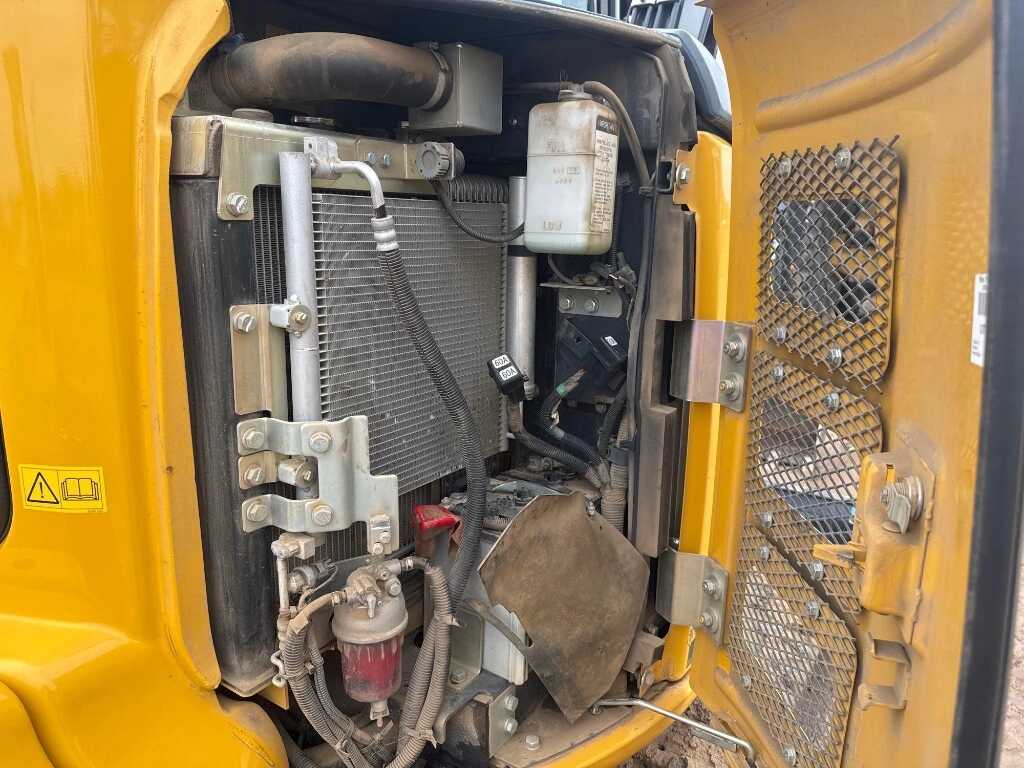

Easy open swing-out service doors provide quick access to engine, filters, and hydraulics
Advanced monitor often includes passcode security and detailed machine health data
