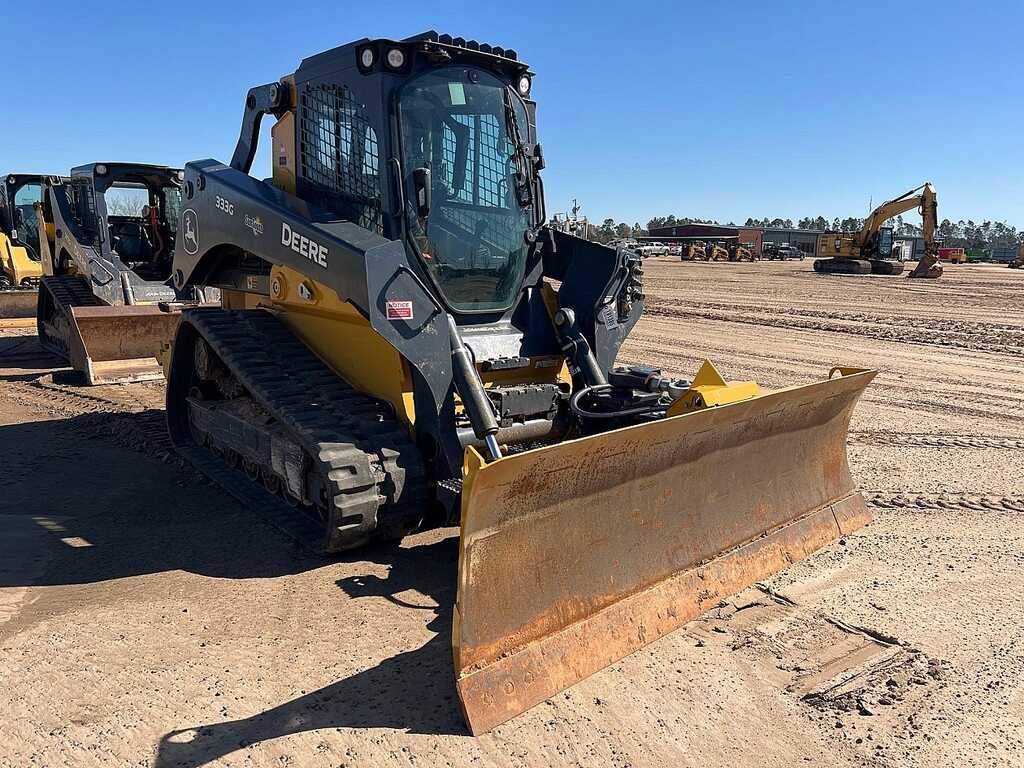

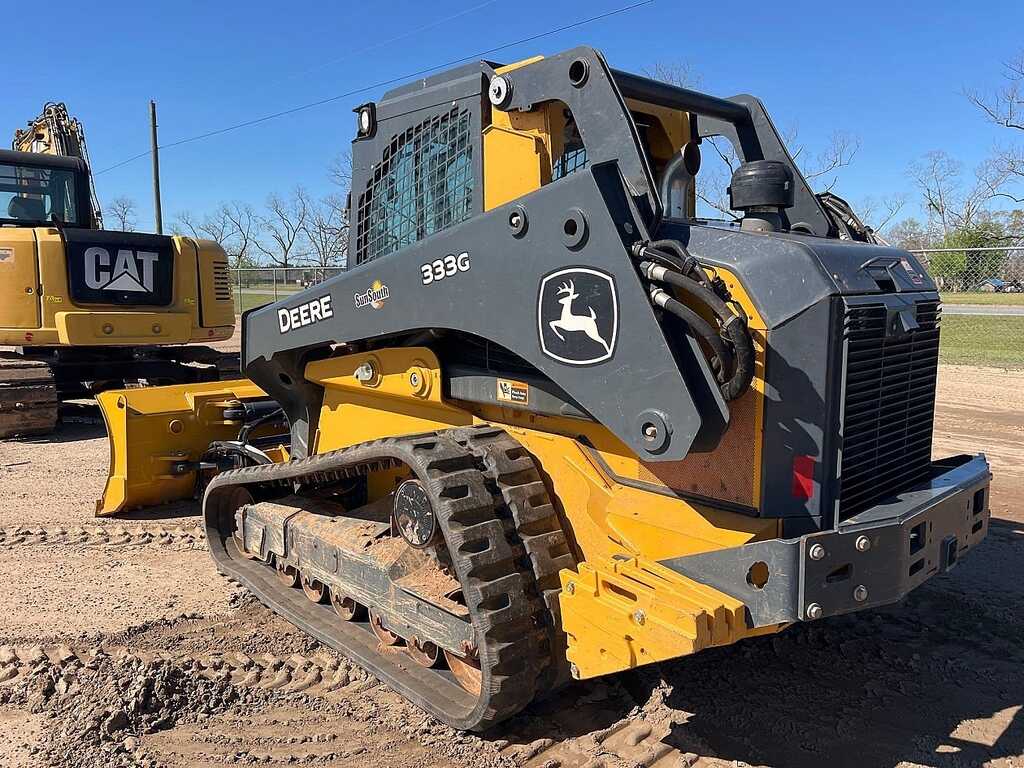

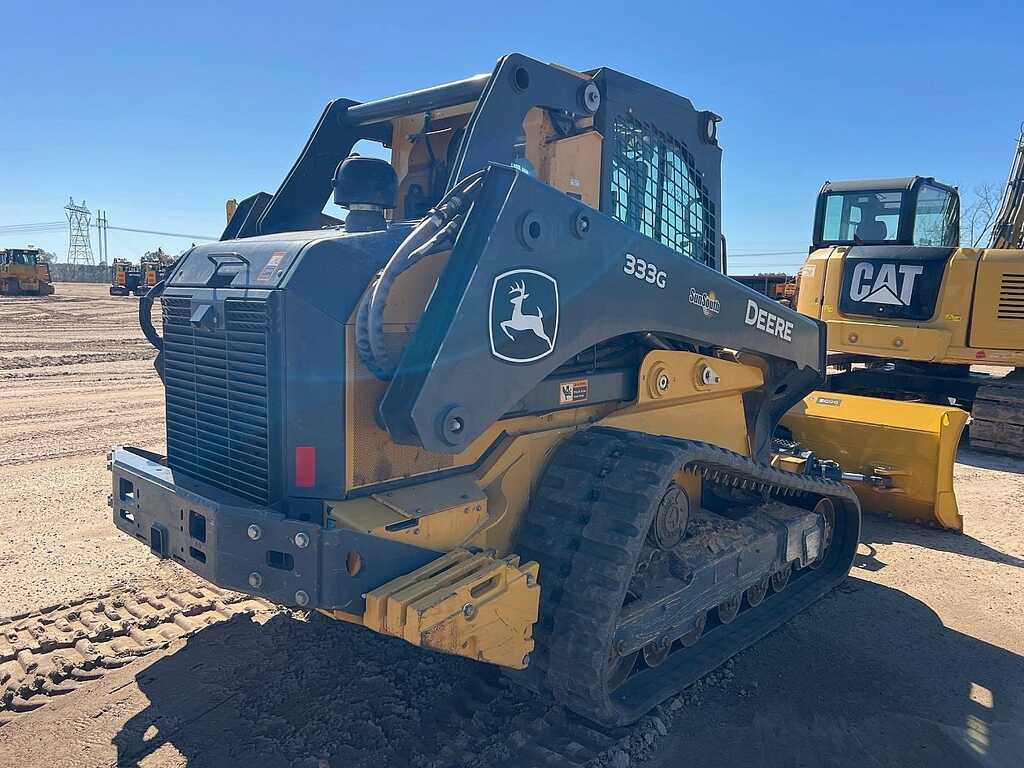

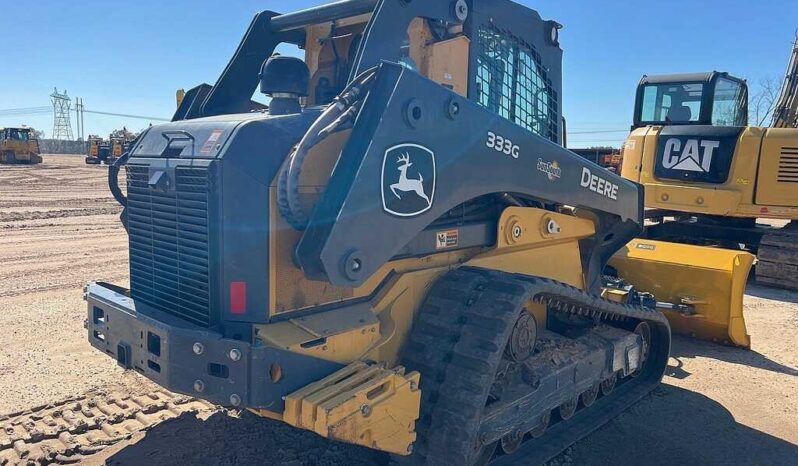

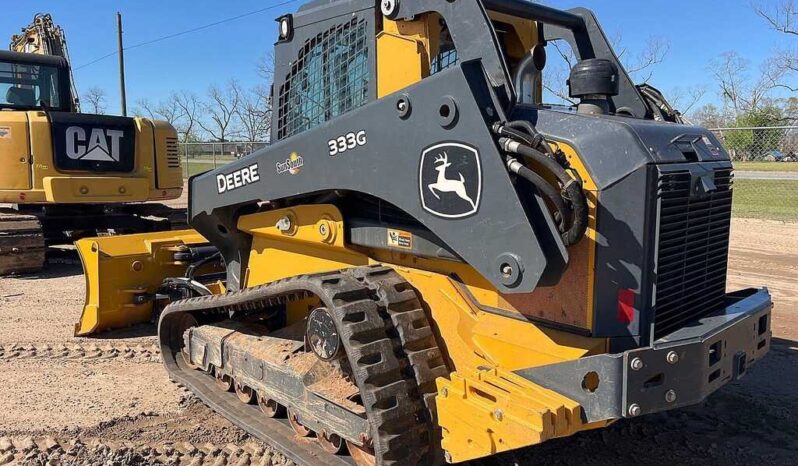

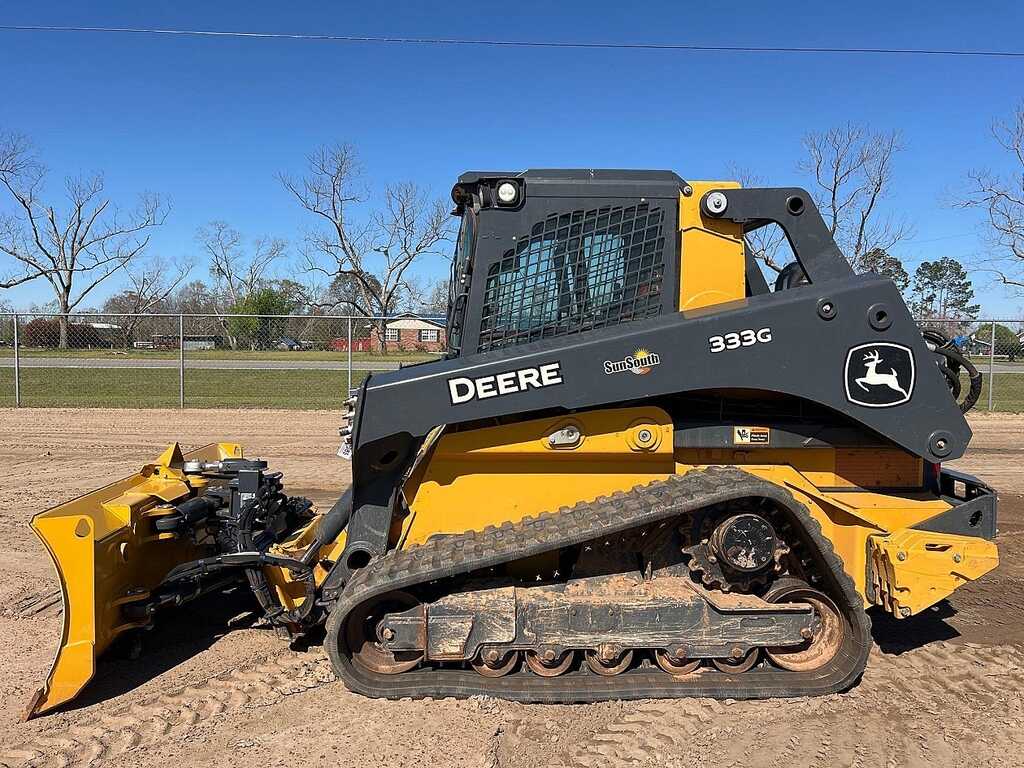

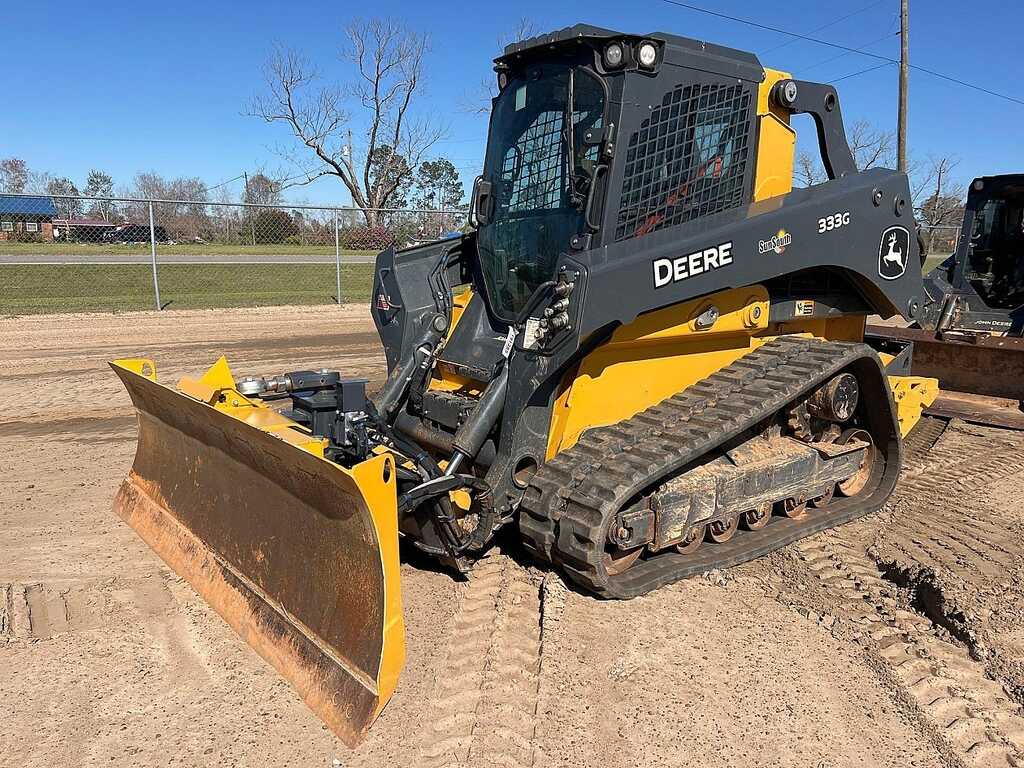

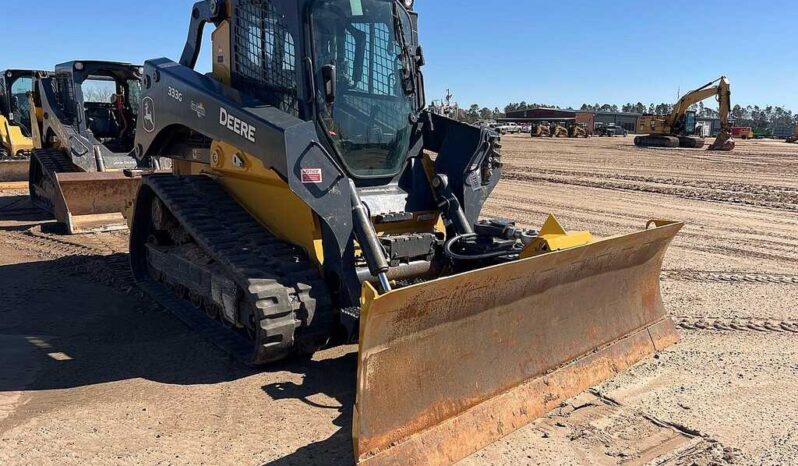

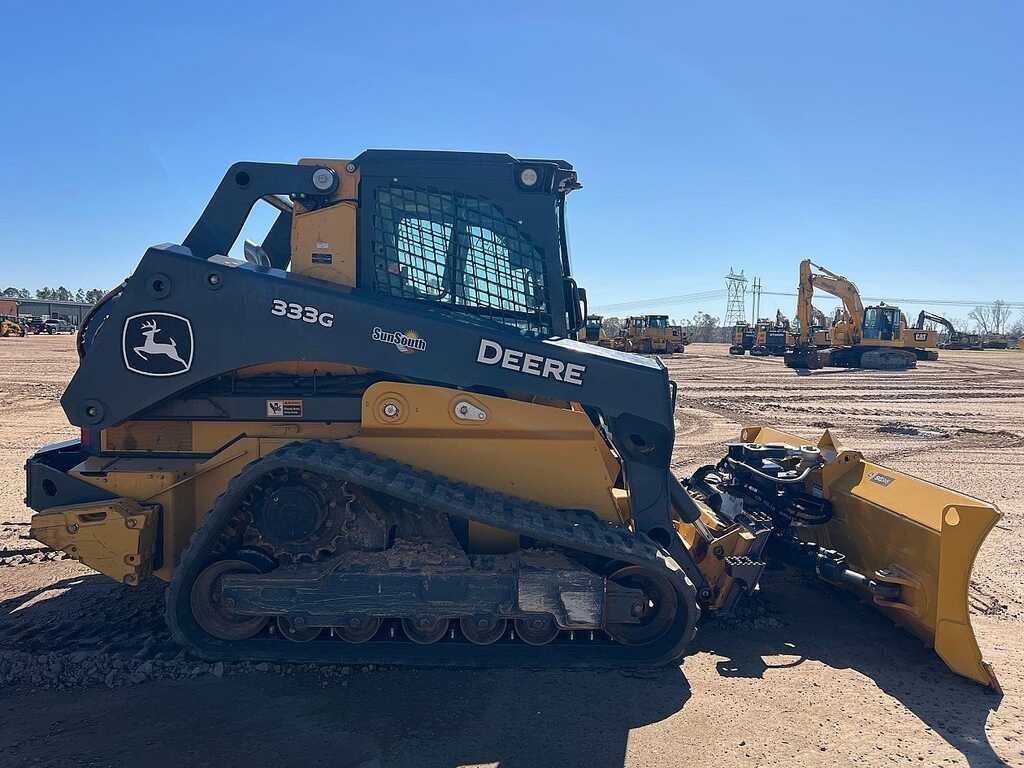

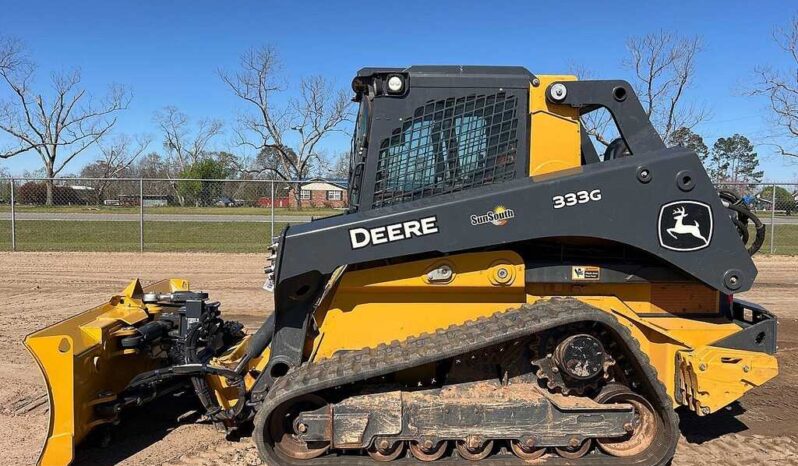

This 2023 John Deere 333G is in absolutely like-new condition and is fully equipped to tackle your toughest tasks. Featuring high-flow hydraulics, a spacious cab with heat, air conditioning, and a radio, this machine offers both comfort and power. Additional features include a John Deere SG96 – 6 Way Blade, 2-speed transmission, power quick attach, selectable joystick controls, a reversing fan, and counterweights for stability.
Key Features:
High-flow hydraulics for superior performance
EROPS (Enclosed Cab) with heat, A/C, and radio

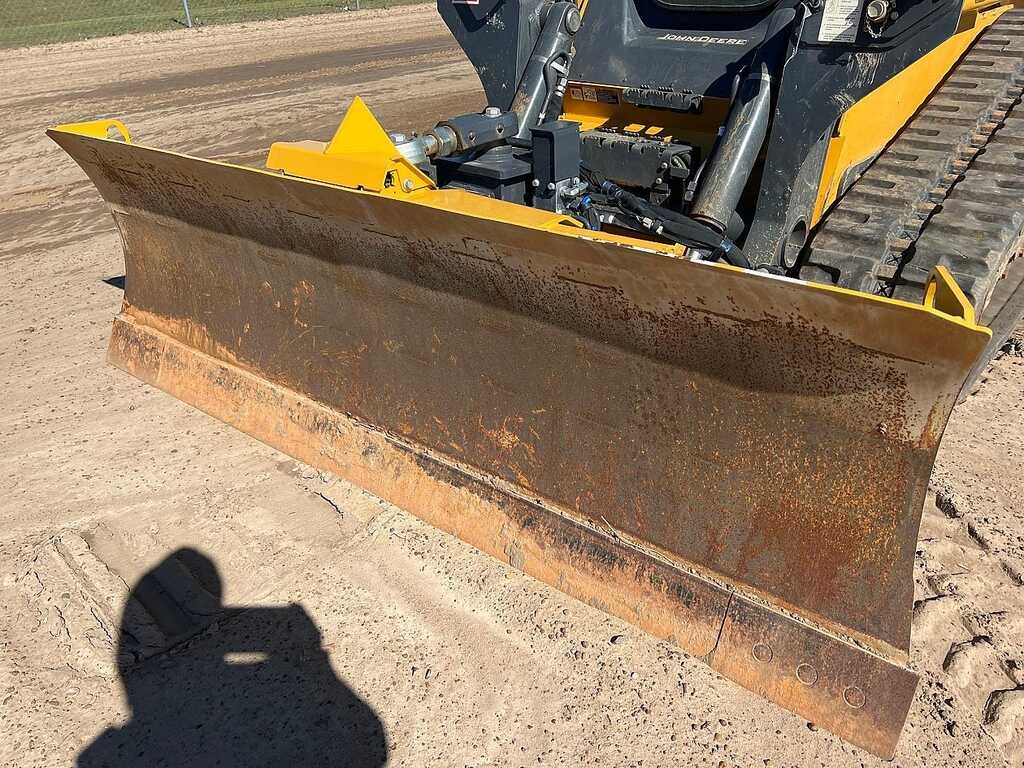

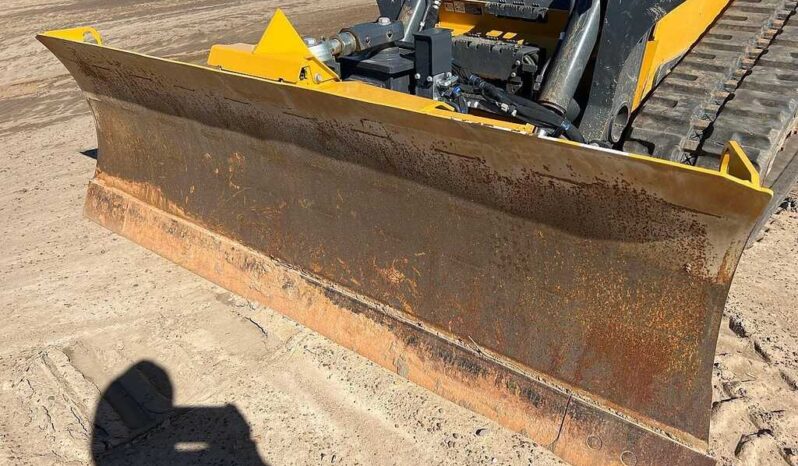

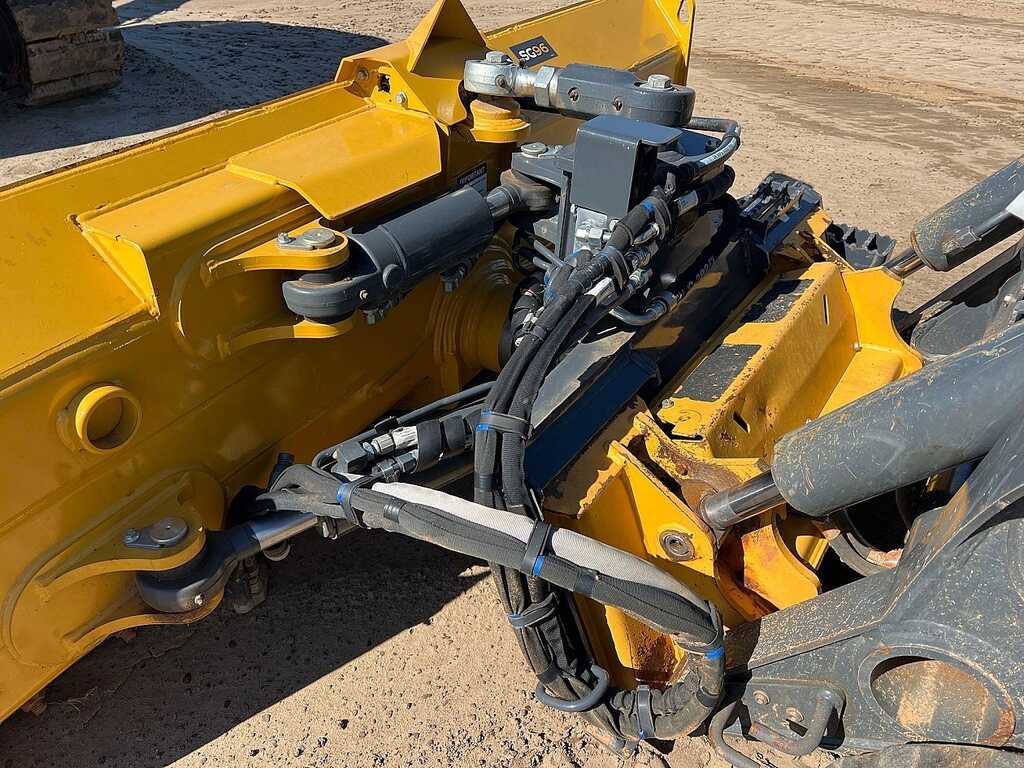

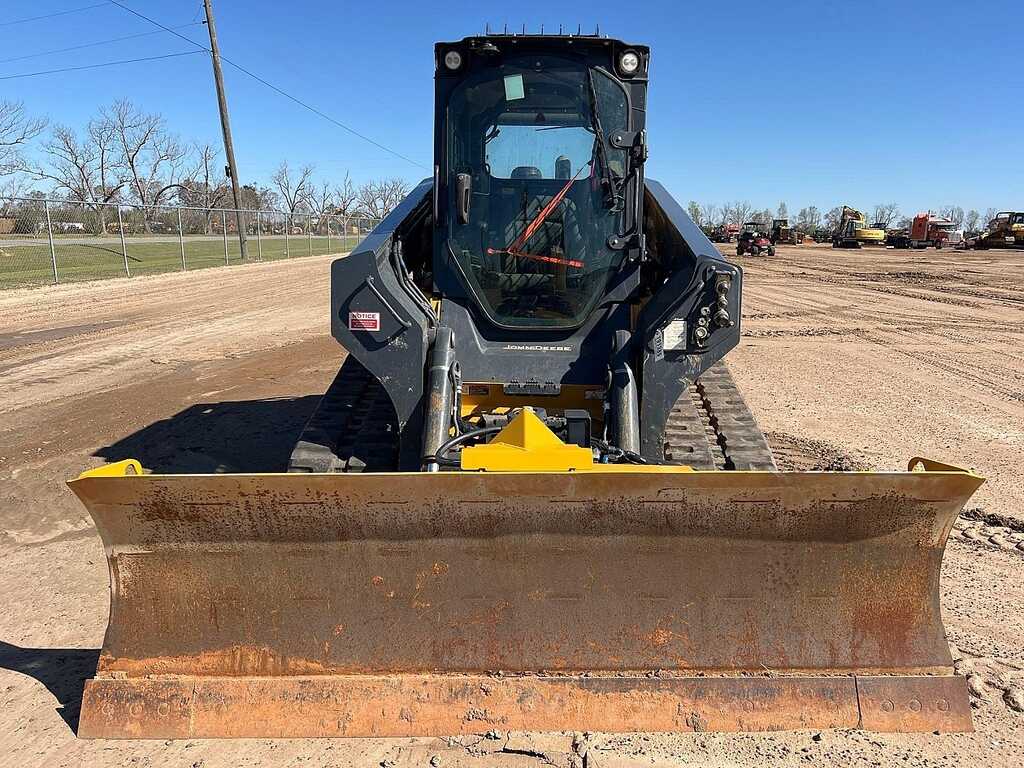

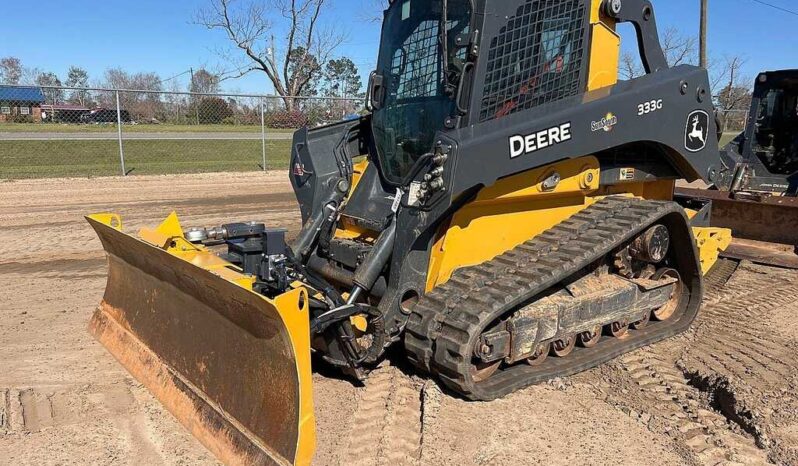

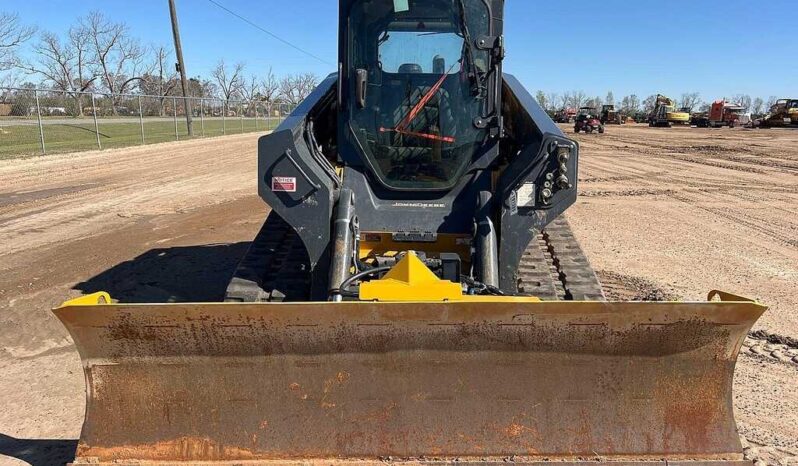

John Deere SG96 – 6 Way Blade for versatile blade control

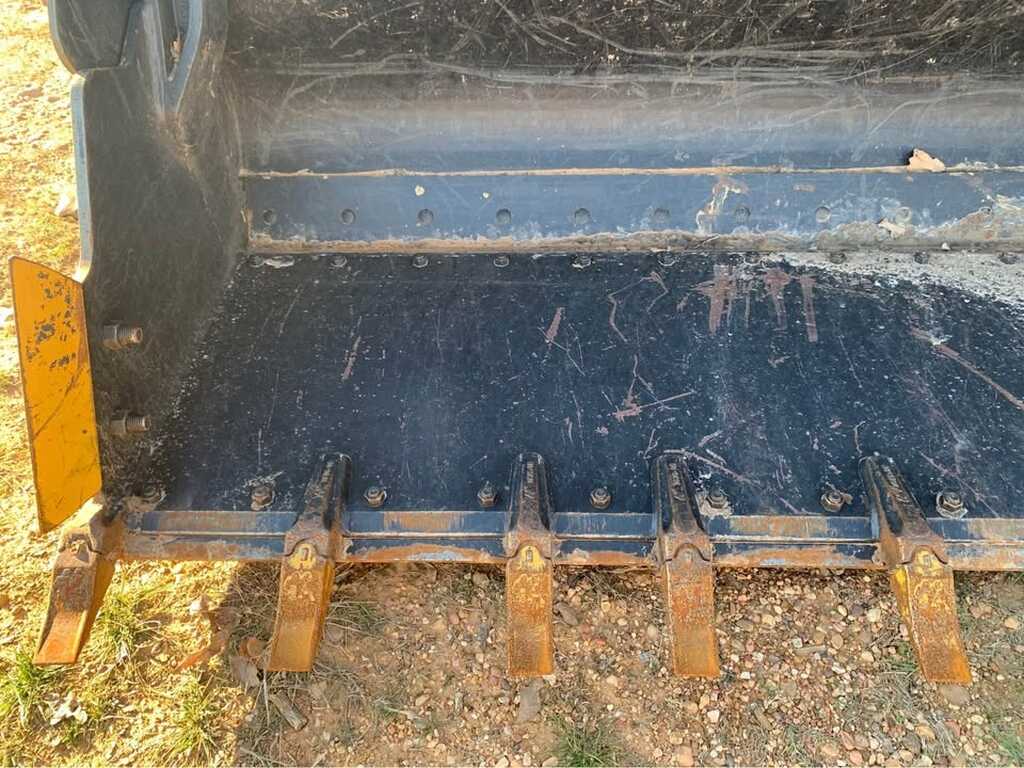

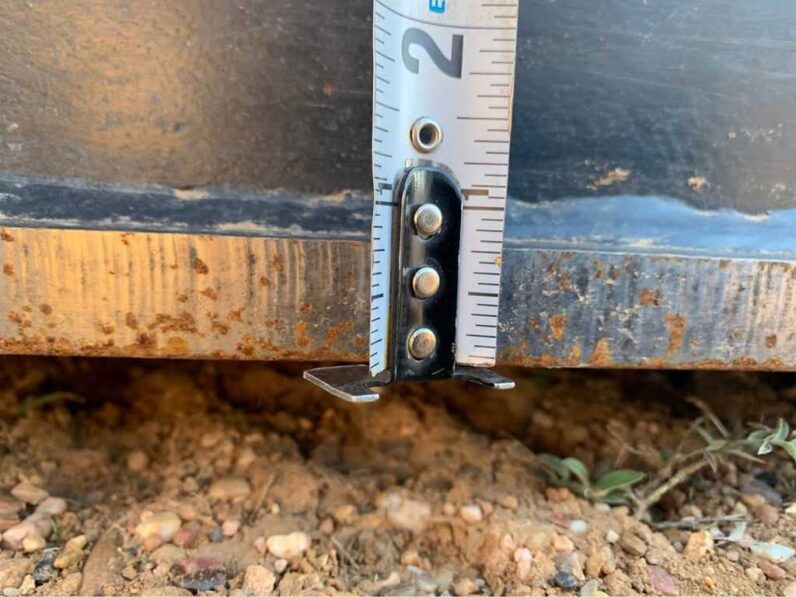

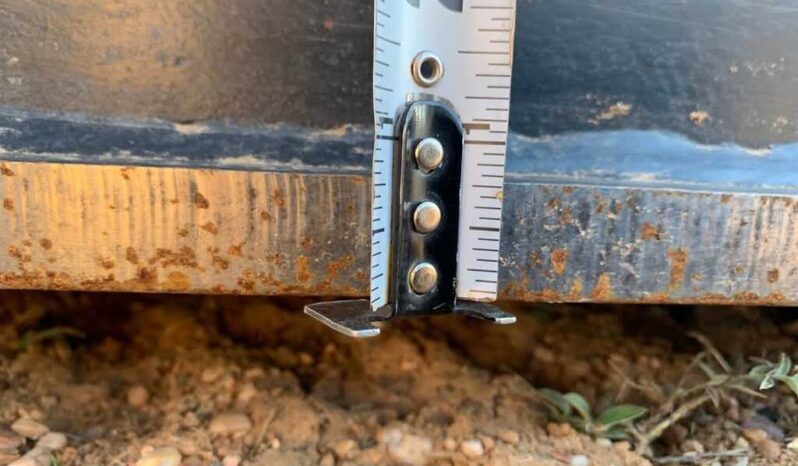

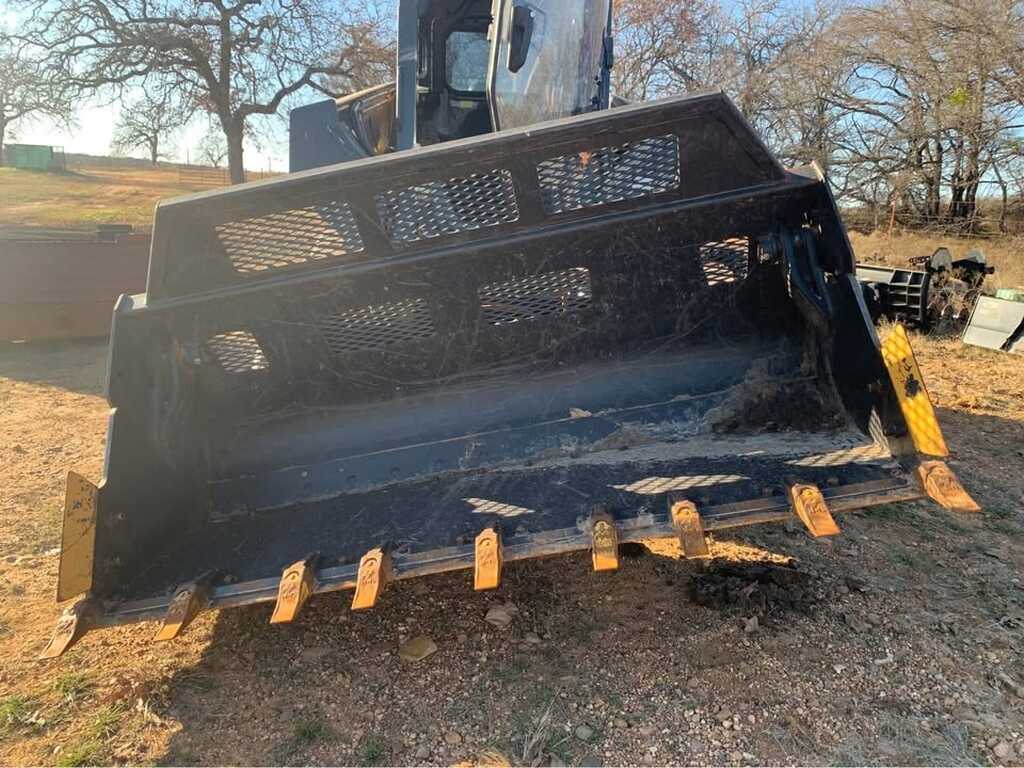

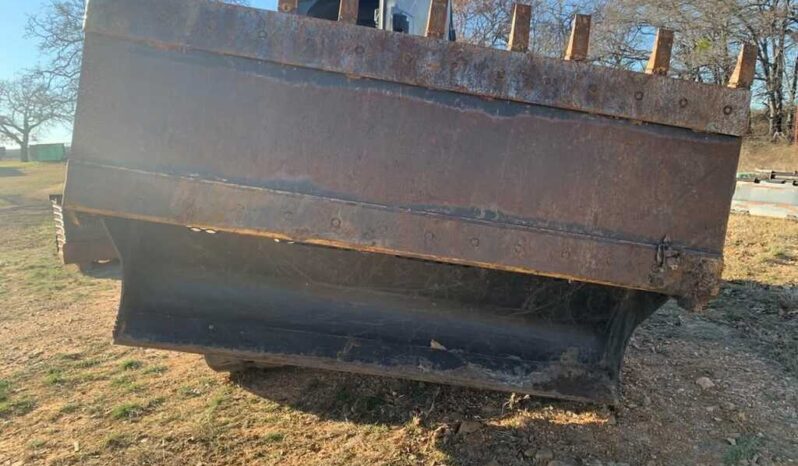

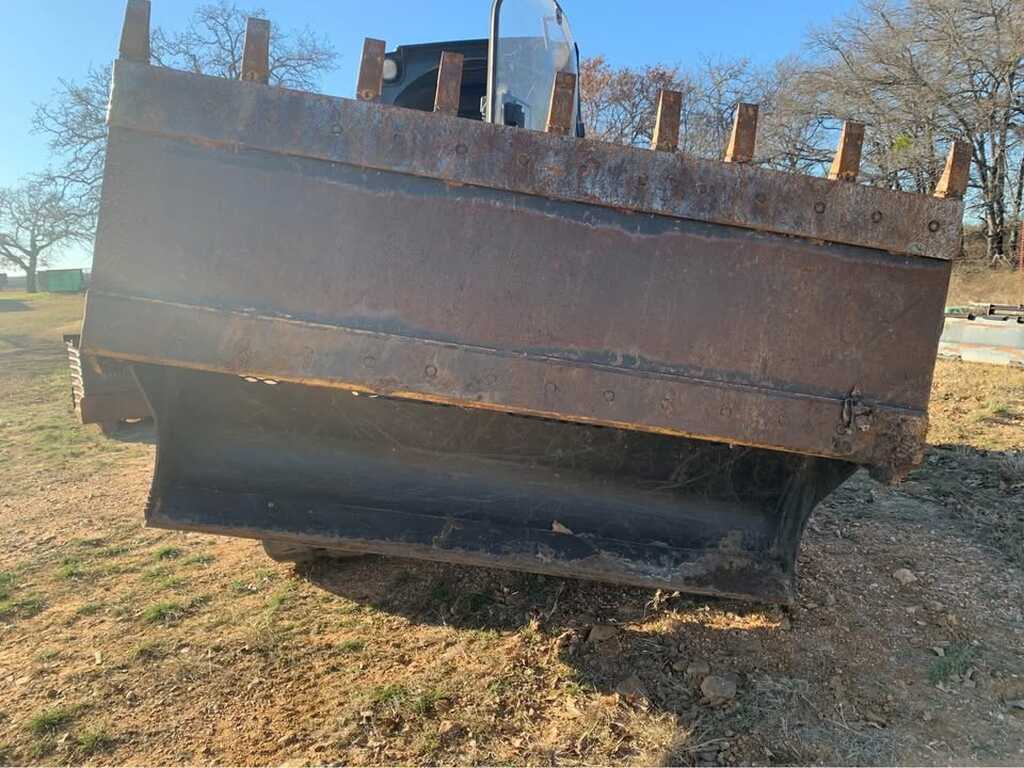

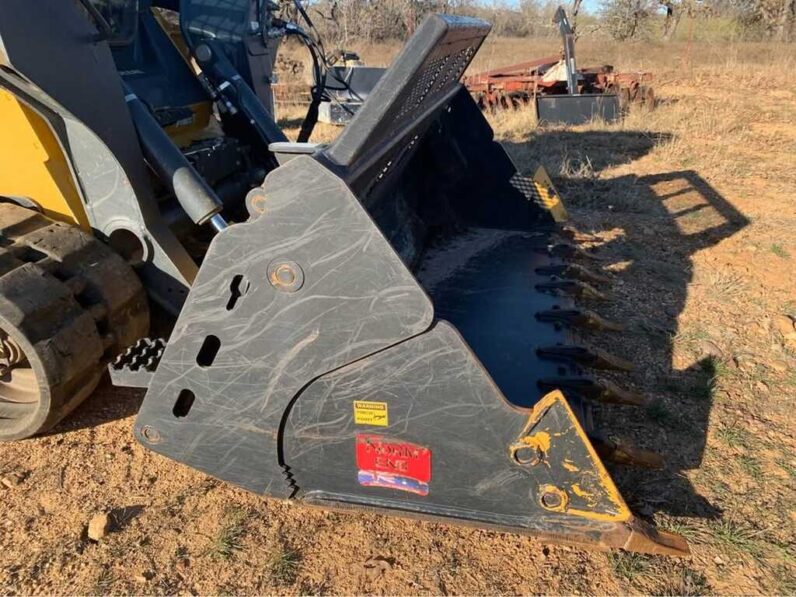

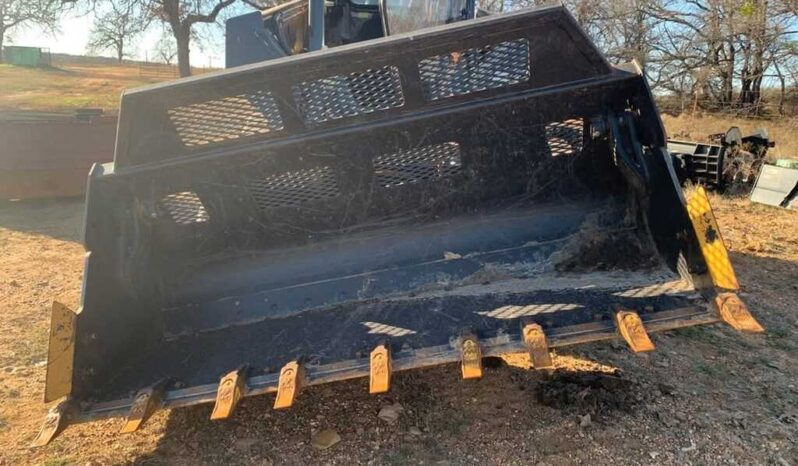

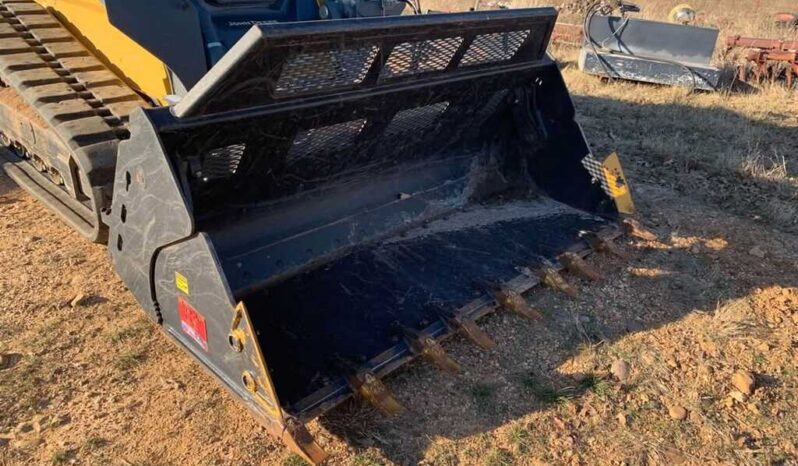

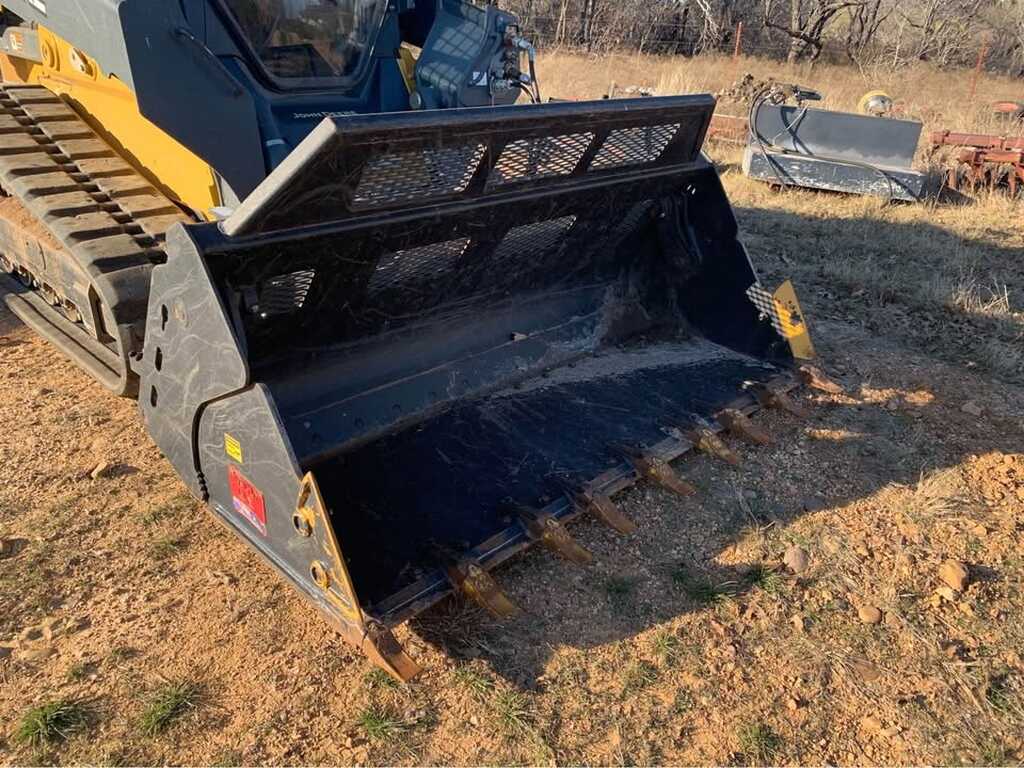

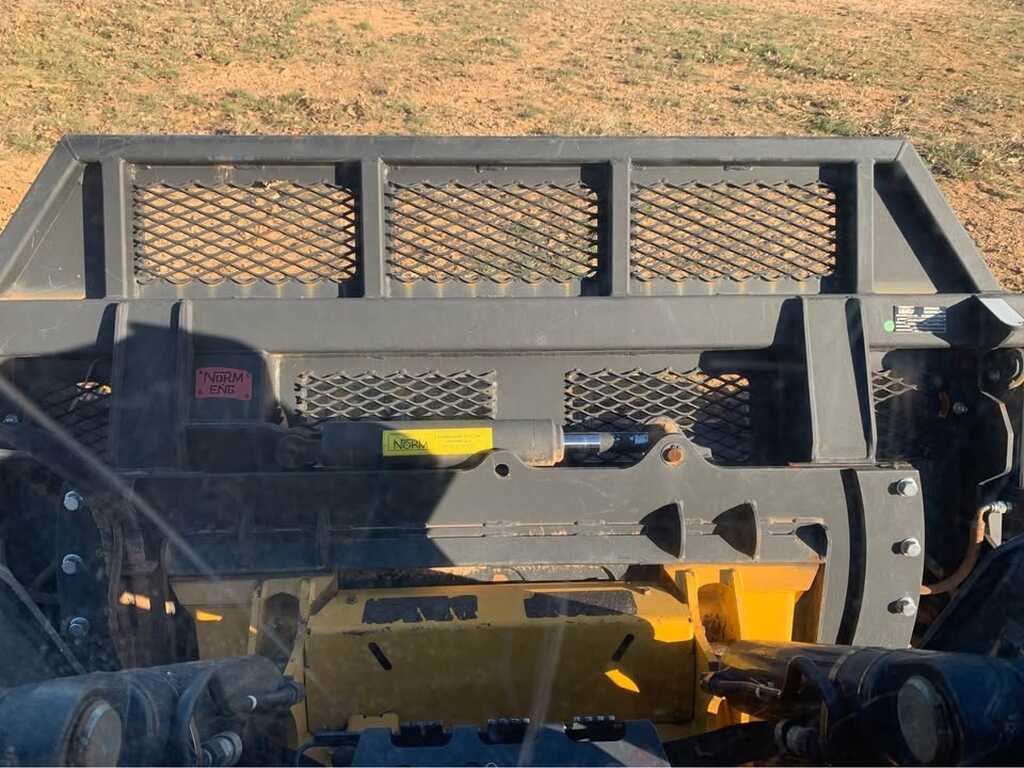

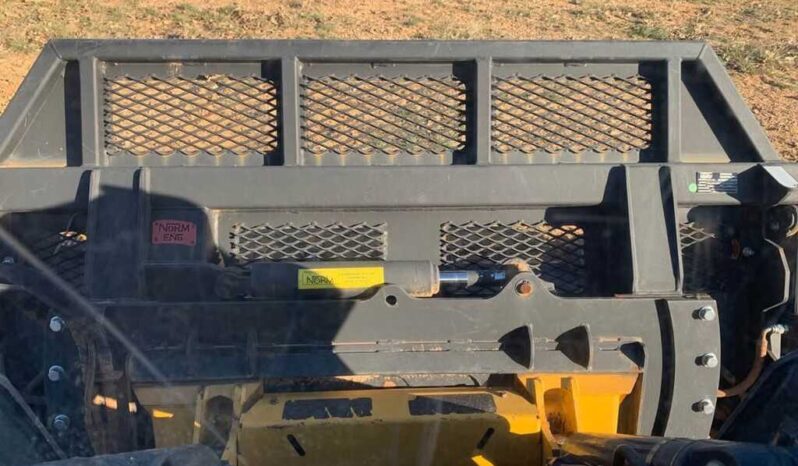

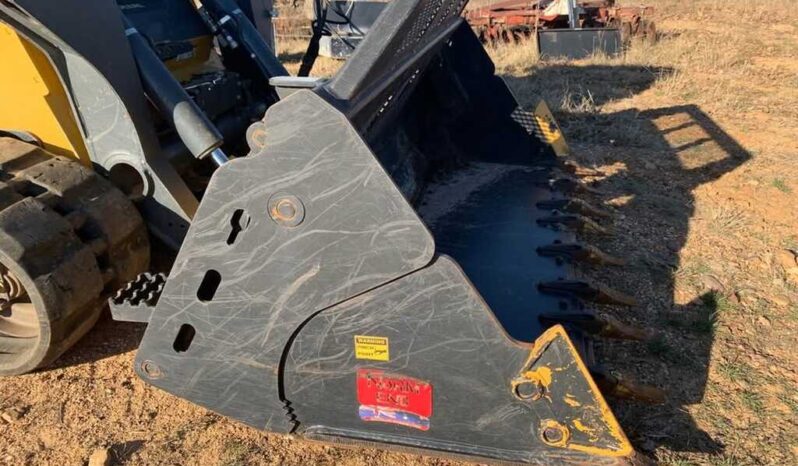

84” Pro Series Norm Engineering Bucket: 4-in-1 bucket with tilt control, spill guard, 3/4” floor, 3 cutting edges, and teeth
Heated air-ride seat, ISO controls, and backup camera integrated into the display
2D grade system, aux valves, and counterweights
This loader is ready to deliver reliability, comfort, and power for your construction and landscaping needs.
Performance & Dimensions
Rated Operating Capacity (ISO): 1,360 kg (3,000 lb)
Operating Weight: Approximately 4,445 kg (9,800 lb) (varies with configuration)
Horsepower: 74 hp (55.2 kW) – John Deere PowerTech™ PVS 2.4L diesel engine
Length with Bucket: 4,740 mm (186.6 in)
Width Over Tracks: 2,134 mm (84 in) with standard 381 mm (15 in) tracks
Height to Top of ROPS: 2,407 mm (94.8 in)
Ground Clearance: 330 mm (13 in)
Tipping Load (Straight): 2,722 kg (6,000 lb)

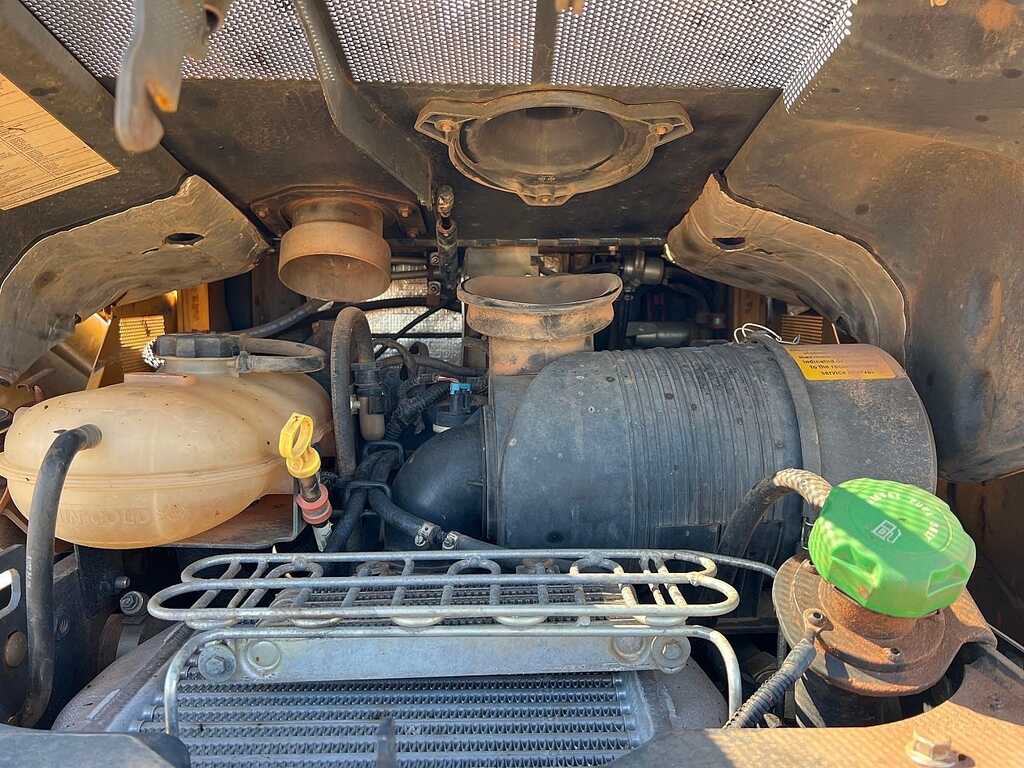

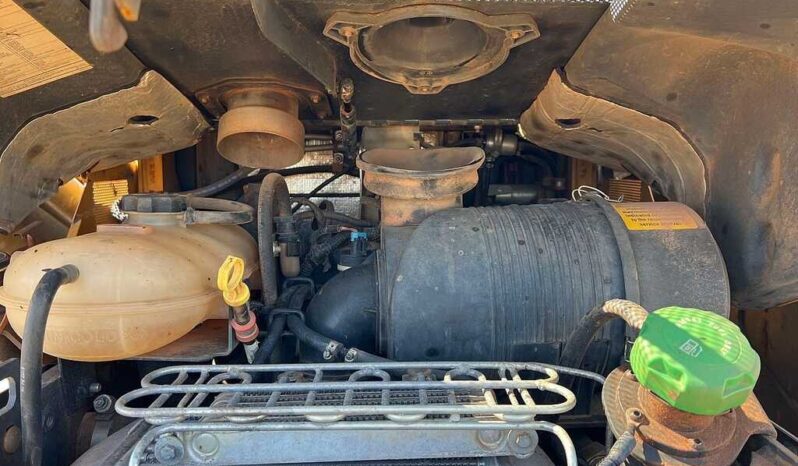

Powertrain & Engine
Engine Model: John Deere PowerTech™ PVS 2.4L
Displacement: 2.4 L (144 cu in)
Net Power (ISO 9249): 74 hp (55.2 kW)
Cooling System: Liquid-cooled
Fuel Tank Capacity: 98 L (26 US gal)
Drive System: Two-speed hydrostatic drive with optional high-flow capability

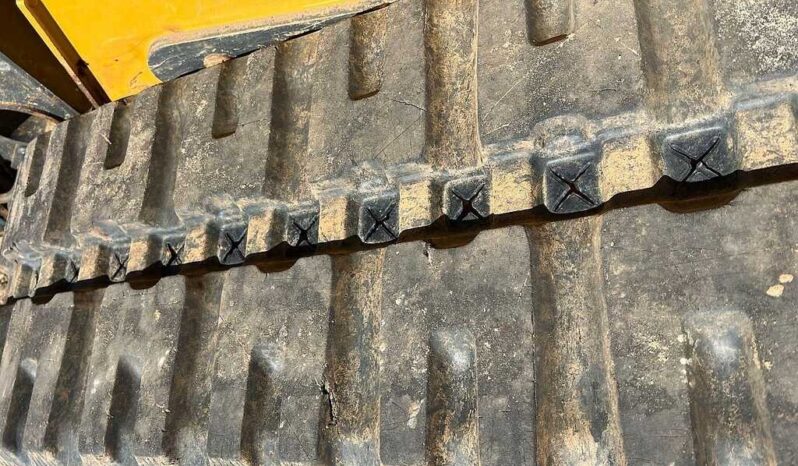

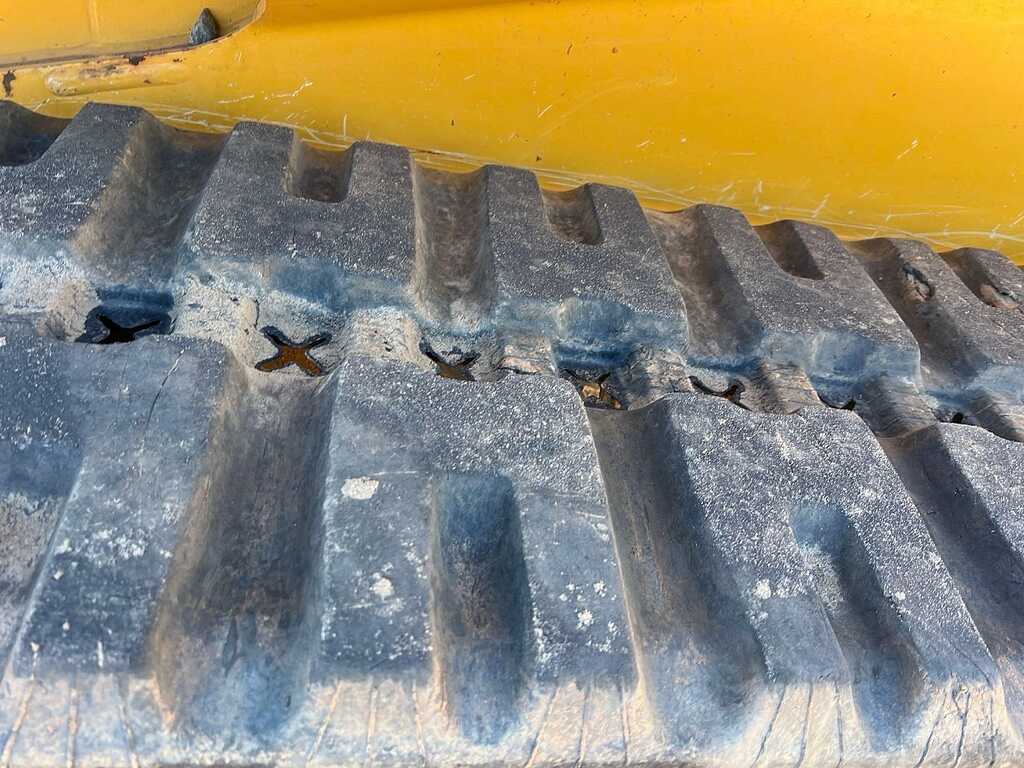

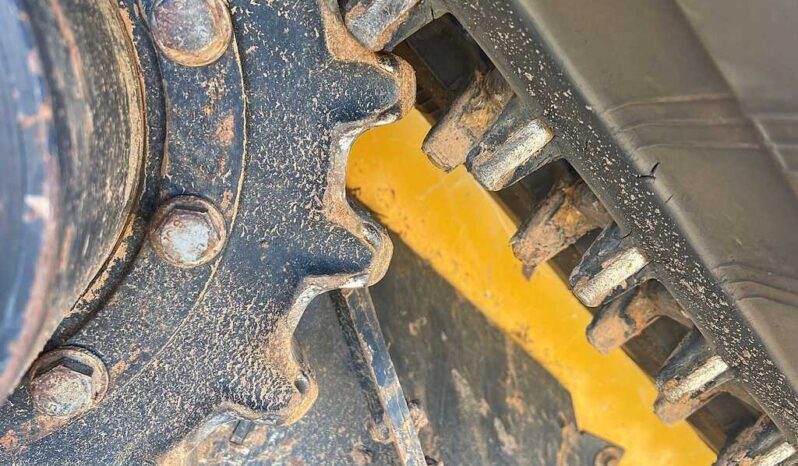

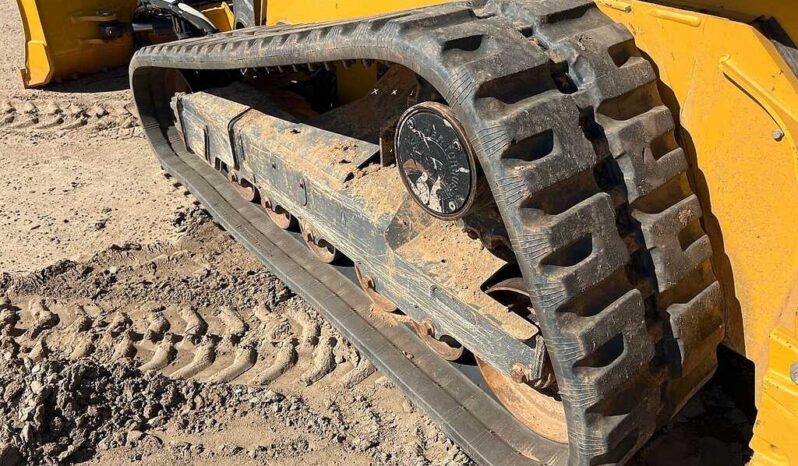

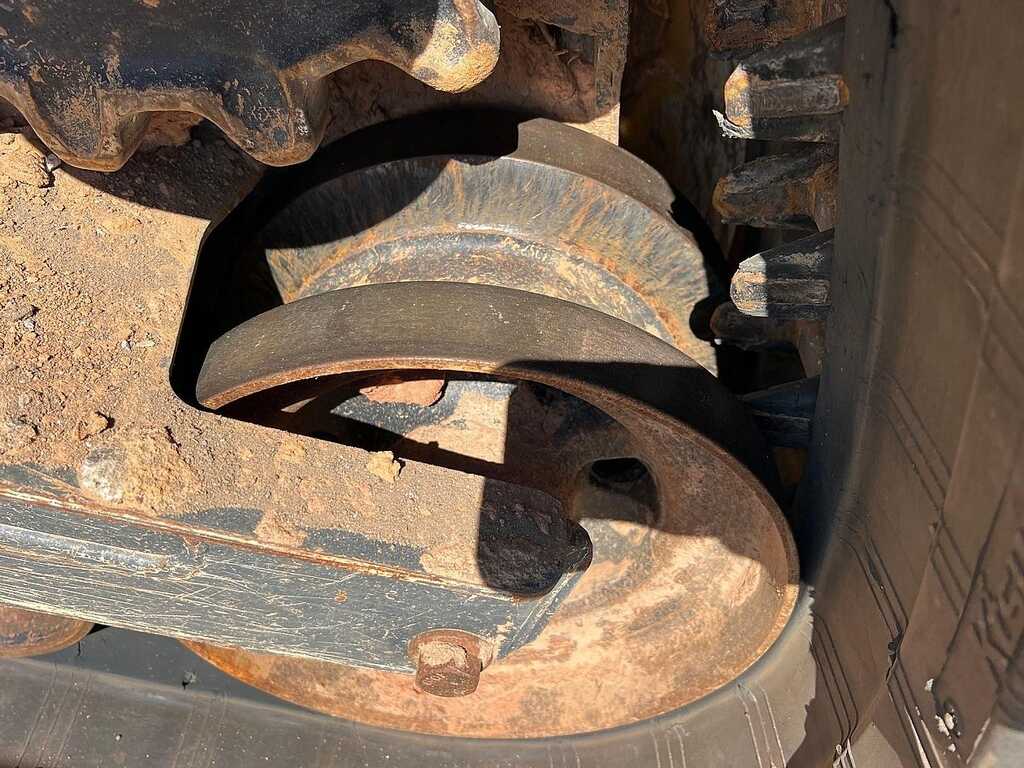

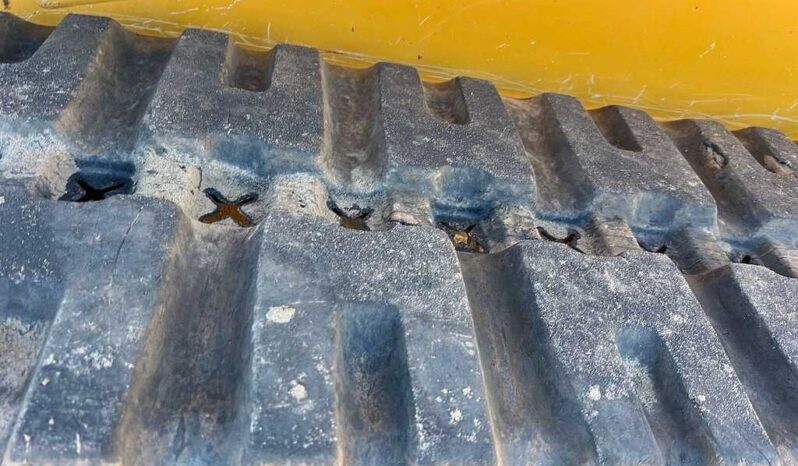

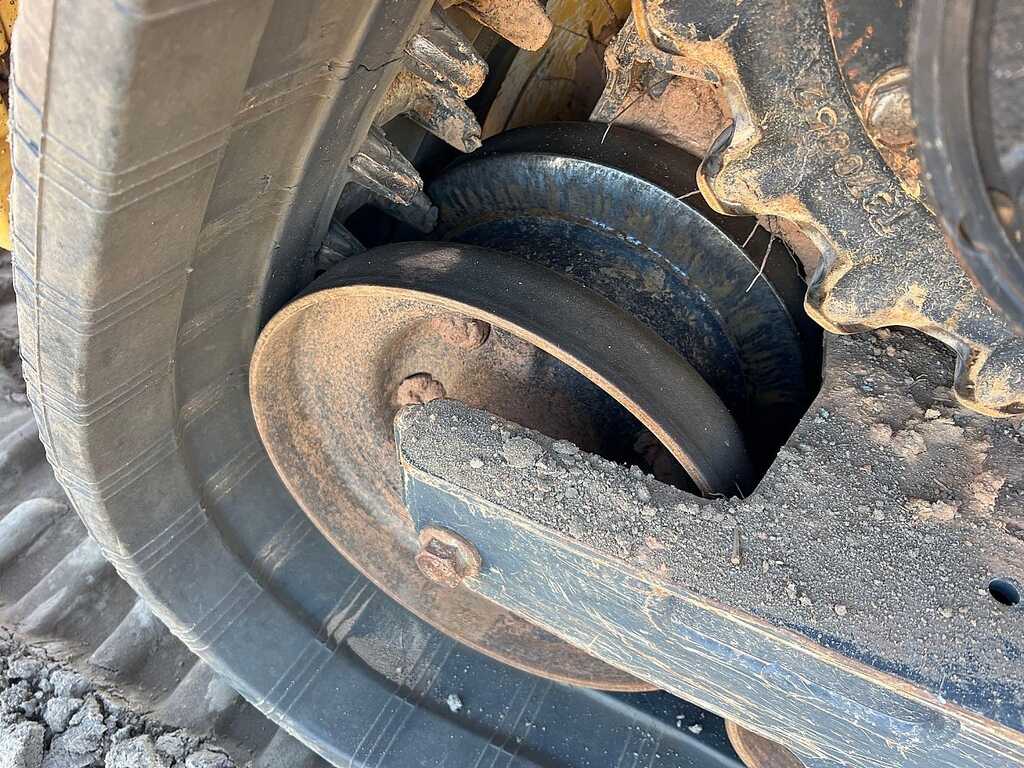

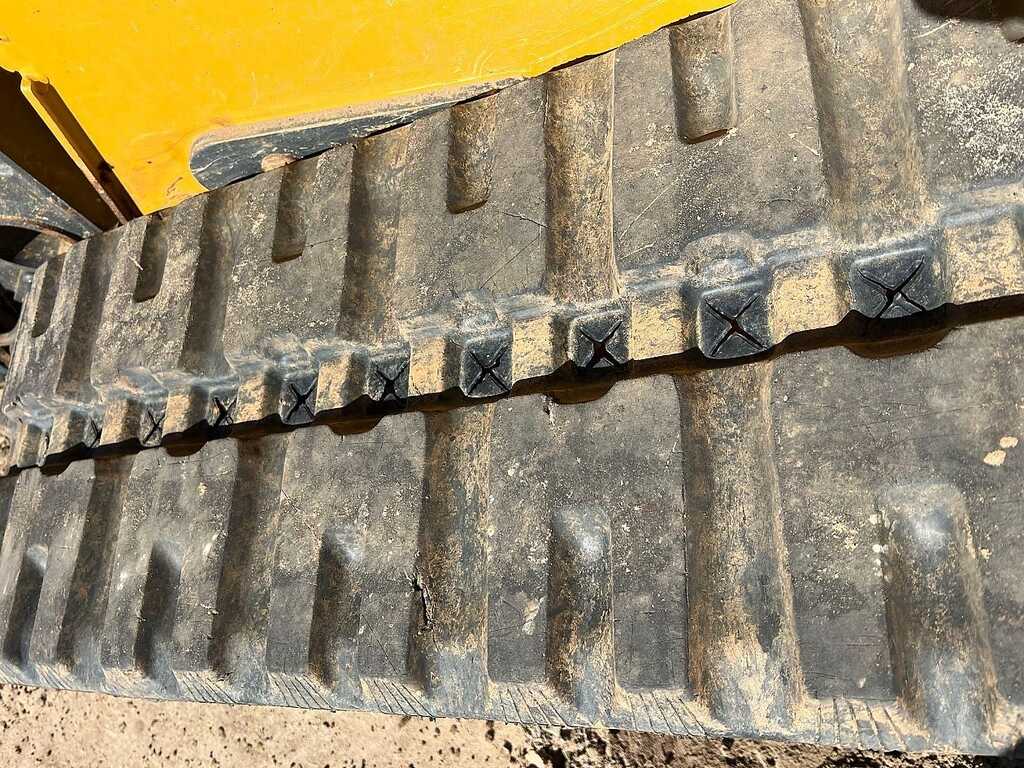

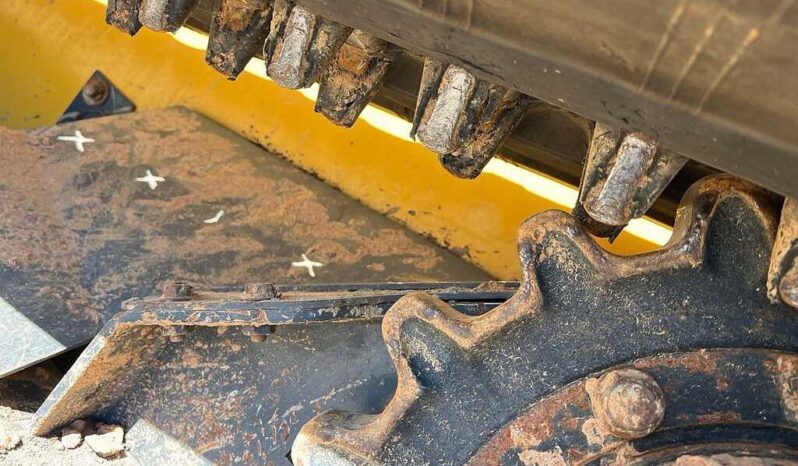

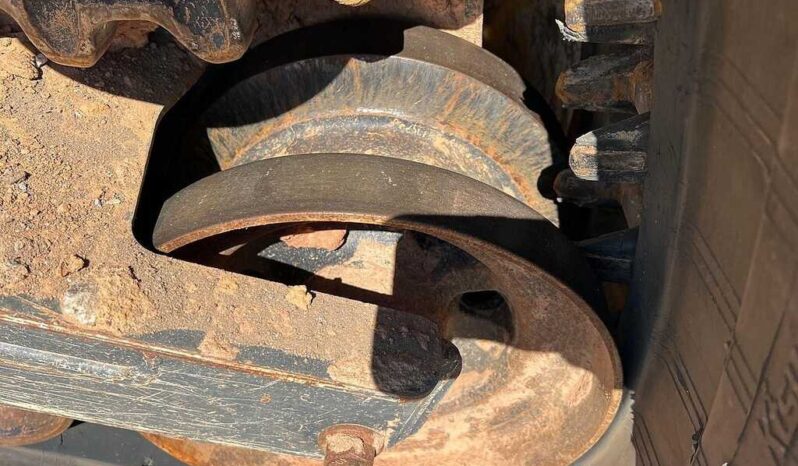

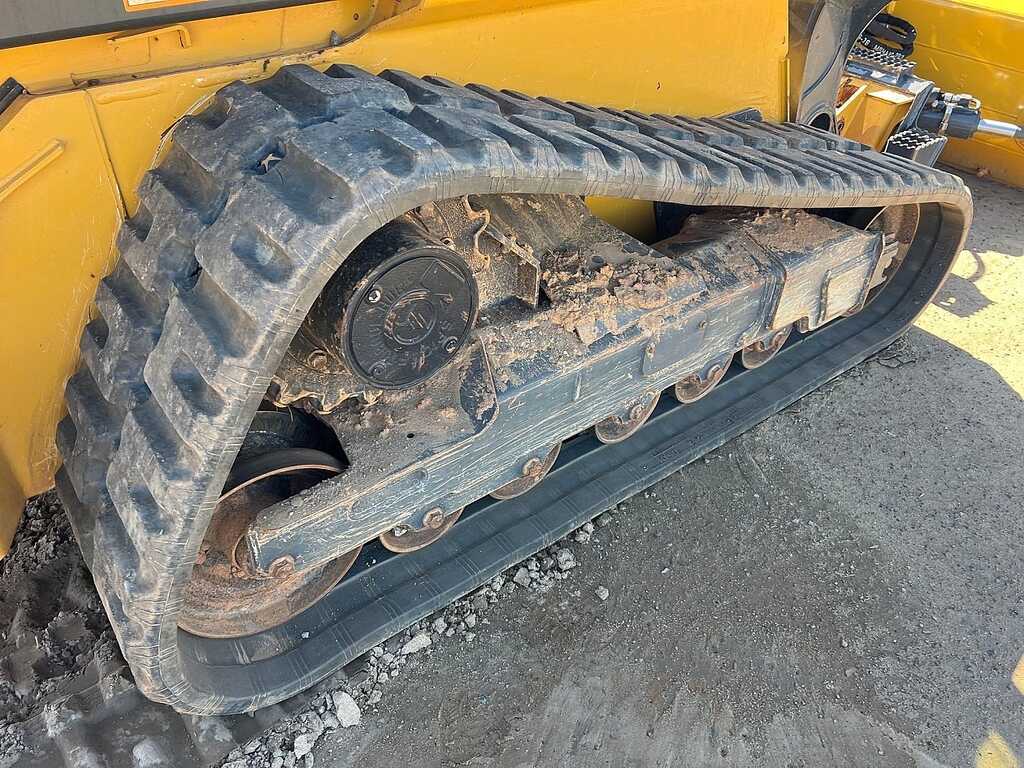

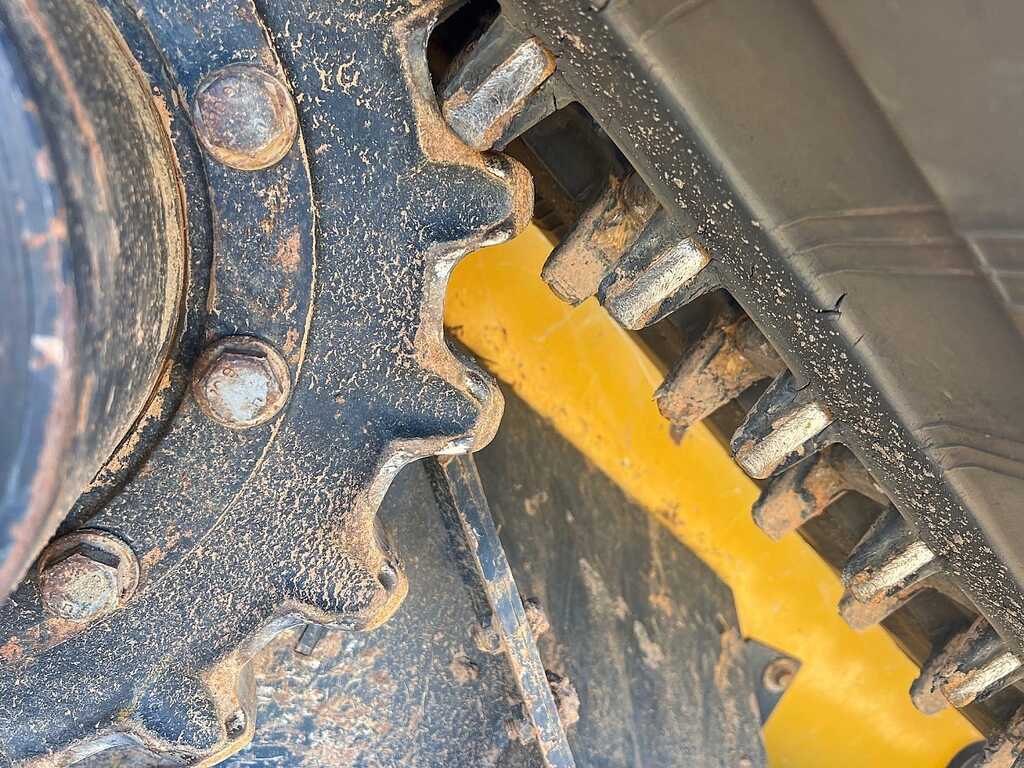

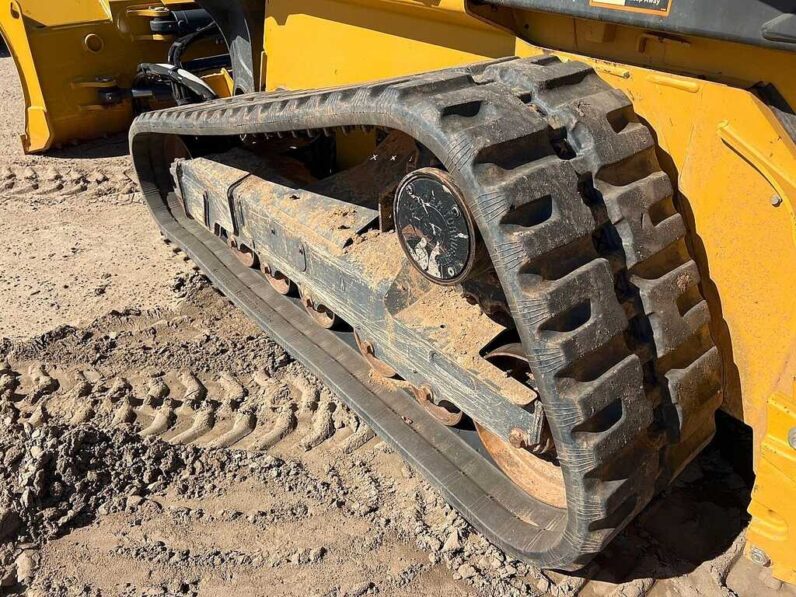

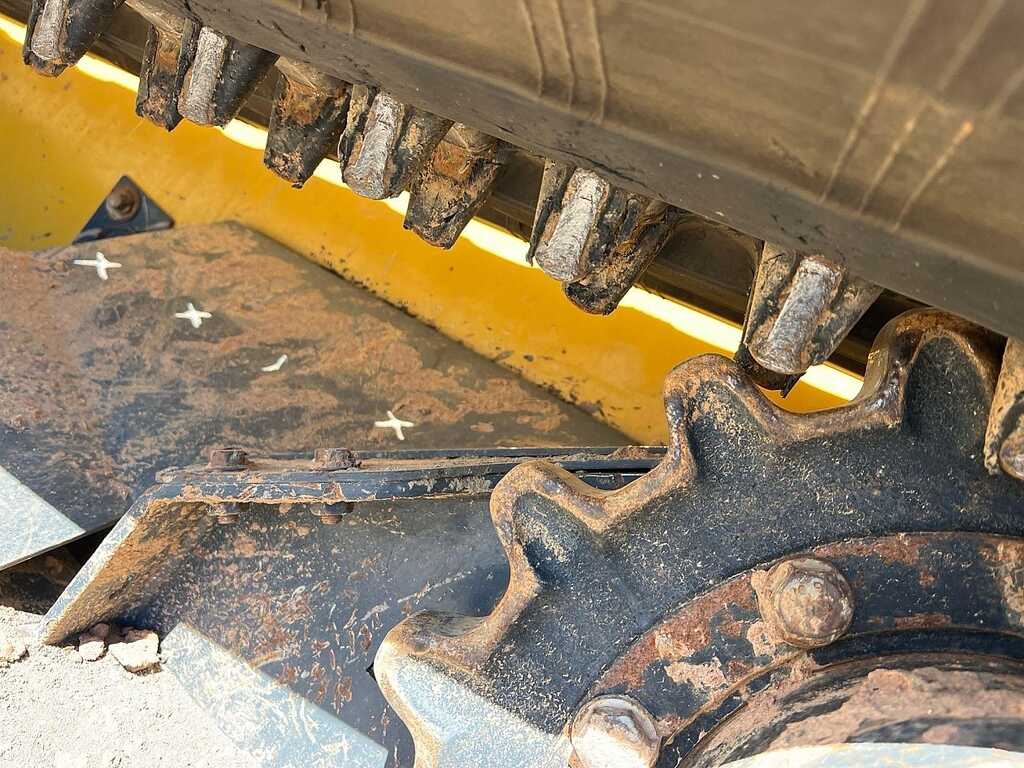

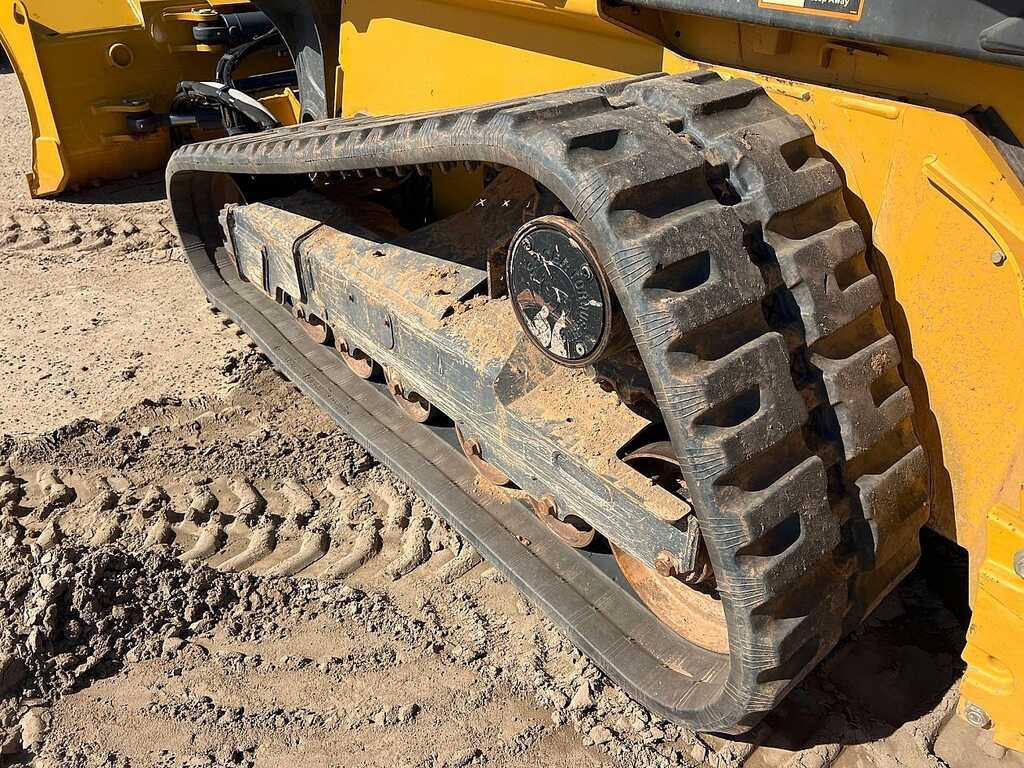

Undercarriage & Tracks
Standard Track Width: 381 mm (15 in)
Optional Track Widths: 432 mm (17 in) and 508 mm (20 in)
Standard Grouser Height: 51 mm (2 in)
Ground Pressure: Approximately 30.3 kPa (4.4 psi) with standard tracks
Track Adjustment: Automatic belt tensioner

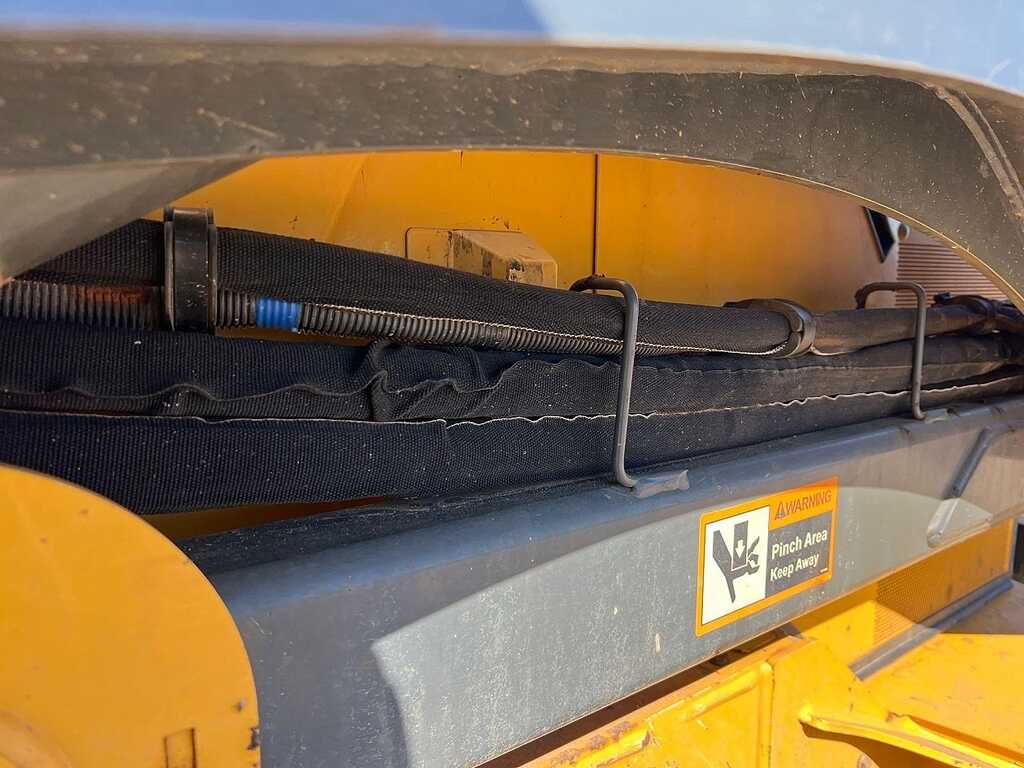

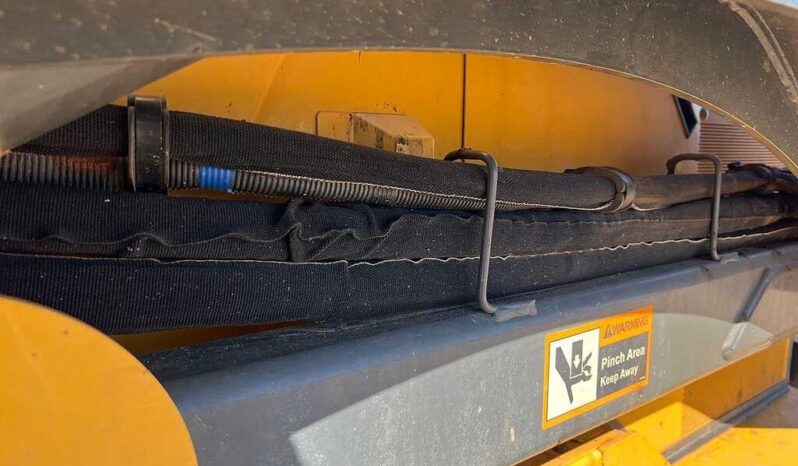

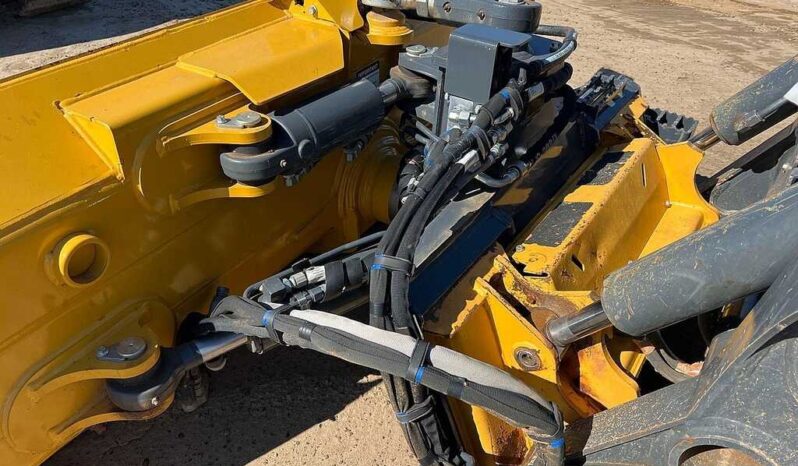

Hydraulics
Standard Hydraulic Flow: 98 L/min (26 US gpm)
Standard Hydraulic Pressure: 241 bar (3,500 psi)
Optional High-Flow Hydraulics: 151 L/min (40 US gpm)

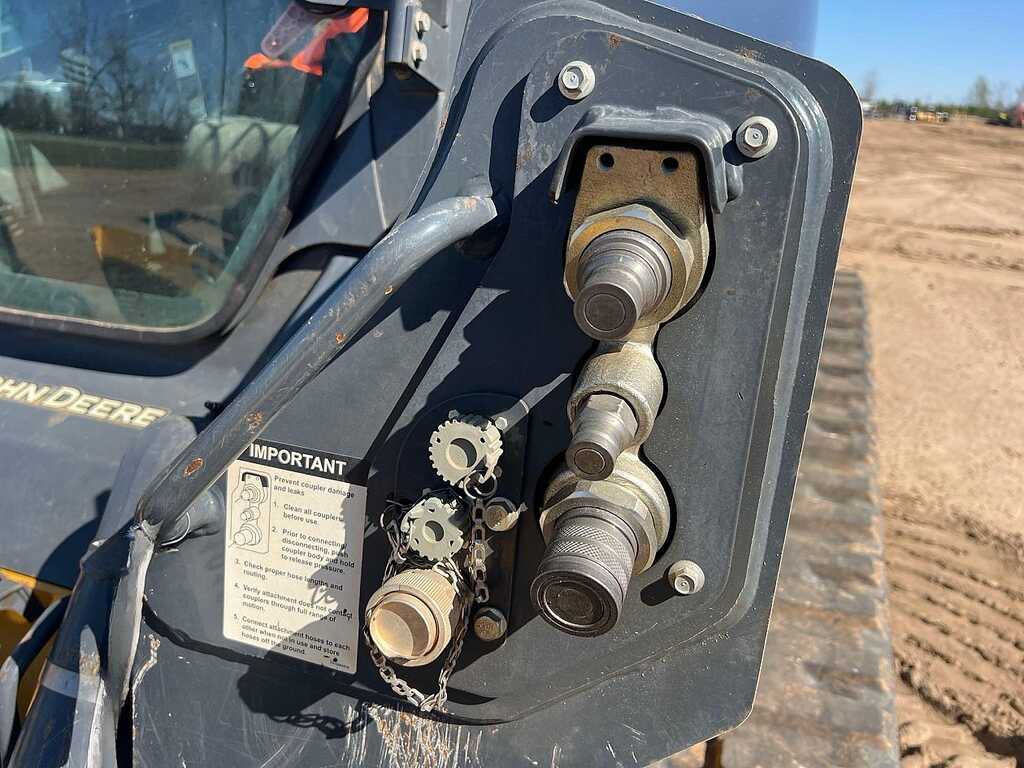

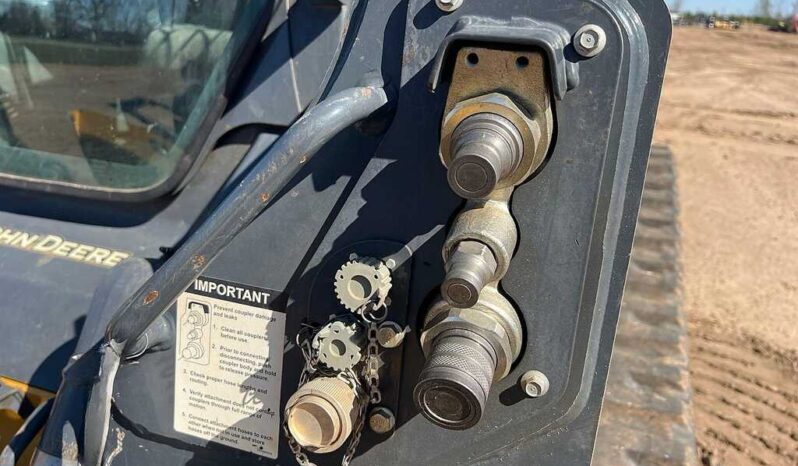

Auxiliary Hydraulics: Standard with electronic diverter for single- and two-function attachments

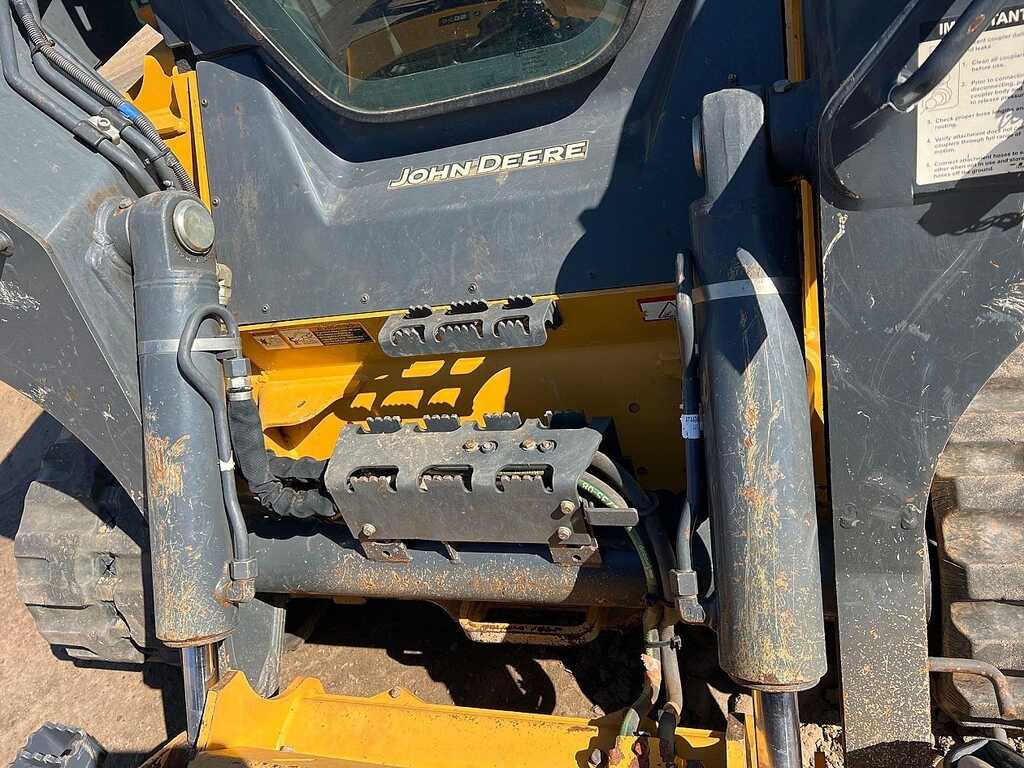

Loader & Lift System
Lift Arm Design: Vertical lift path
Maximum Hinge Pin Height: 3,353 mm (132 in)
Reach at Maximum Height: 787 mm (31 in)
Dump Angle at Maximum Height: 40°
Bucket Rollback at Ground Level: 30°

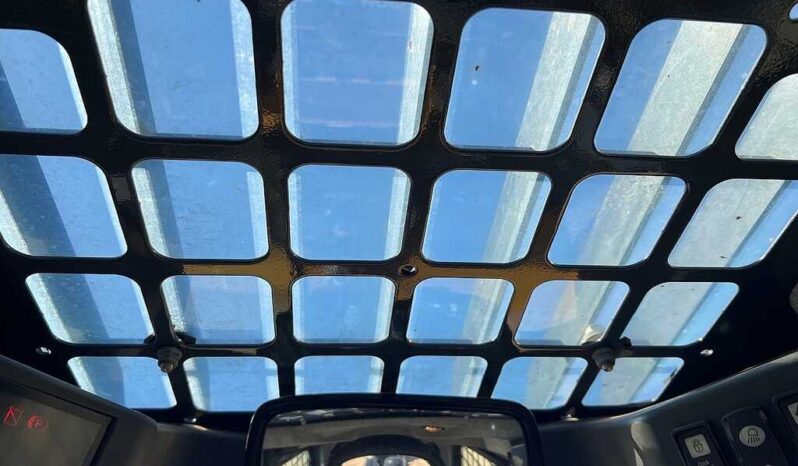

Cab & Operator Station
Cab Type: Pressurized cab with integrated air-filtration system
Climate Control: Standard heat and air conditioning

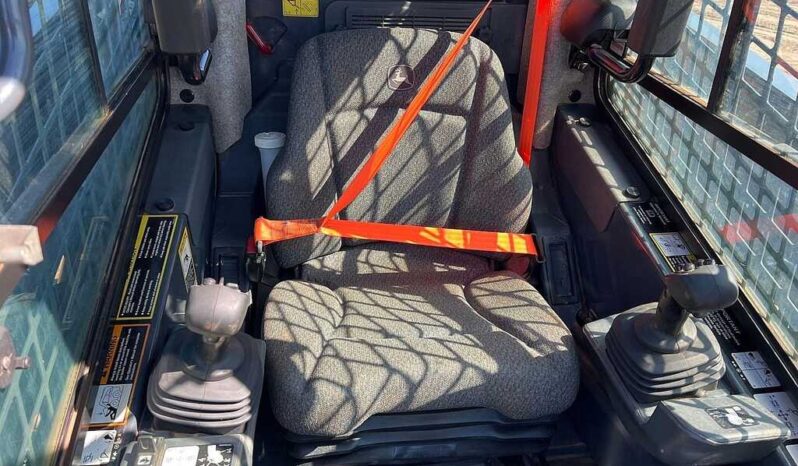

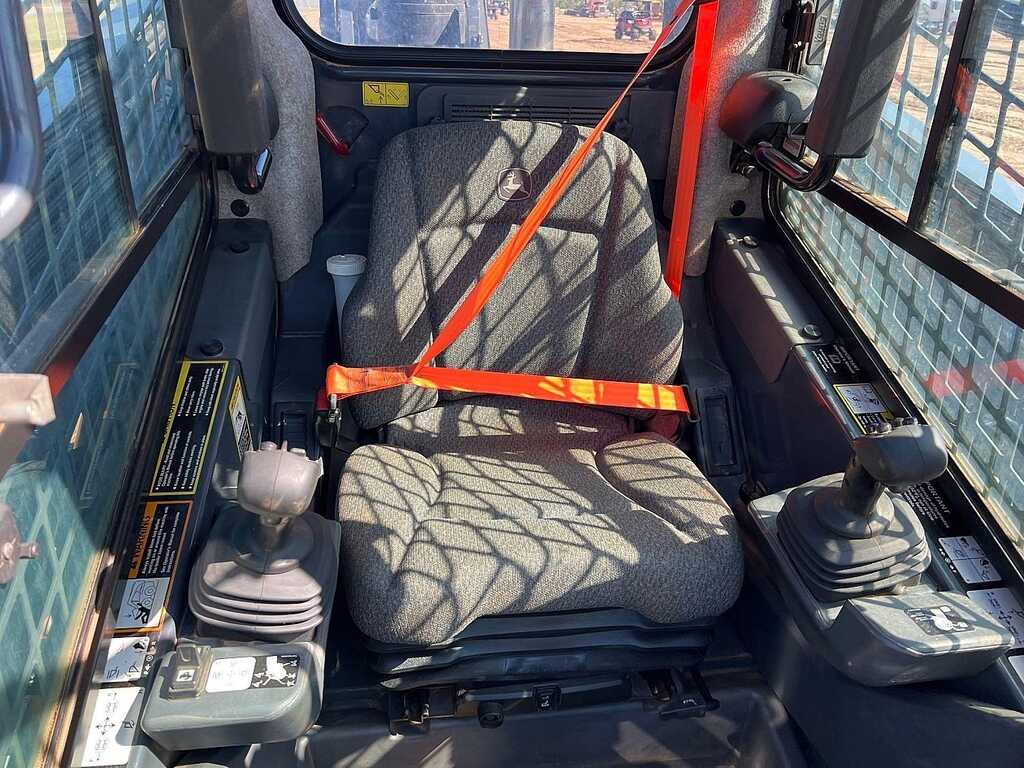

Seat: Suspended high-back adjustable operator seat

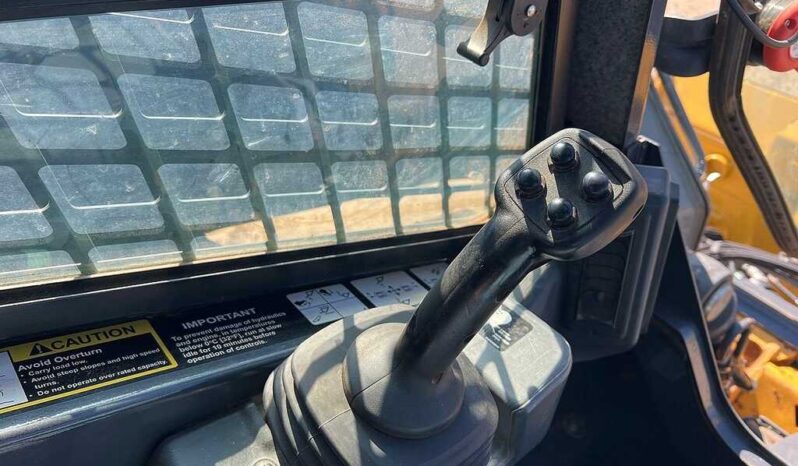

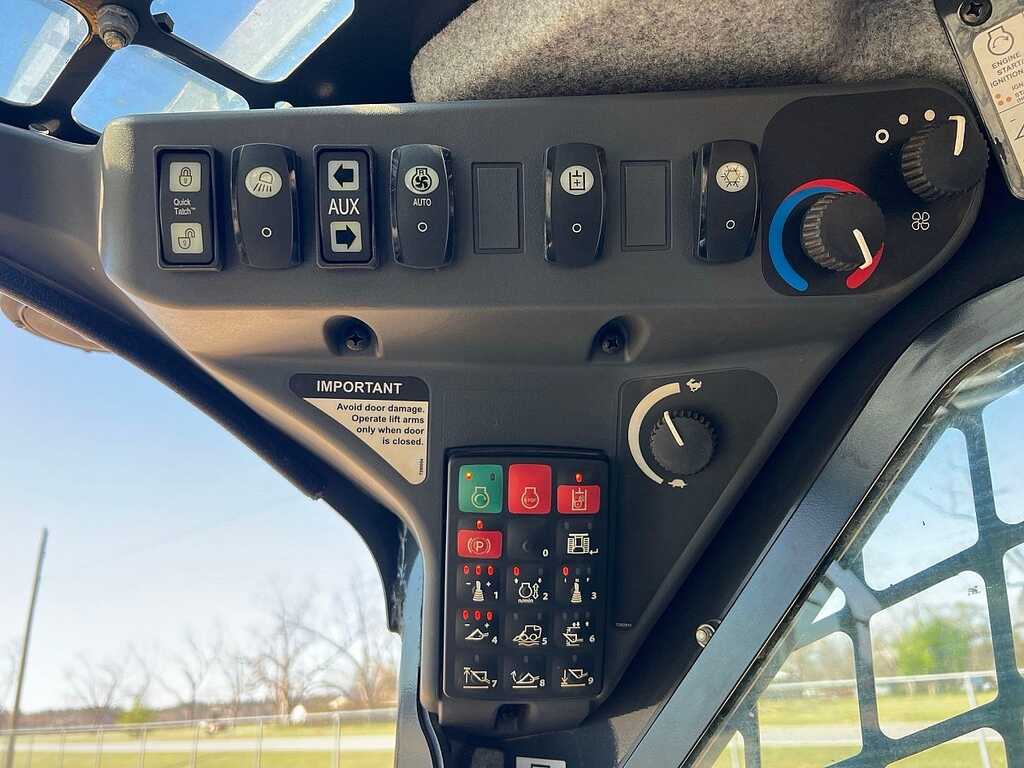

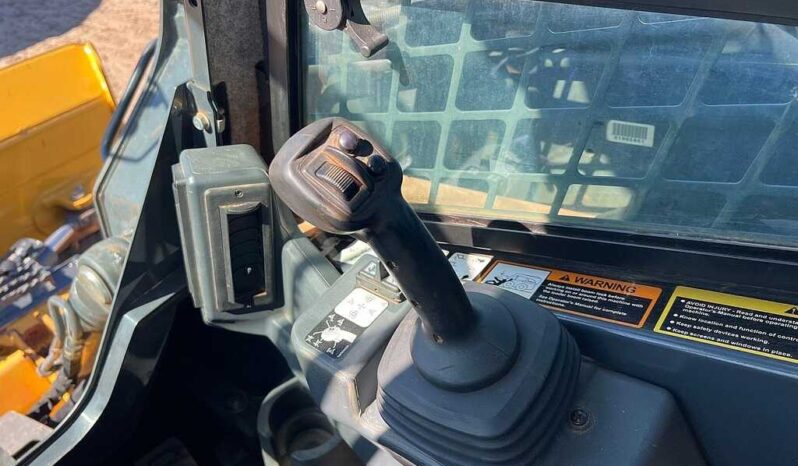

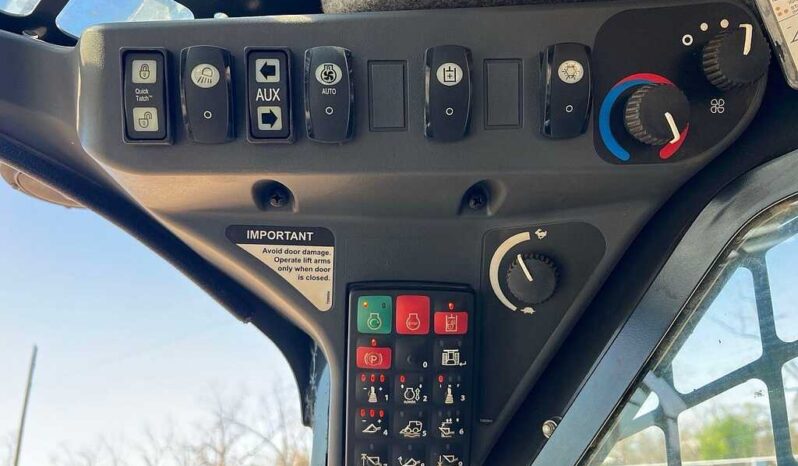

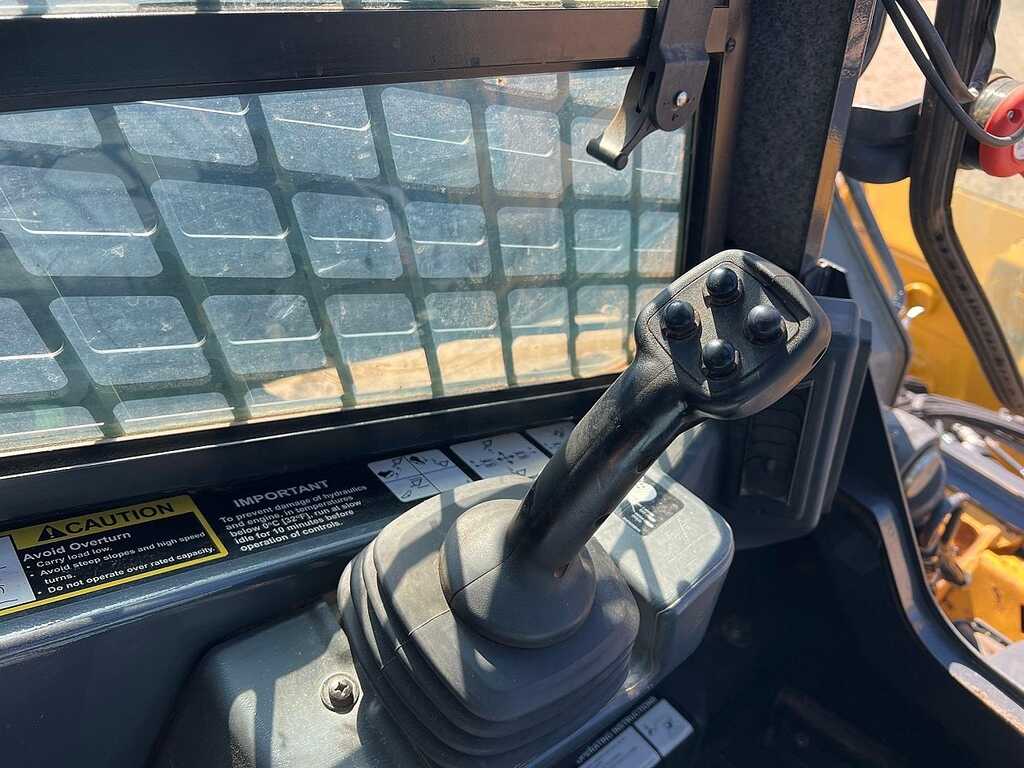

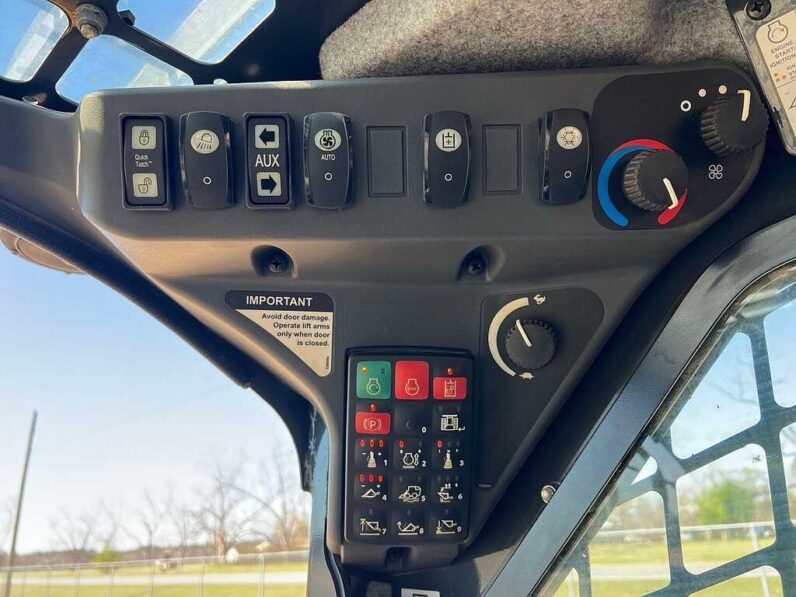

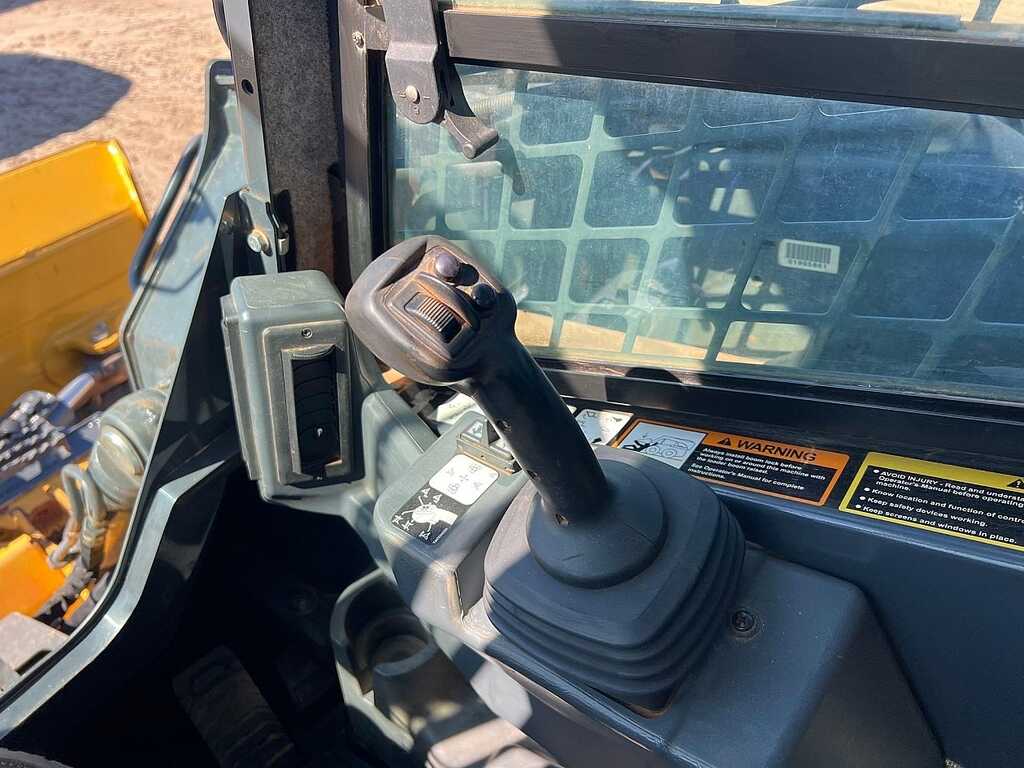

Controls: Standard Intelligent Power Management (ISO pattern), optional Deluxe TouchPad system with programmable controls and LCD screen

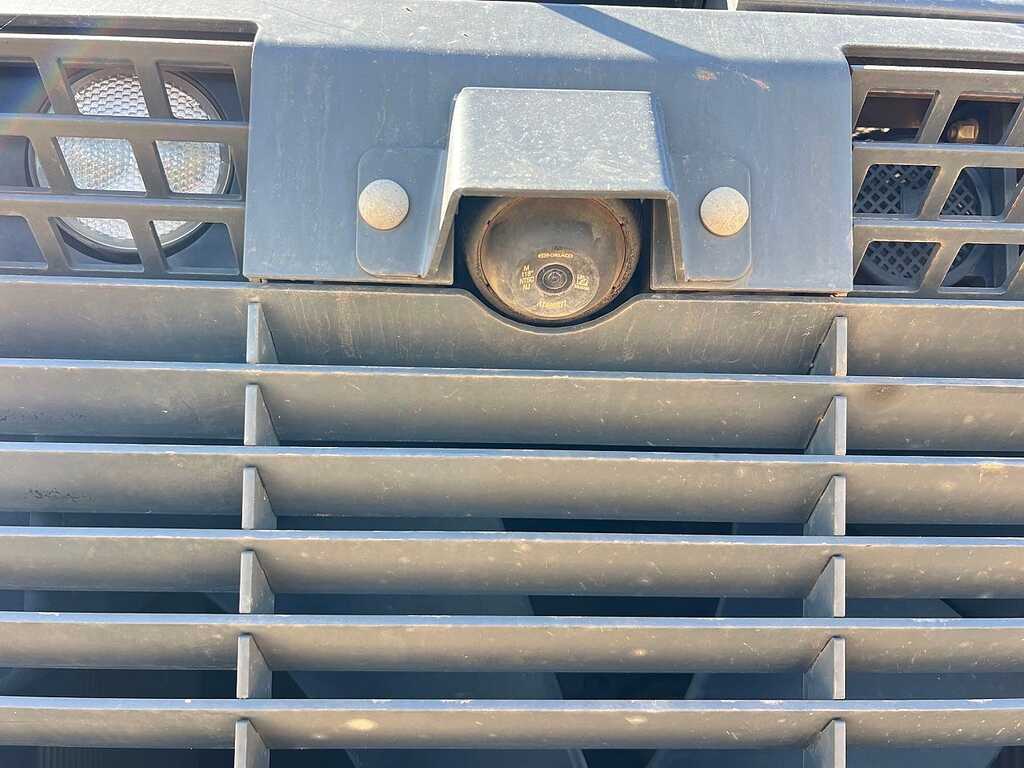

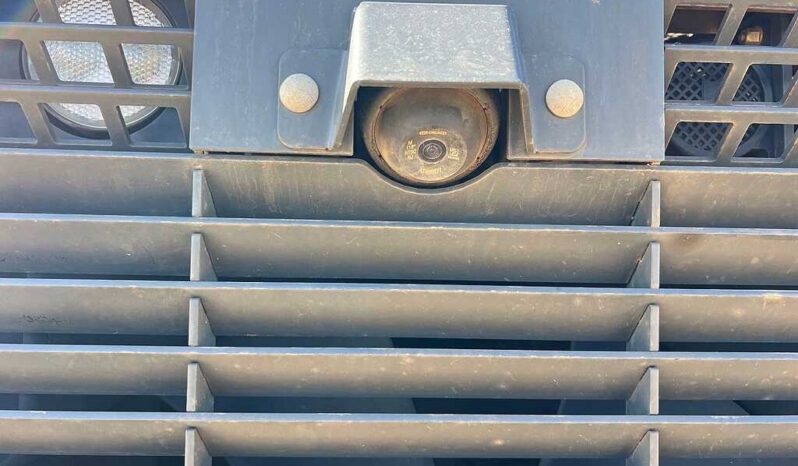

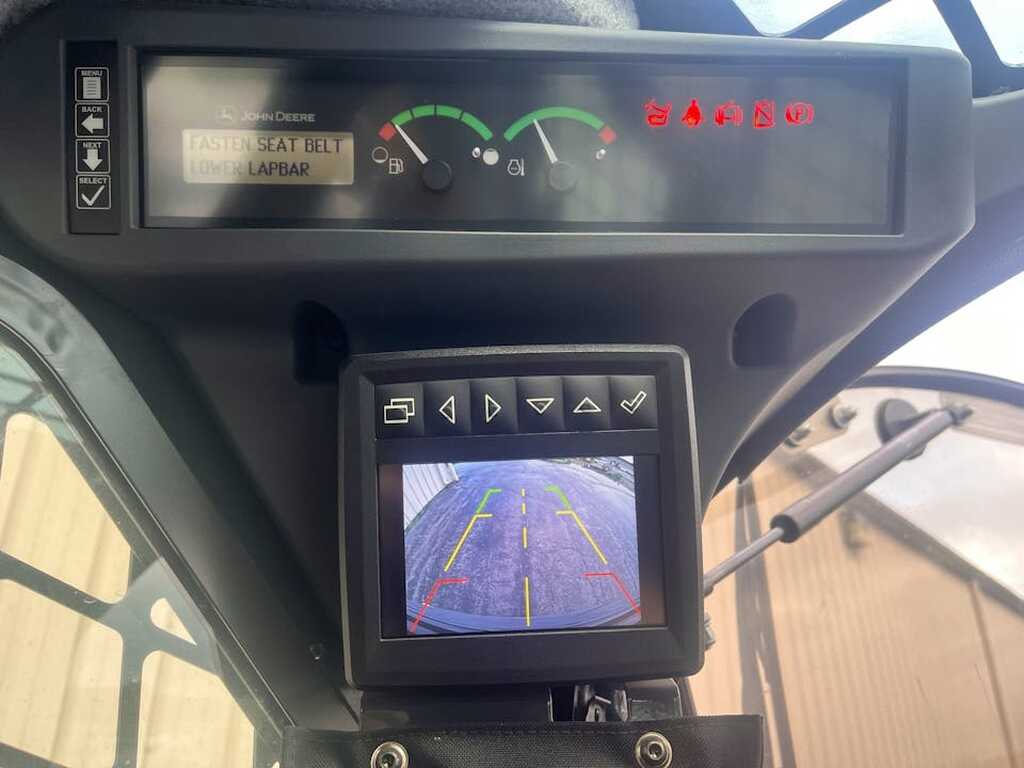

Visibility: 360-degree visibility with single front door and standard rearview camera integrated into the display
Key Features & Technology

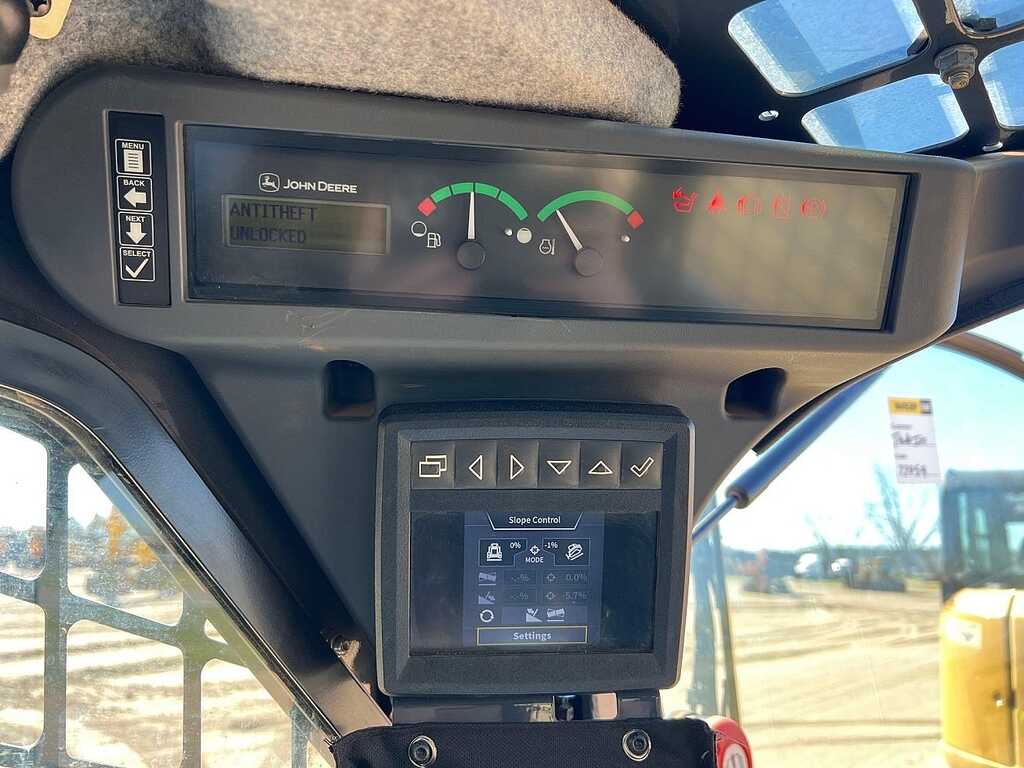

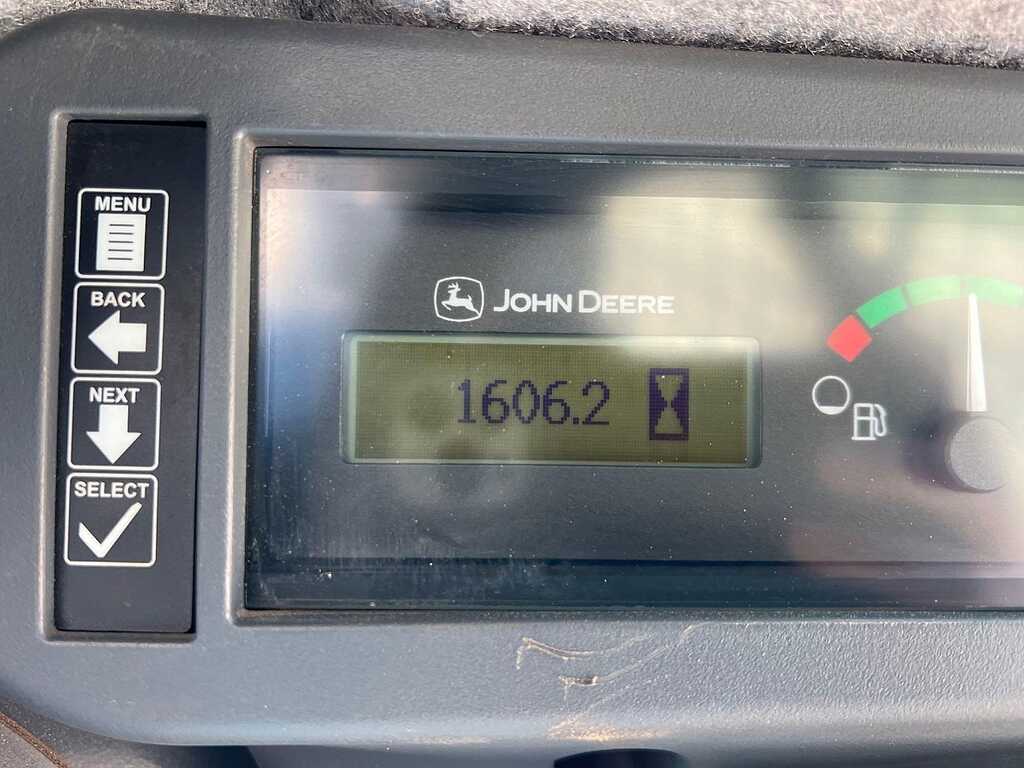

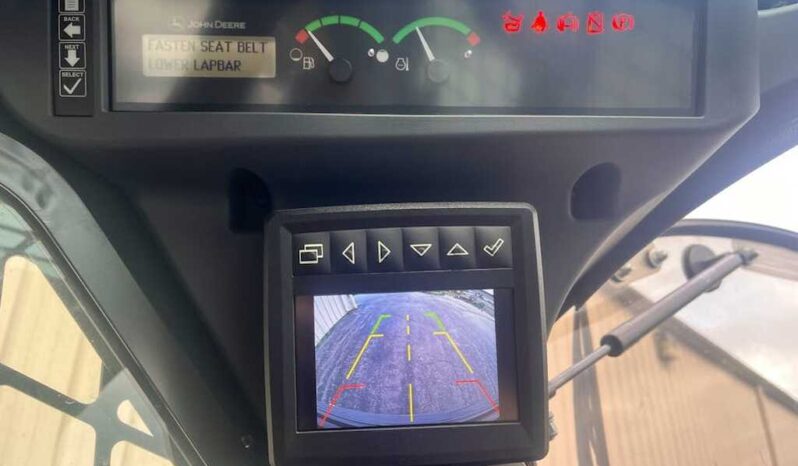

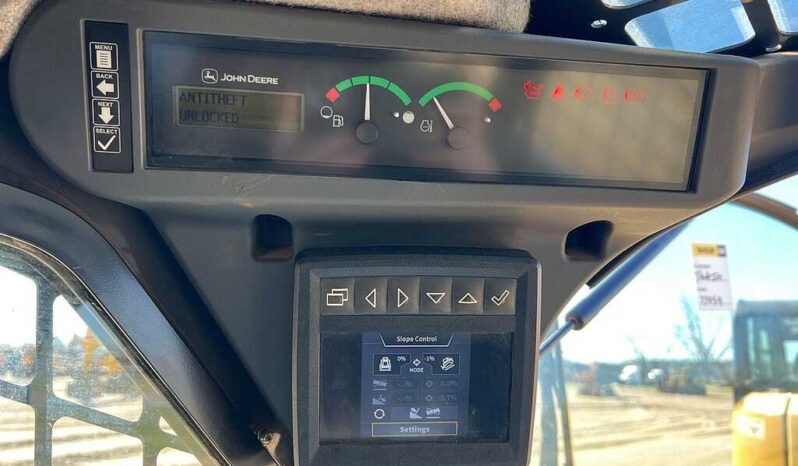

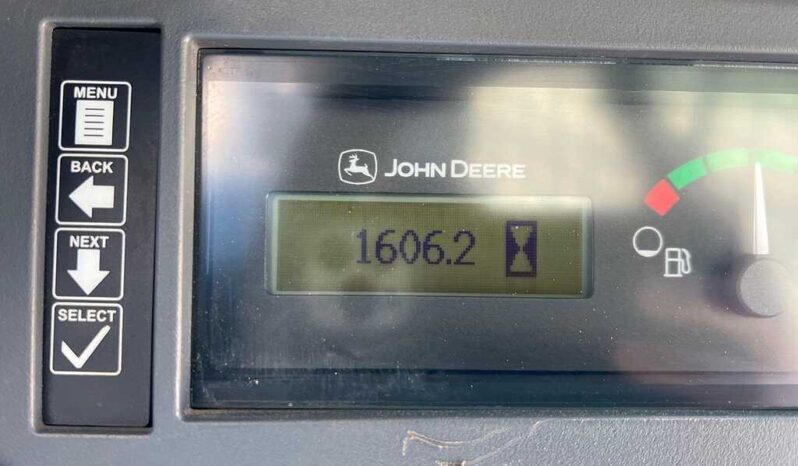

Monitor: 5-inch (127 mm) color touchscreen display (standard)
John Deere SmartGrade: Optional factory-integrated mast-less grade control system
JDLink™ Connectivity: Optional telematics for fleet tracking, diagnostics, and utilization
Ride Control: Standard hydraulic ride control for smoother transport
Work Lights: LED work lights standard
Attachment System: John Deere Quick-Tatch compatible with a wide range of attachments
