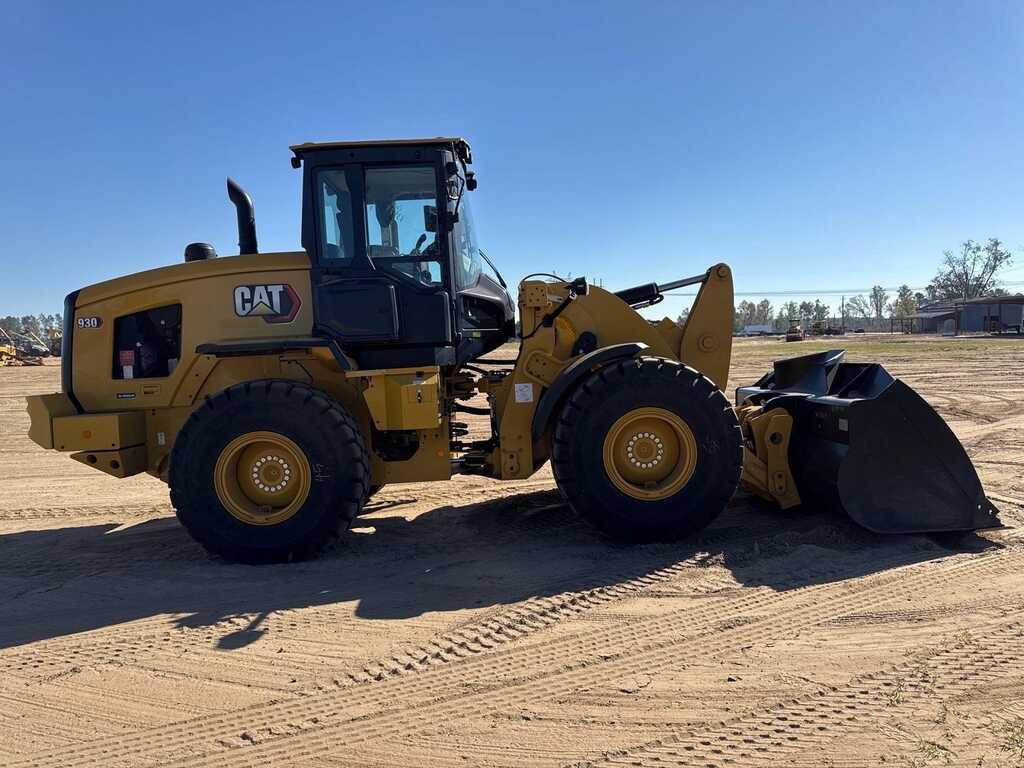

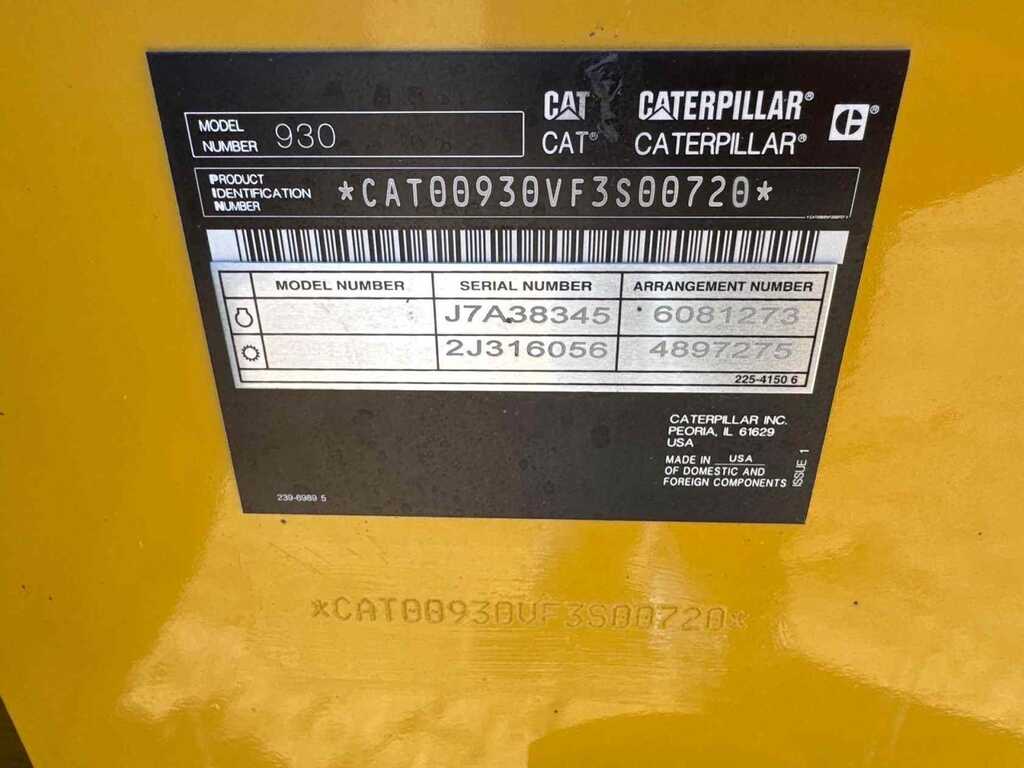

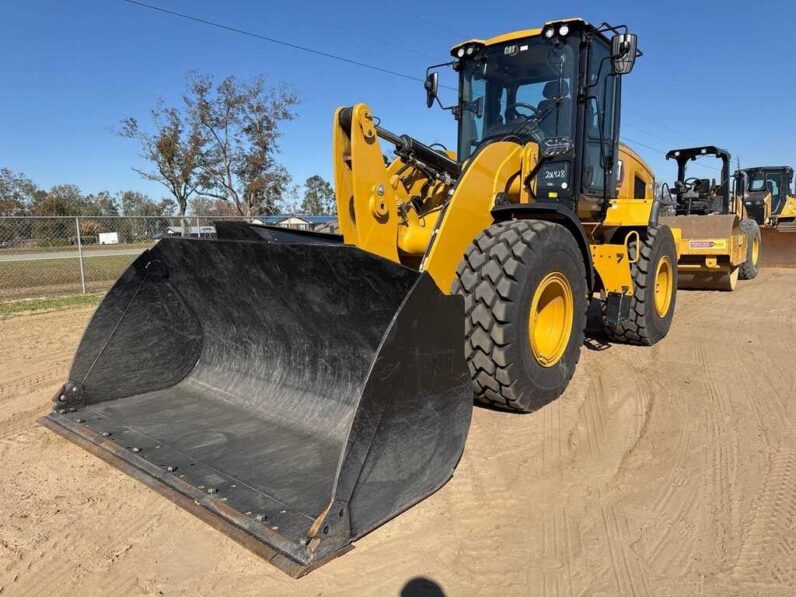

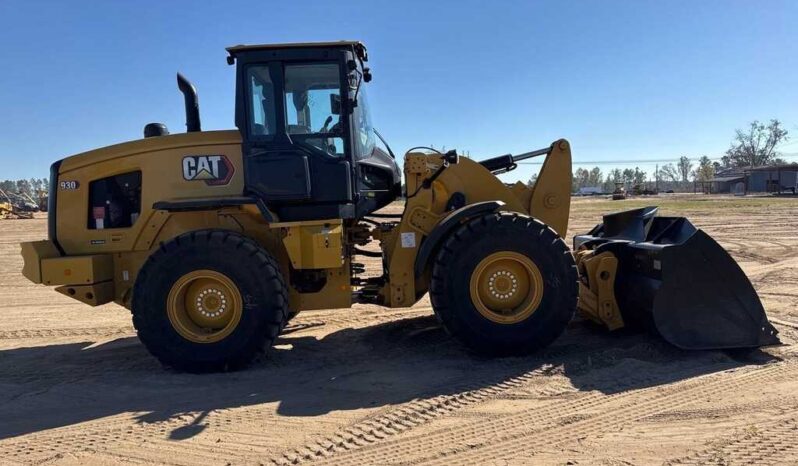

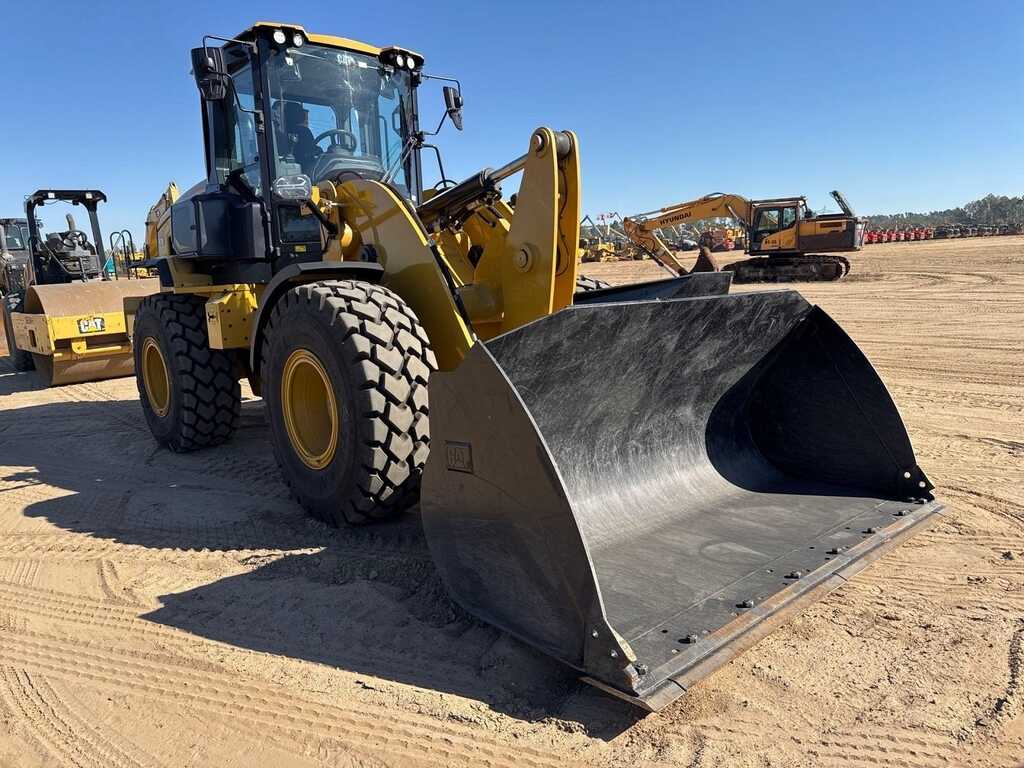

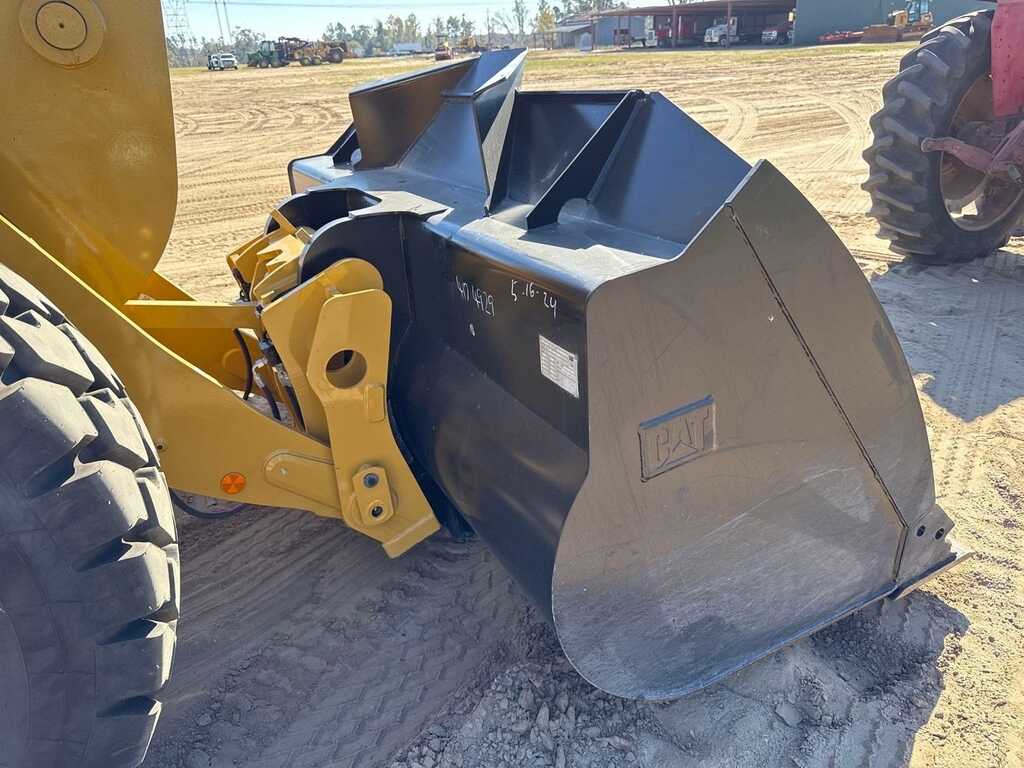

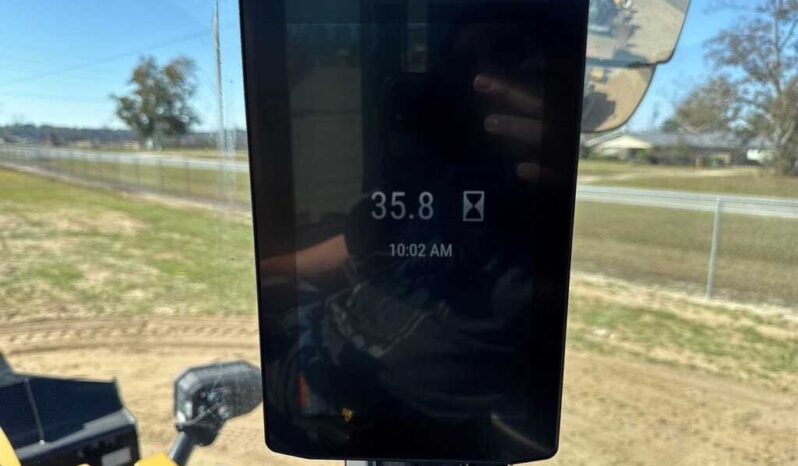

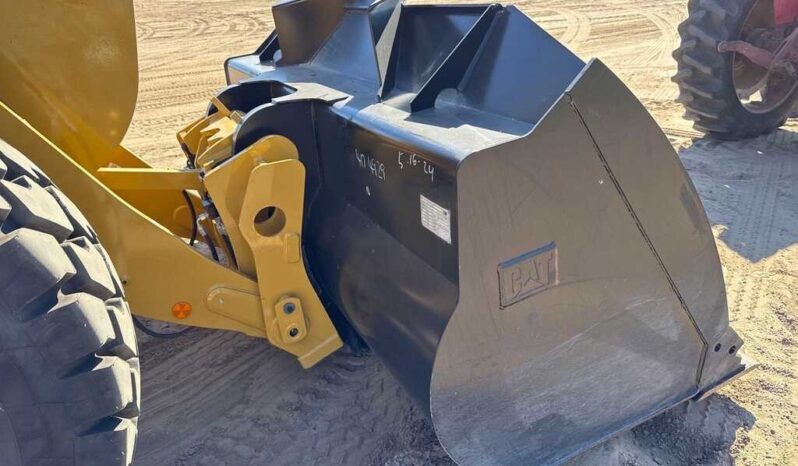

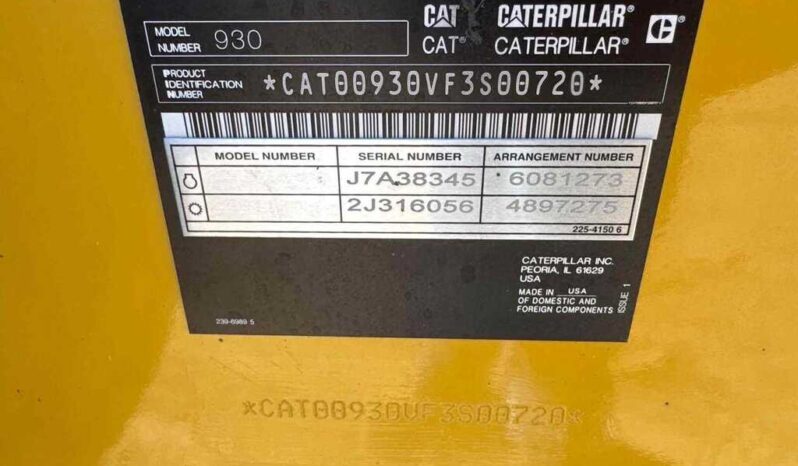

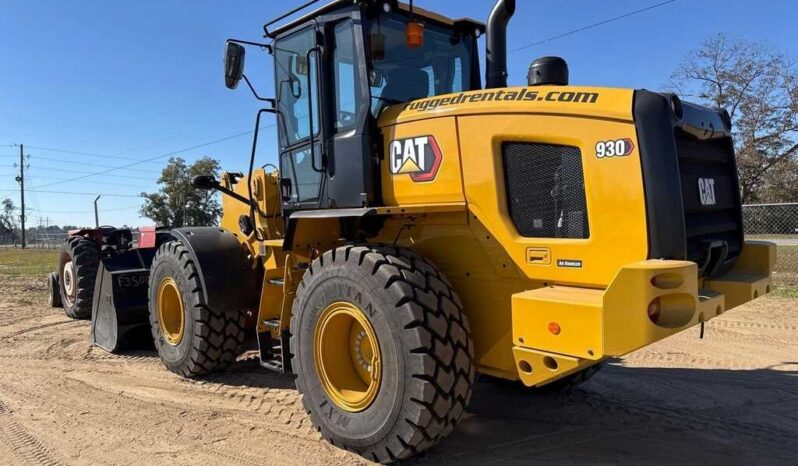

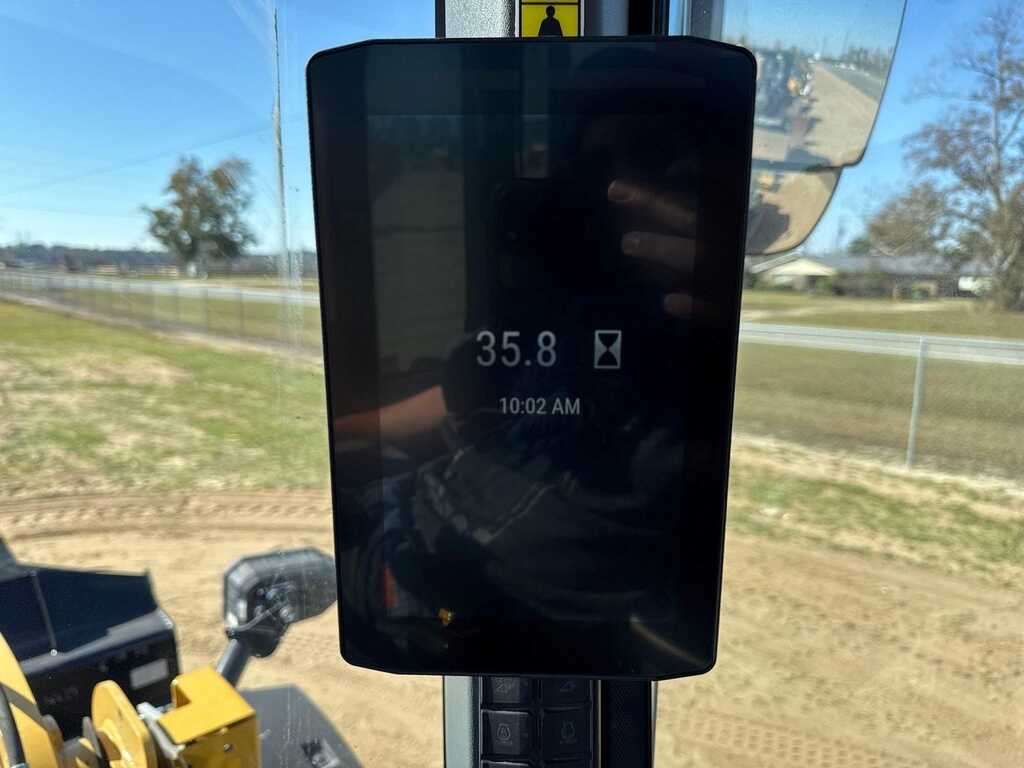

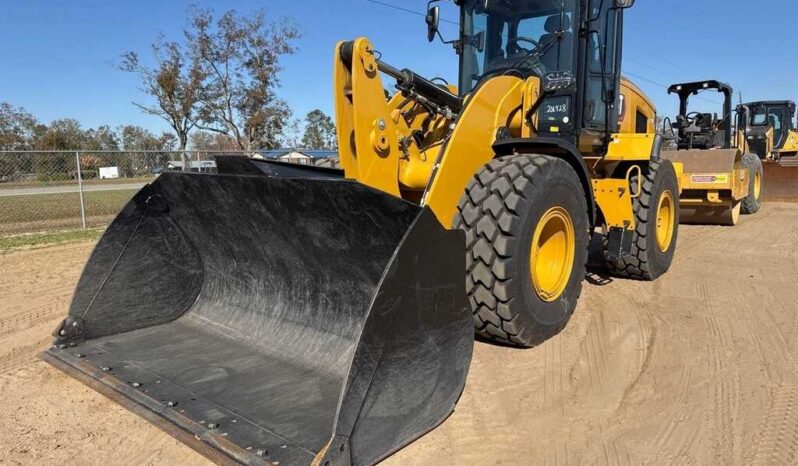

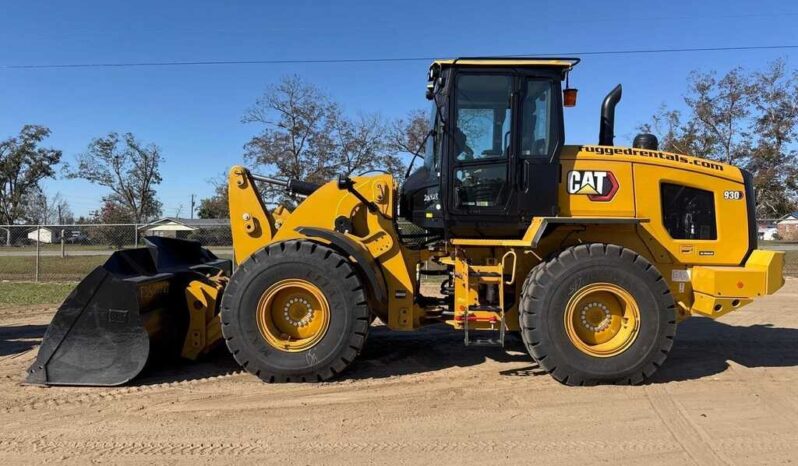

(HRS SHOW – 35) EROPS, HYD QUICK COUPLER, 108″ BUCKET, 20.5R25 TIRES, PULLBAR, S/N CAT00930VF3S00720

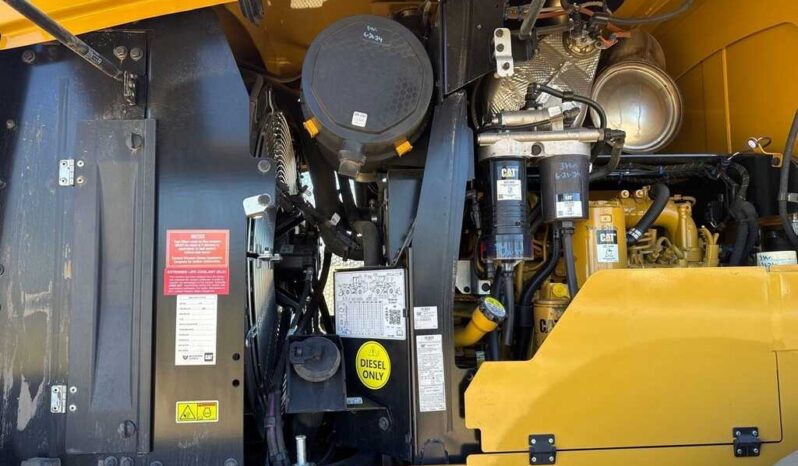

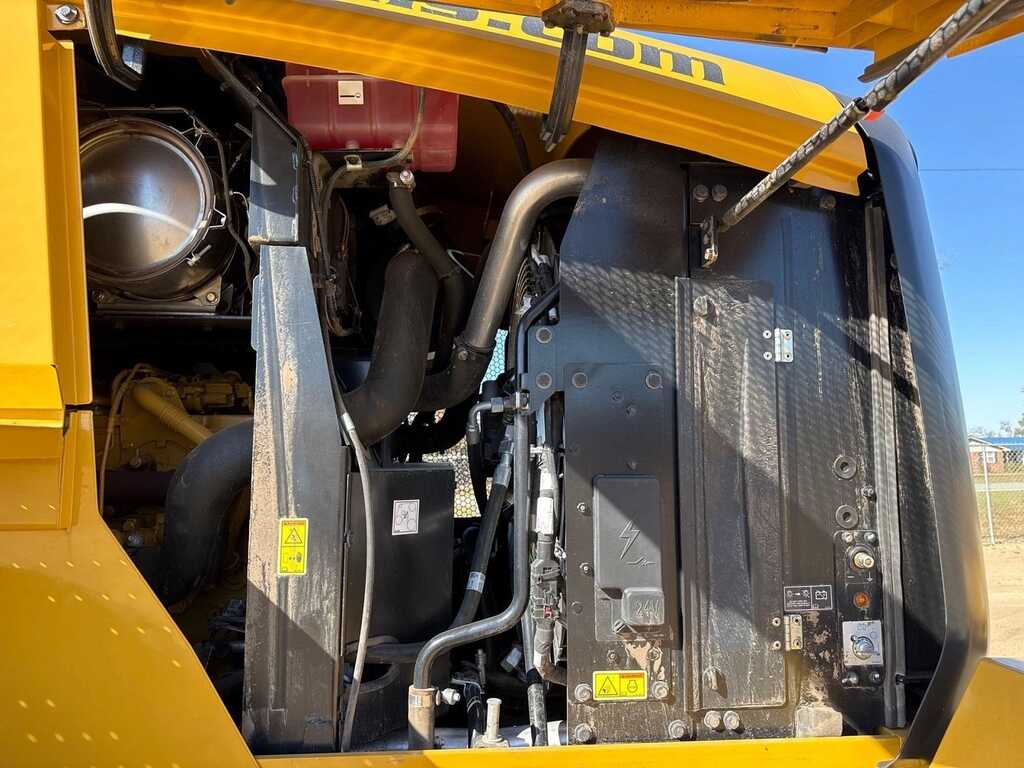

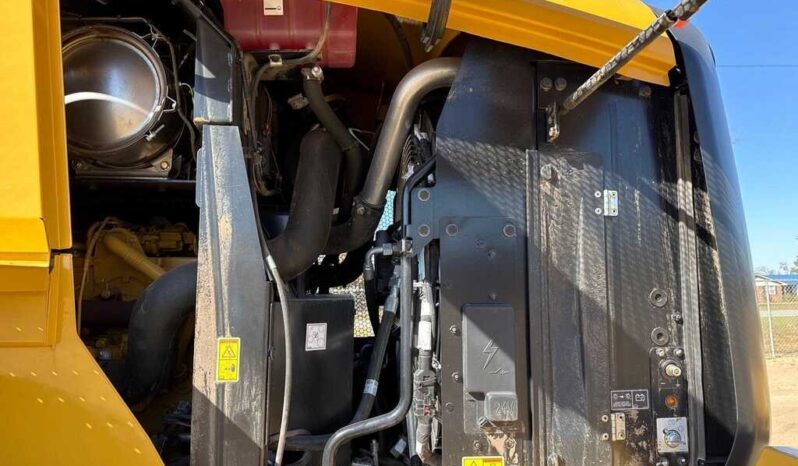

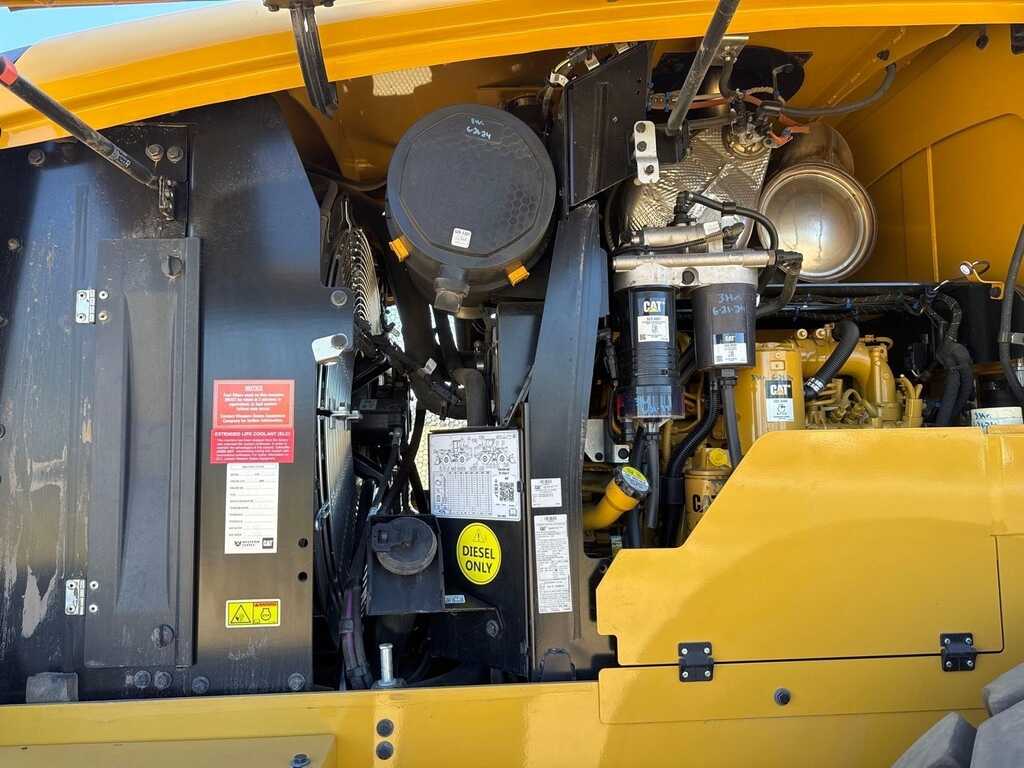

Engine
Engine Model: Cat C7.1*
Rated Gross Power (SAE J1995): 170 hp
Performance Mode: Automatic
Rated Engine Speed: 1800 rpm
Rated Gross Power (DIN): 172 mhp
Rated Engine Power (ISO 14396): 168 hp (170 mhp DIN)
Rated Net Power (SAE J1349): 165 hp
Rated Net Power (ISO 9249): 165 hp (167 mhp DIN)
Maximum Gross Torque: 608 ft·lbf @ 1400 rpm
Maximum Net Torque: 593 ft·lbf @ 1400 rpm
Displacement: 427 in³
Bore × Stroke: 4 in × 5 in
Note: *Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 standards. No derating required up to 3000 m (10,000 ft).
Weights
Operating Weight: 31,124 lb
Operating Weight (High Lift): 31,633 lb

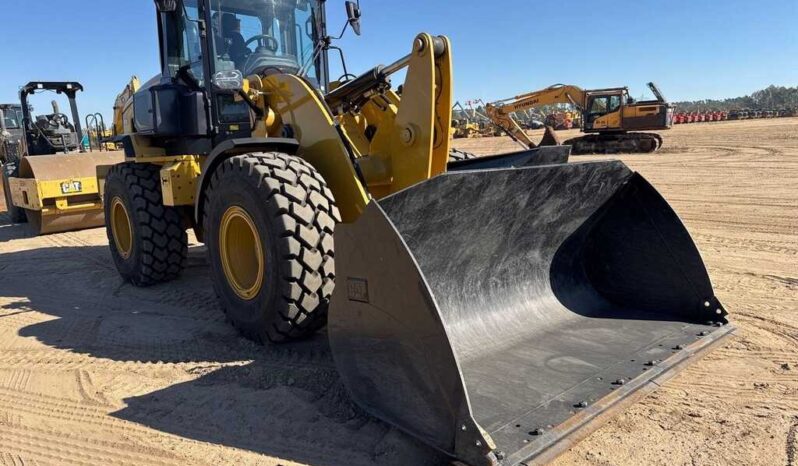

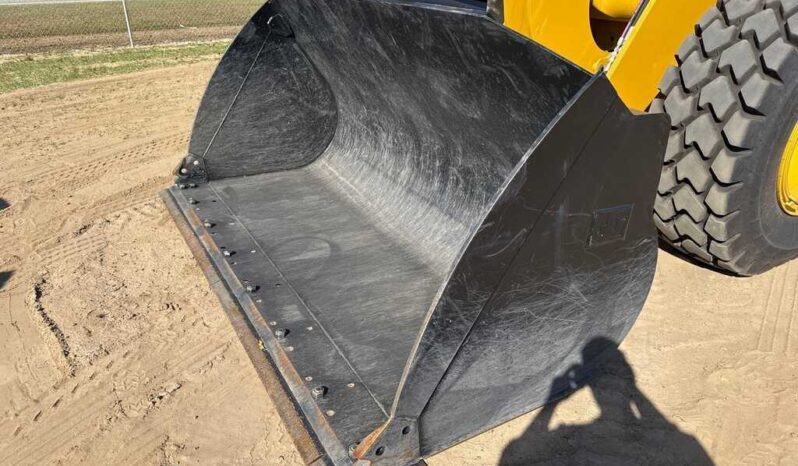

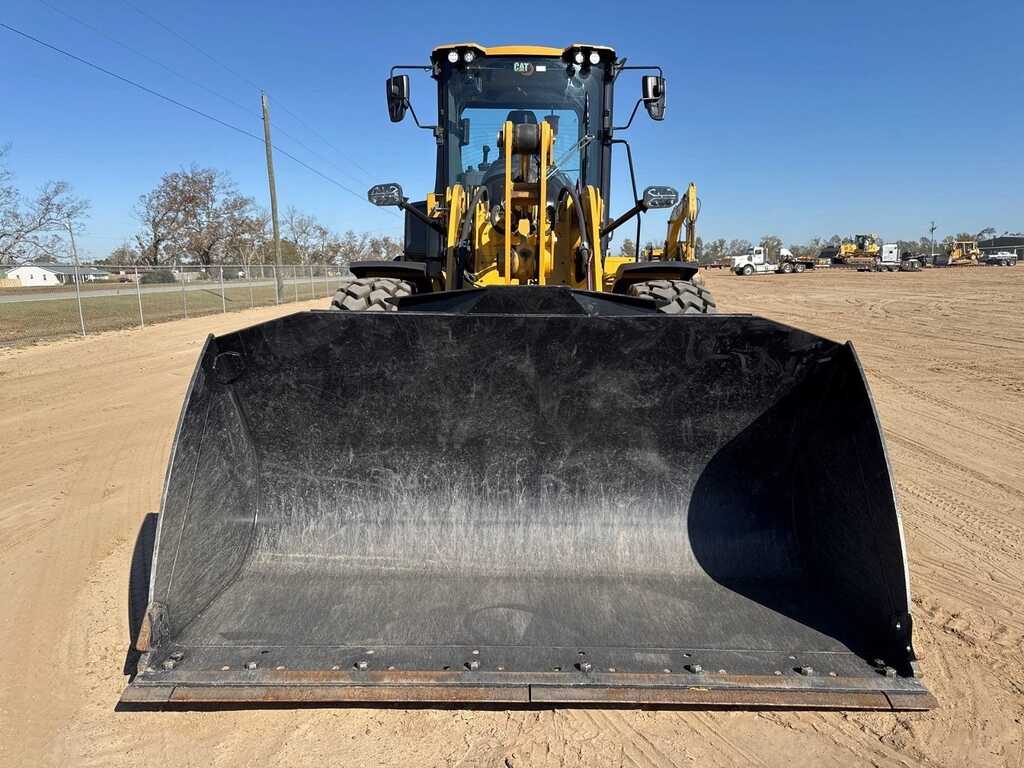

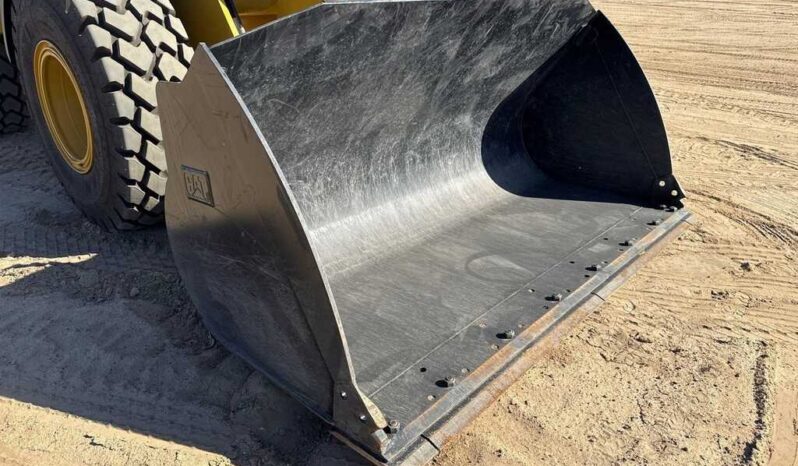

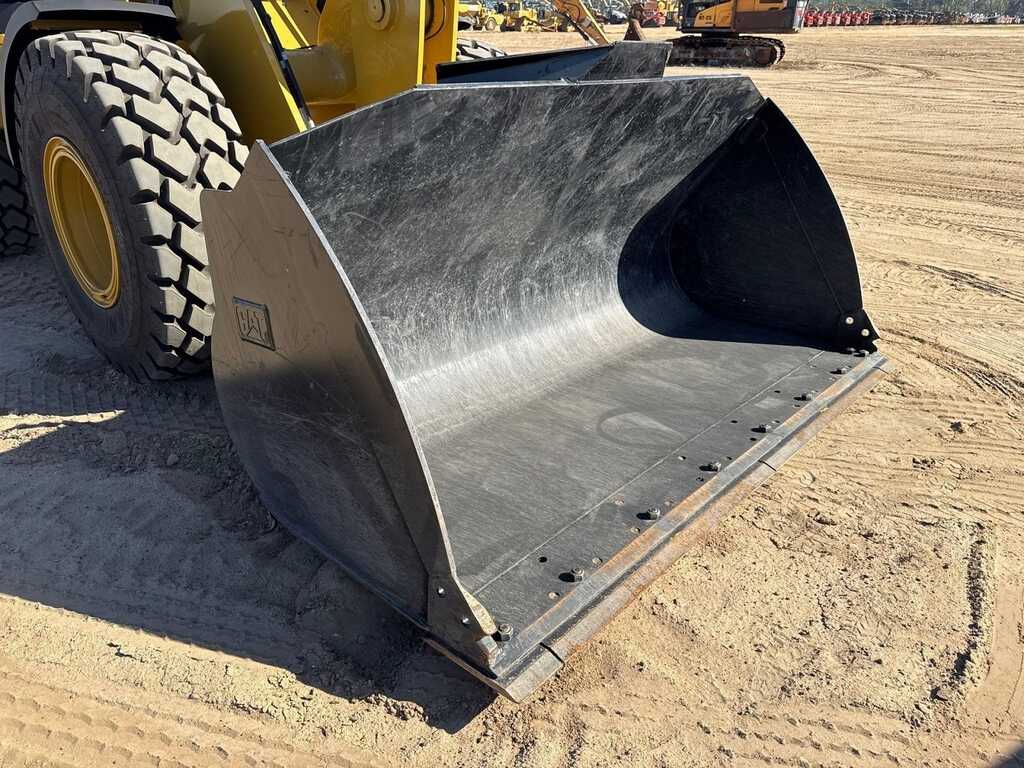

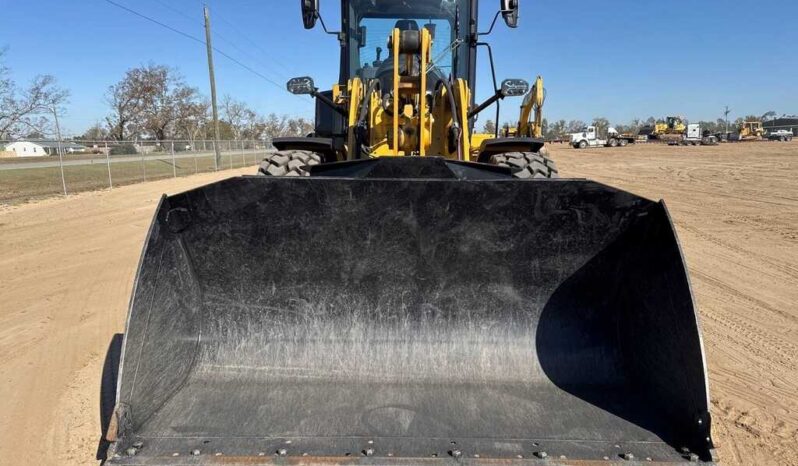

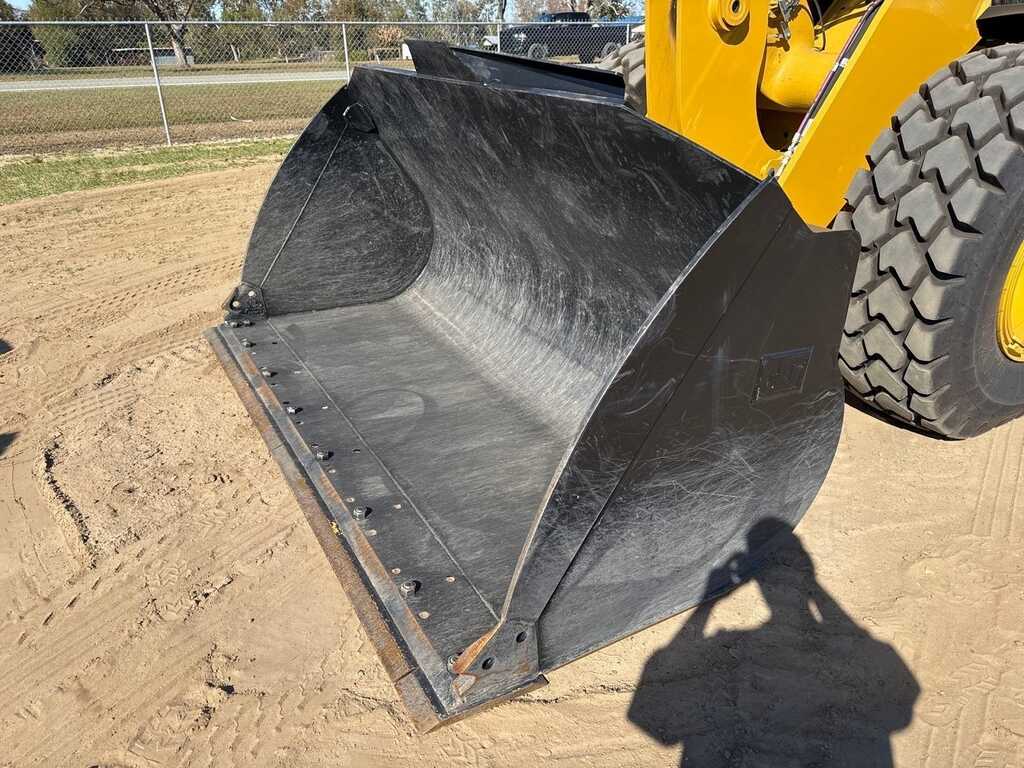

Buckets
Bucket Capacities: 1.9–5 m³ (2.5–6.5 yd³)

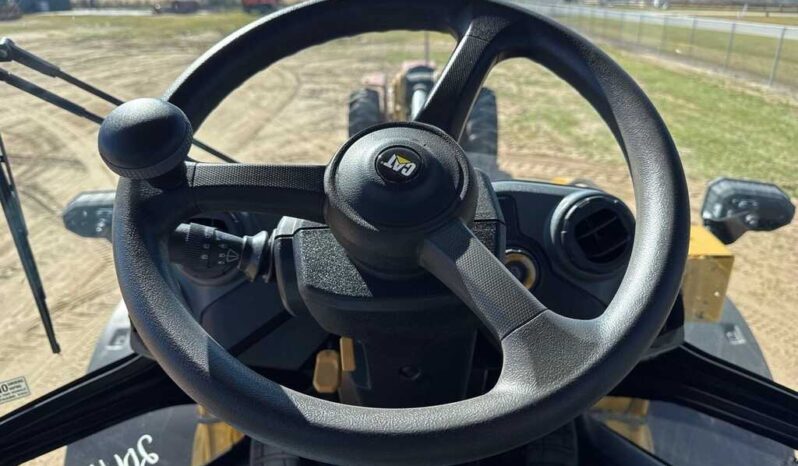

Steering
Cylinder Bore × Rod × Stroke: 2.8 in × 1.6 in × 17.2 in
Max Flow (Steering Pump): 34 gpm
Max Working Pressure: 3500 psi
Steering Cycle Time (Full Left–Right): 2.4–2.8 s

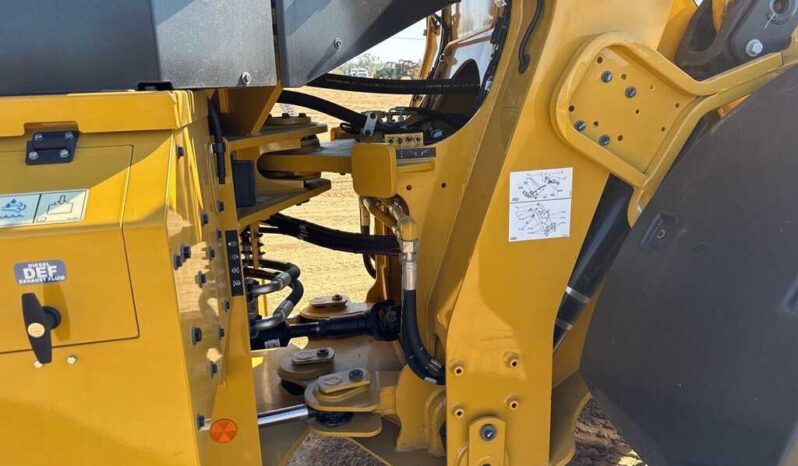

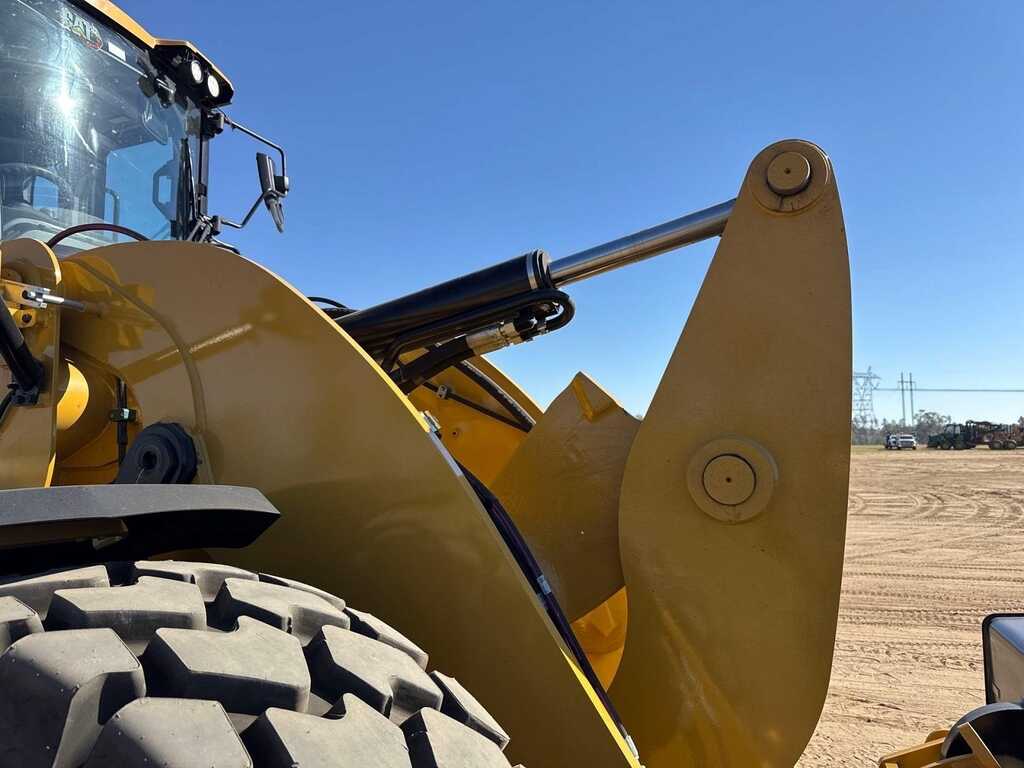

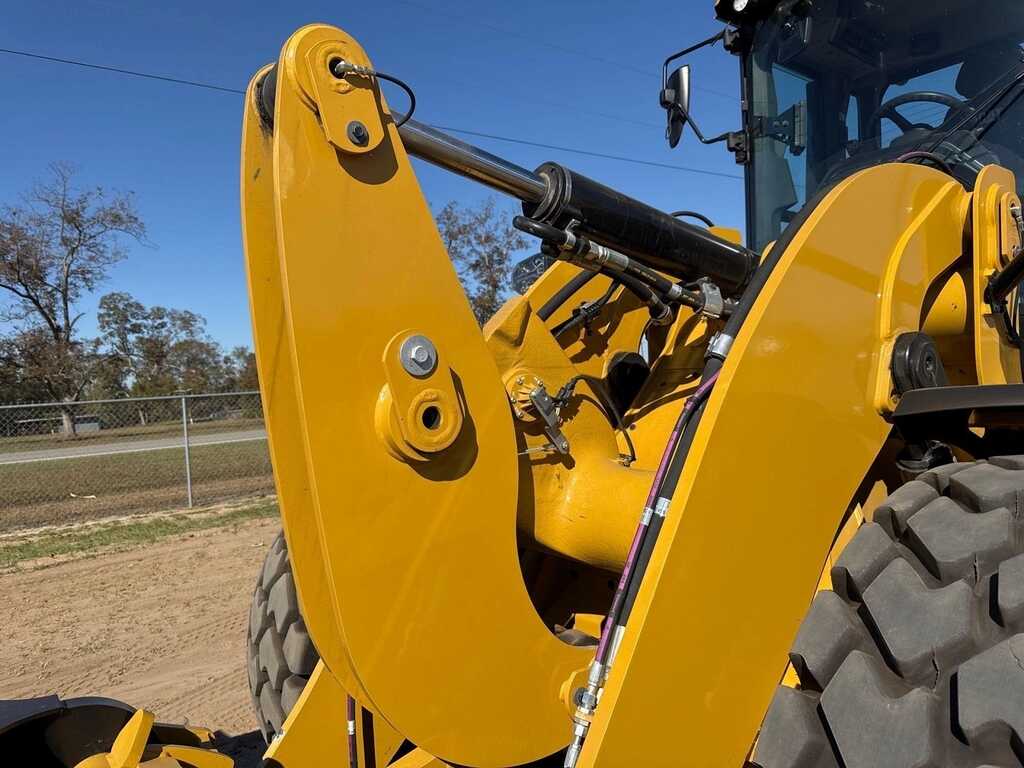

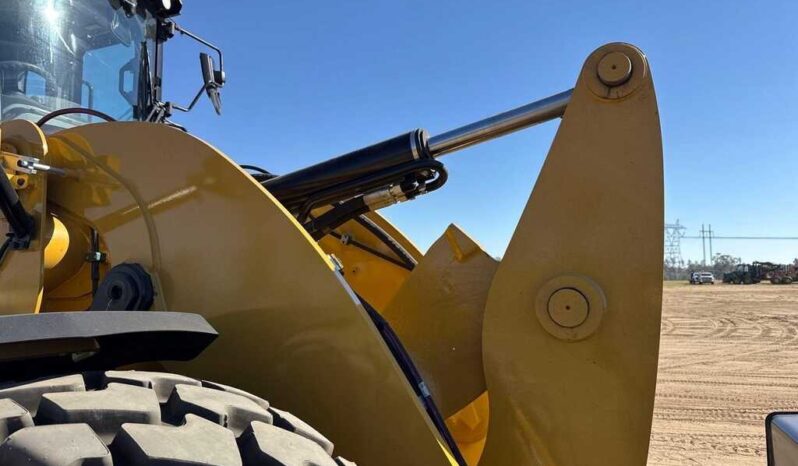

Loader Hydraulic System
Max Flow (Implement Pump): 50 gpm
Max Working Pressure: 3771 psi
Relief Pressure (Tilt Cylinder): 4061 psi
Hydraulic Cycle Time: Raise 5.1 s / Dump 1.5 s / Lower 2.7 s / Total 9.3 s
Service Refill Capacities
Fuel Tank: 51.5 gal

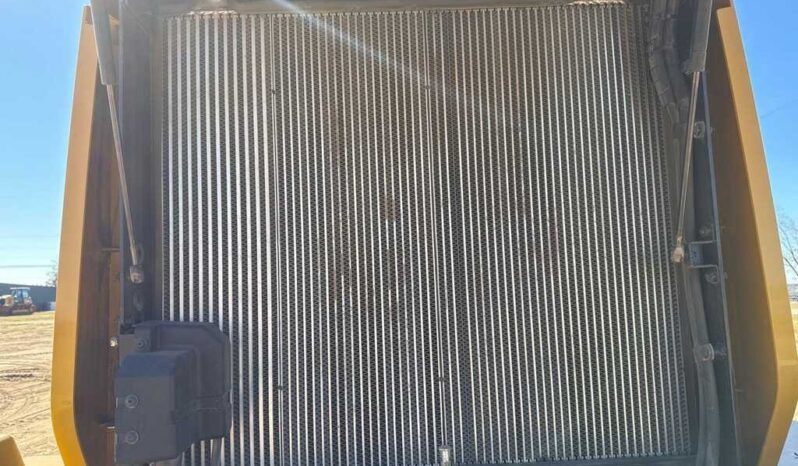

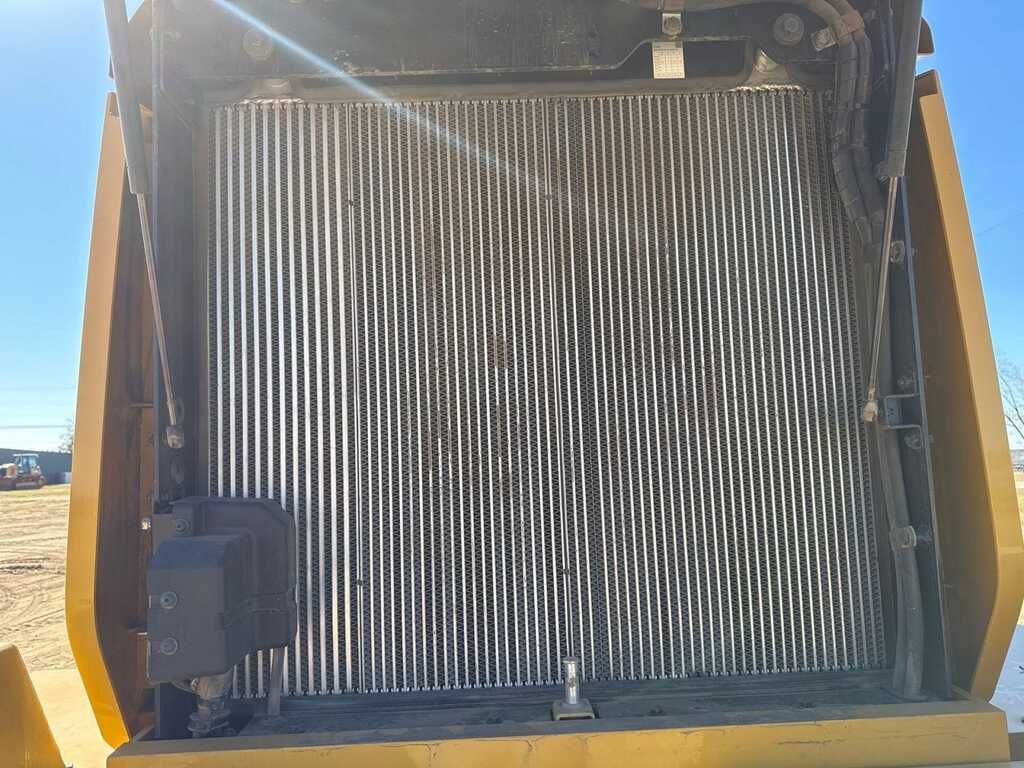

Cooling System: 7.9 gal
Engine Crankcase: 5.3 gal
Transmission Gearbox: 2.2 gal
Front Axle: 6.9 gal
Rear Axle: 6.6 gal
Hydraulic System (Total): 43.6 gal
Hydraulic Tank: 23.8 gal

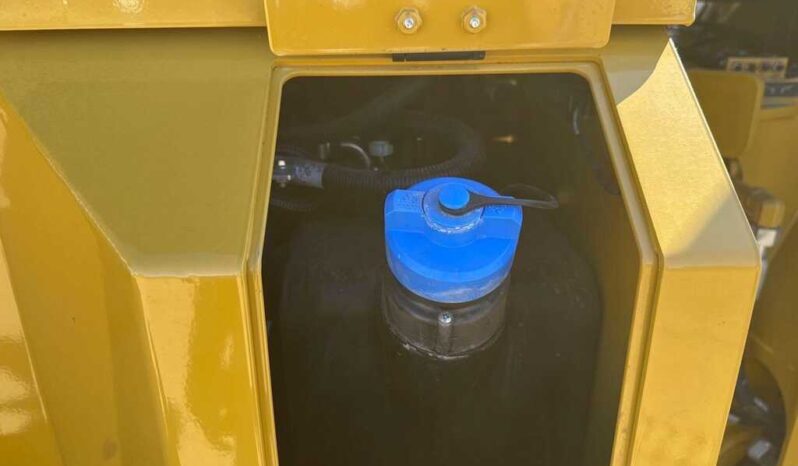

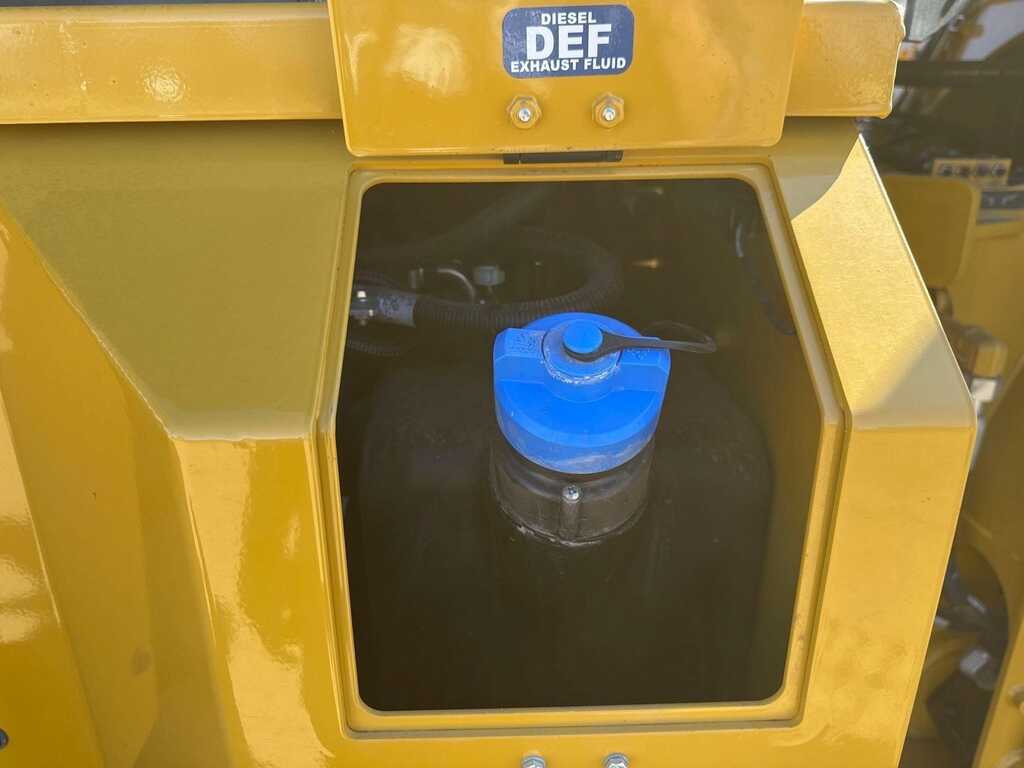

DEF Tank: 5 gal
Transmission
Type: 4-Speed Auto

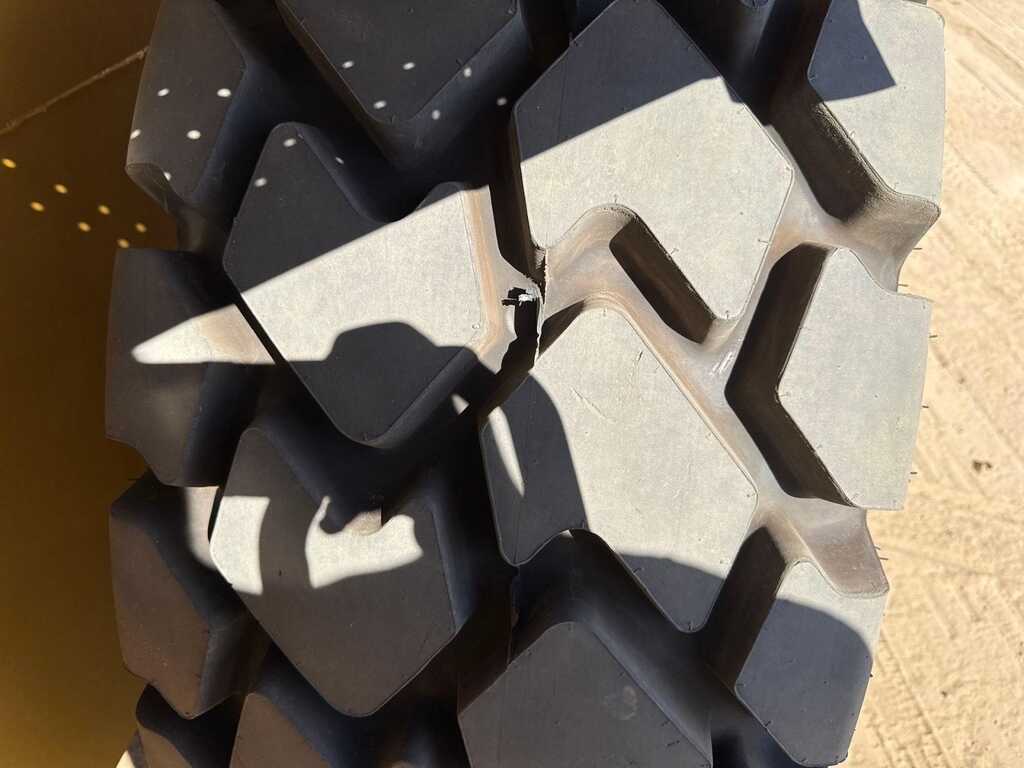

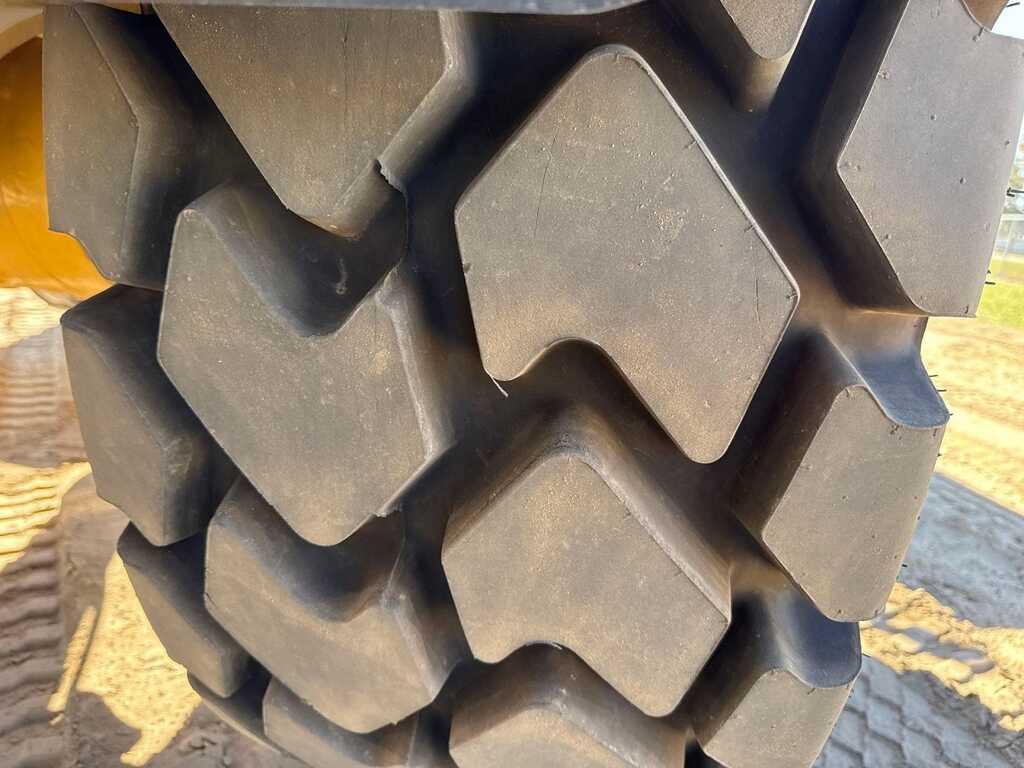

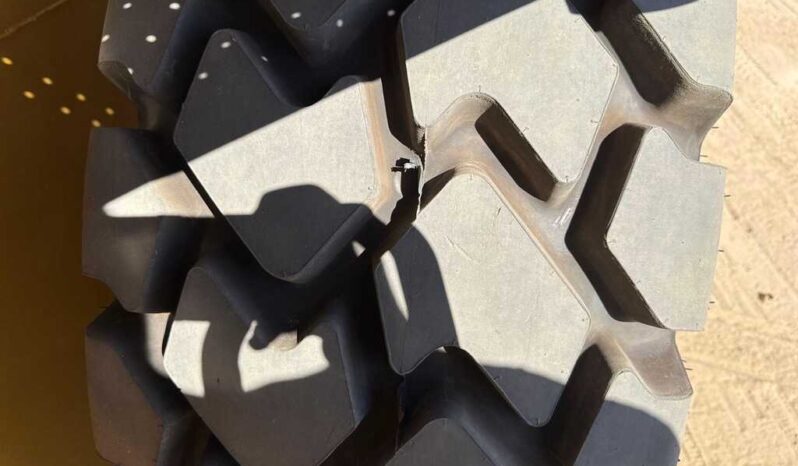

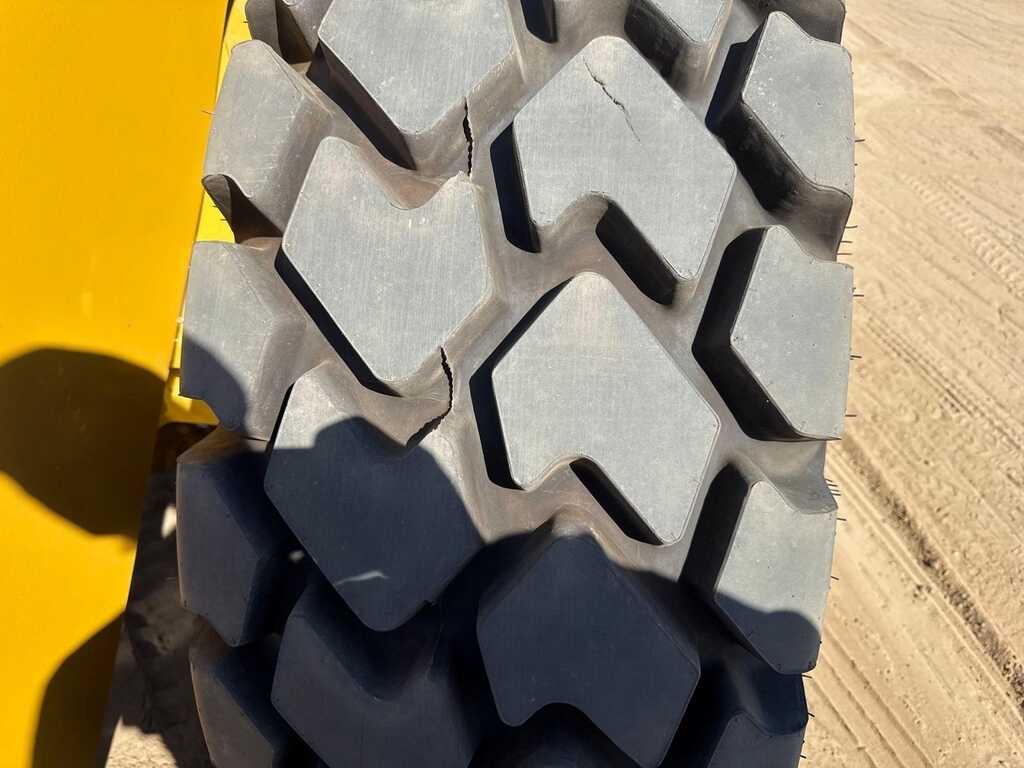

Tires

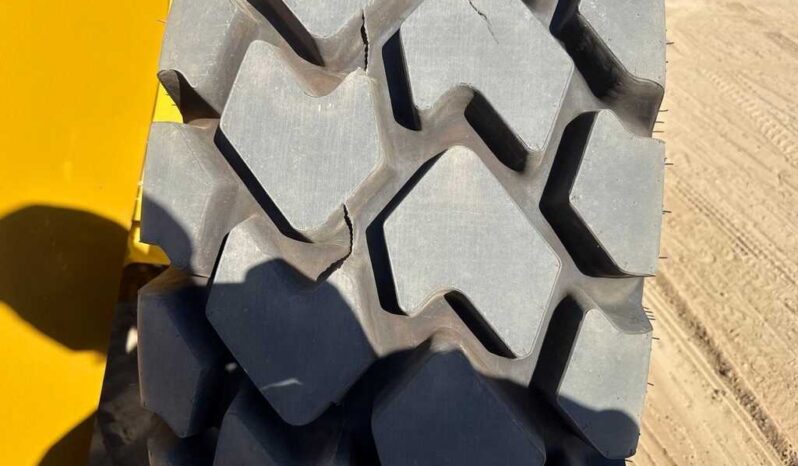

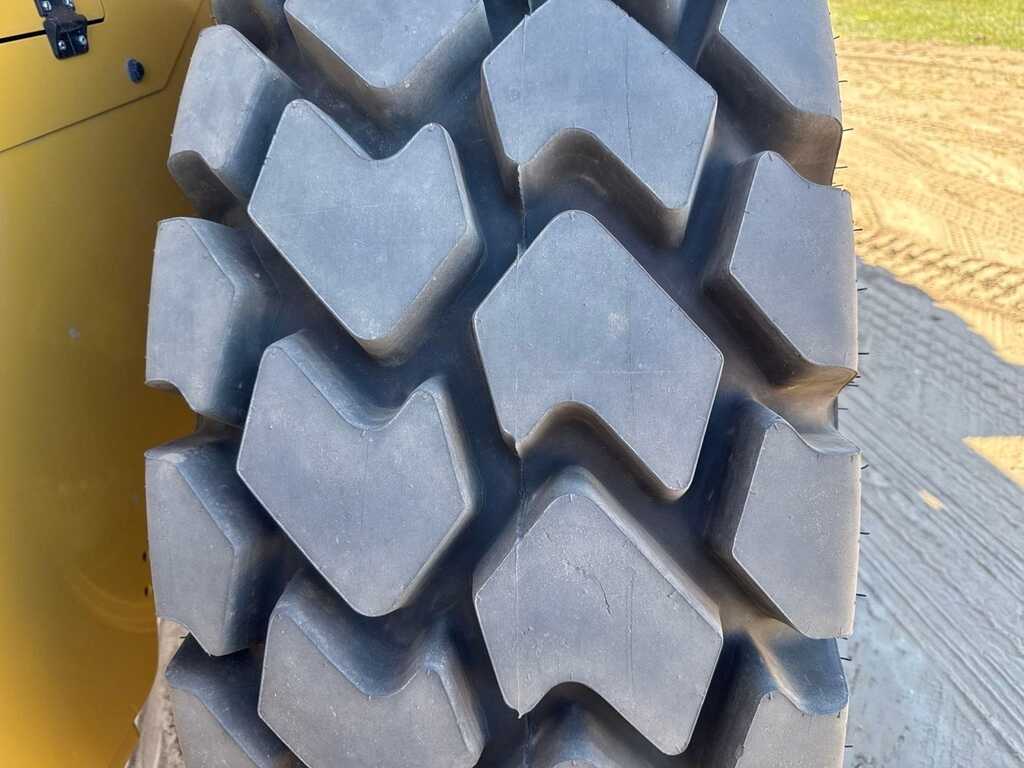

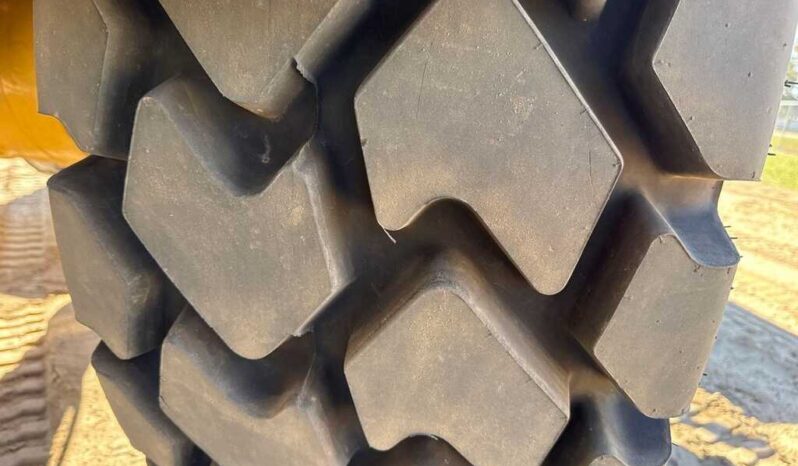

Standard: 20.5 R25 Radial (L-3)
Optional: 20.5 R25 (L-2/L-5), 17.5 R25, 550/65 R25 Radial, Agricultural/Skidder options available
Axles
Front: Fixed, locking differential (standard)
Rear: Oscillating ±11°, open differential (standard), limited slip (optional)

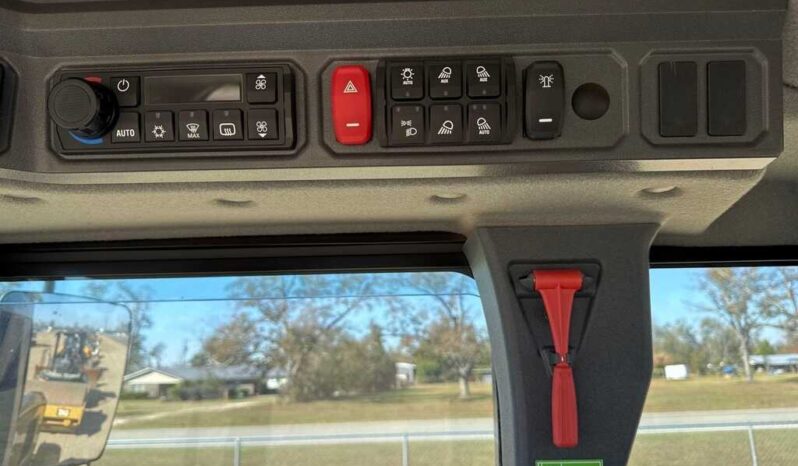

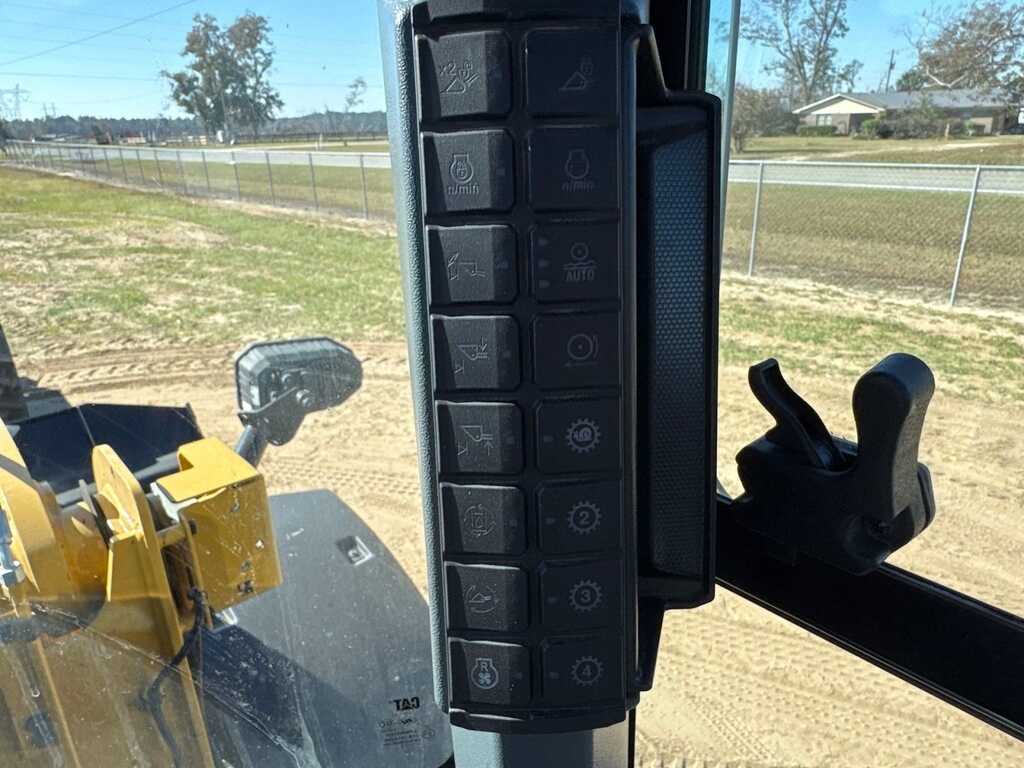

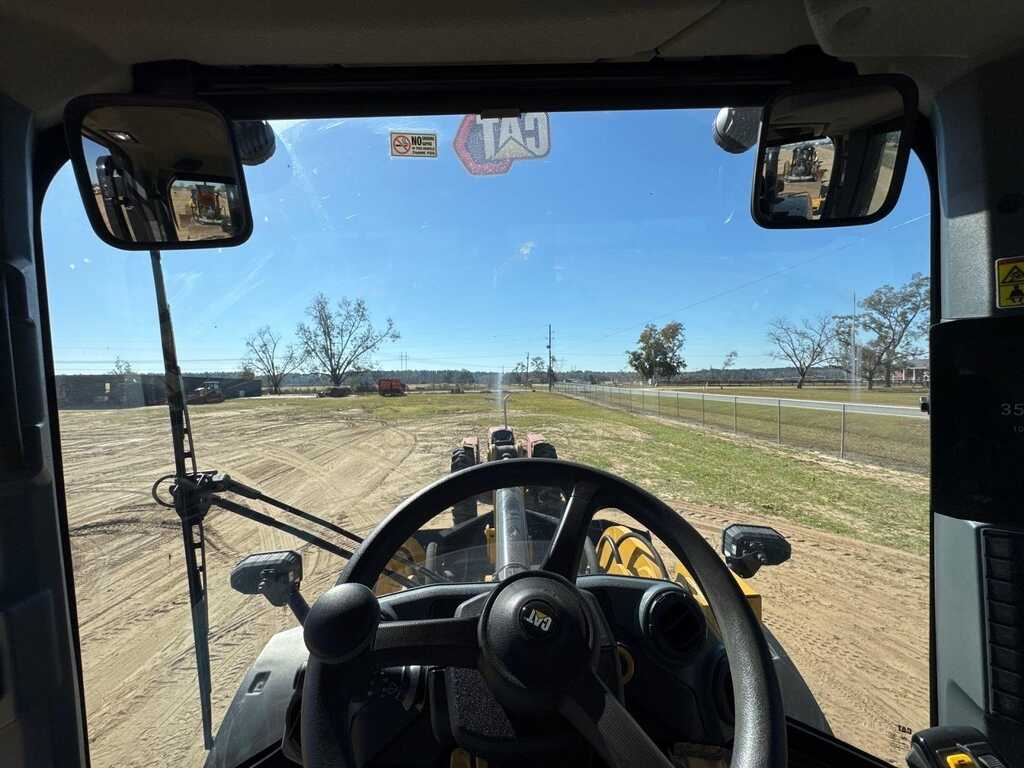

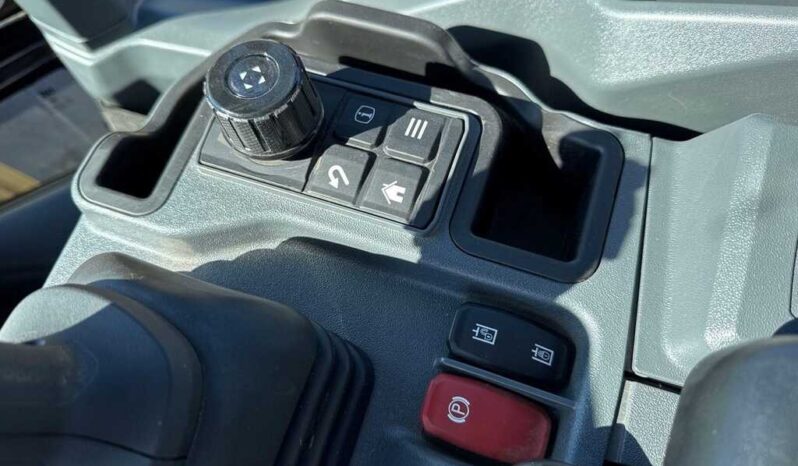

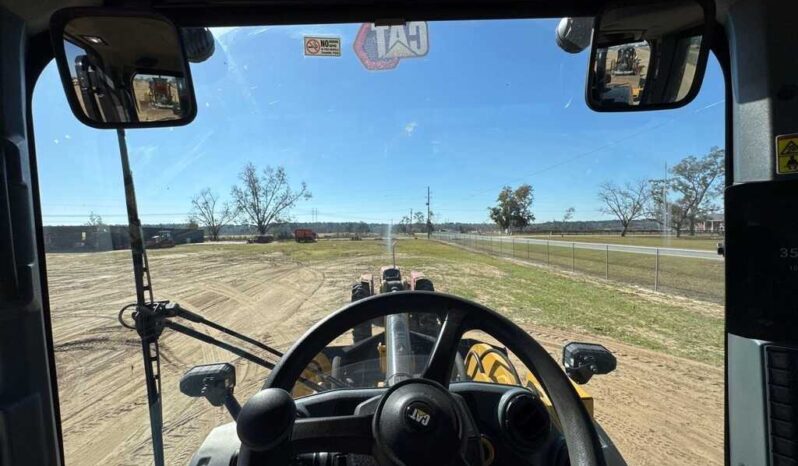

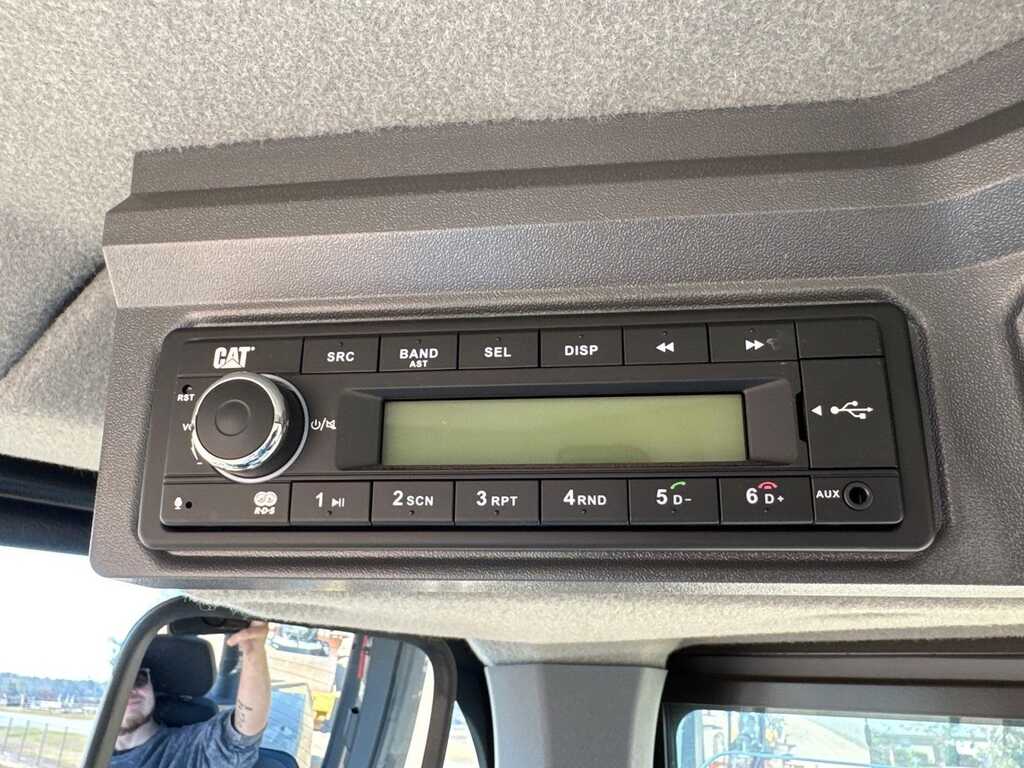

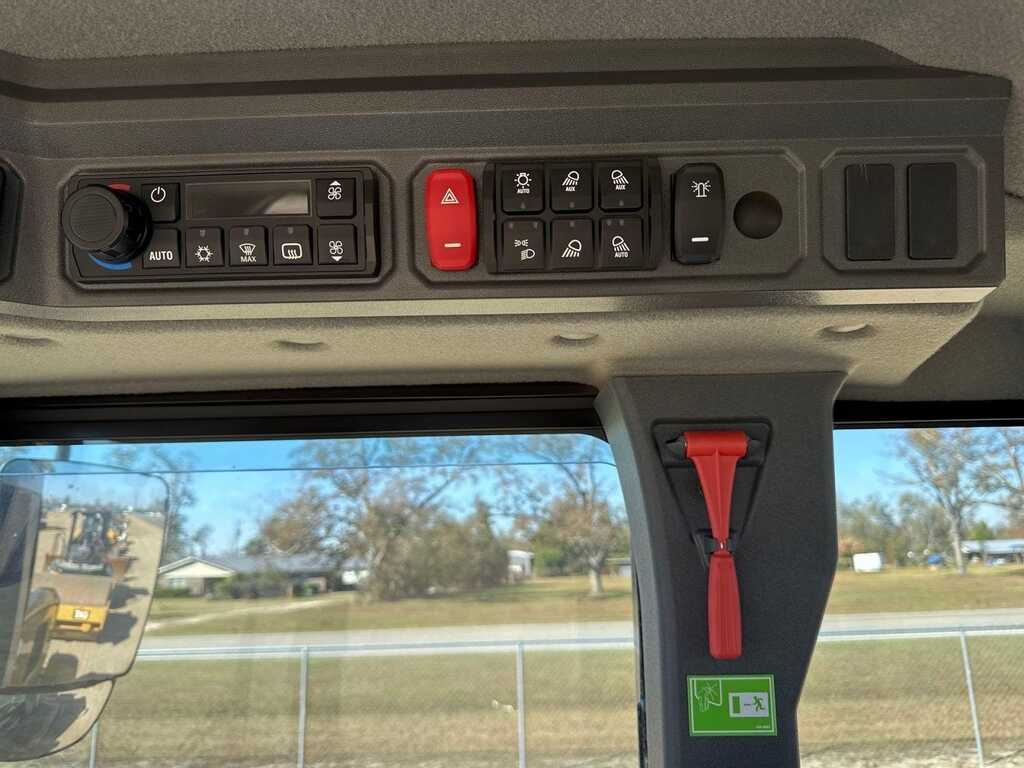

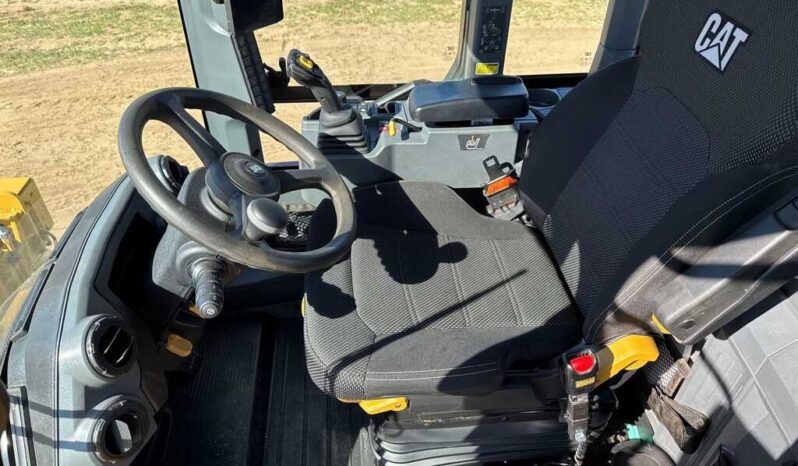

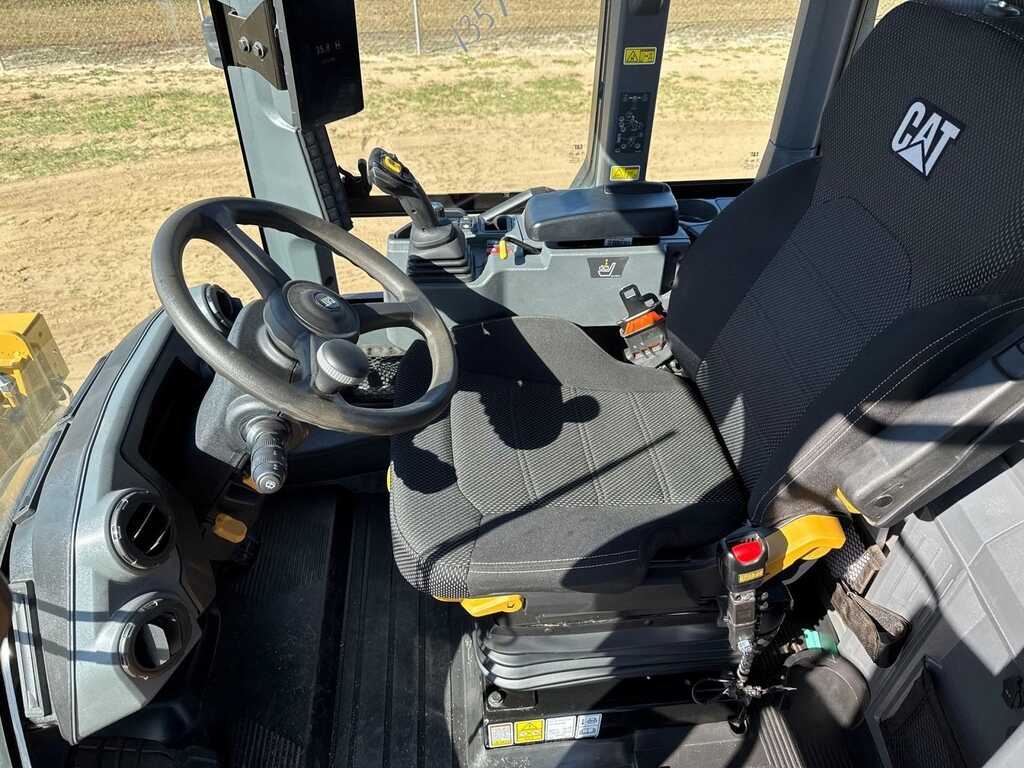

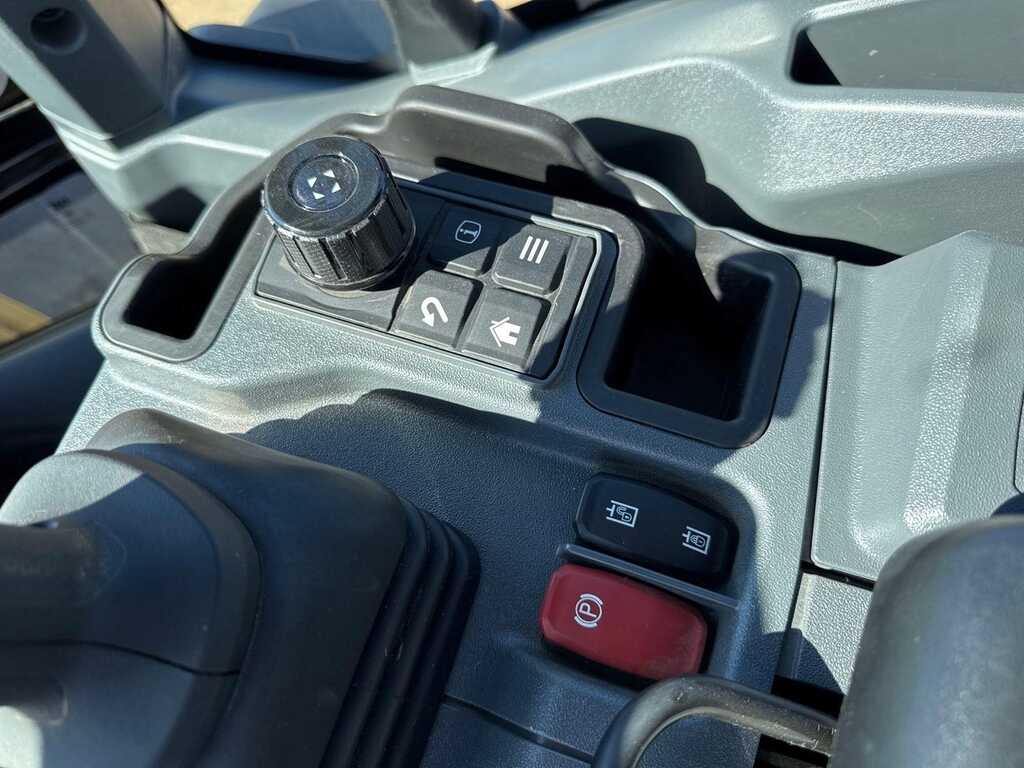

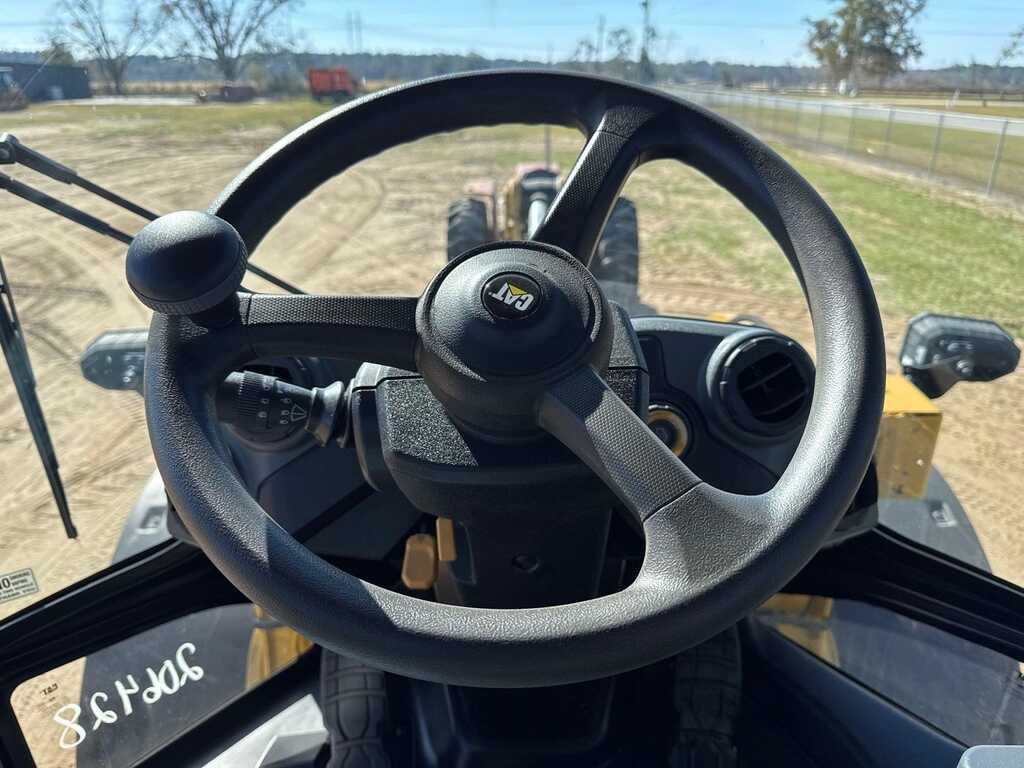

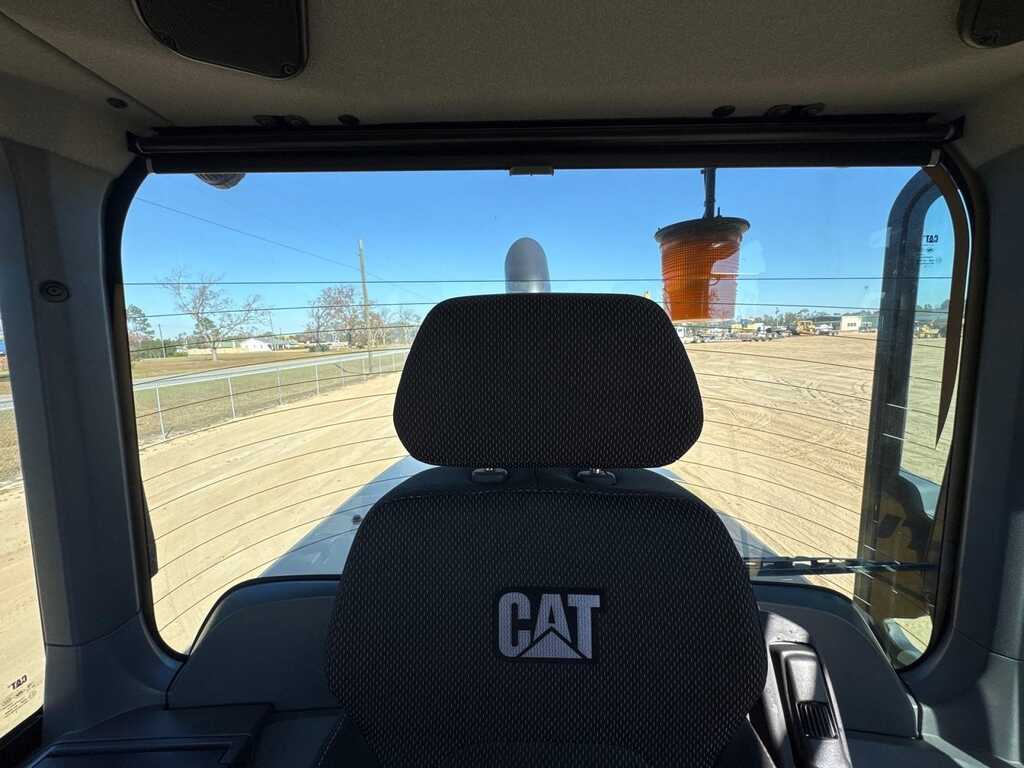

Cab
ROPS: ISO 3471:2008
FOPS: ISO 3449:2005 Level II
Air Conditioning
System uses R134a refrigerant (1.9 kg / 4.2 lb, CO₂ equivalent: 2.99 tons)
